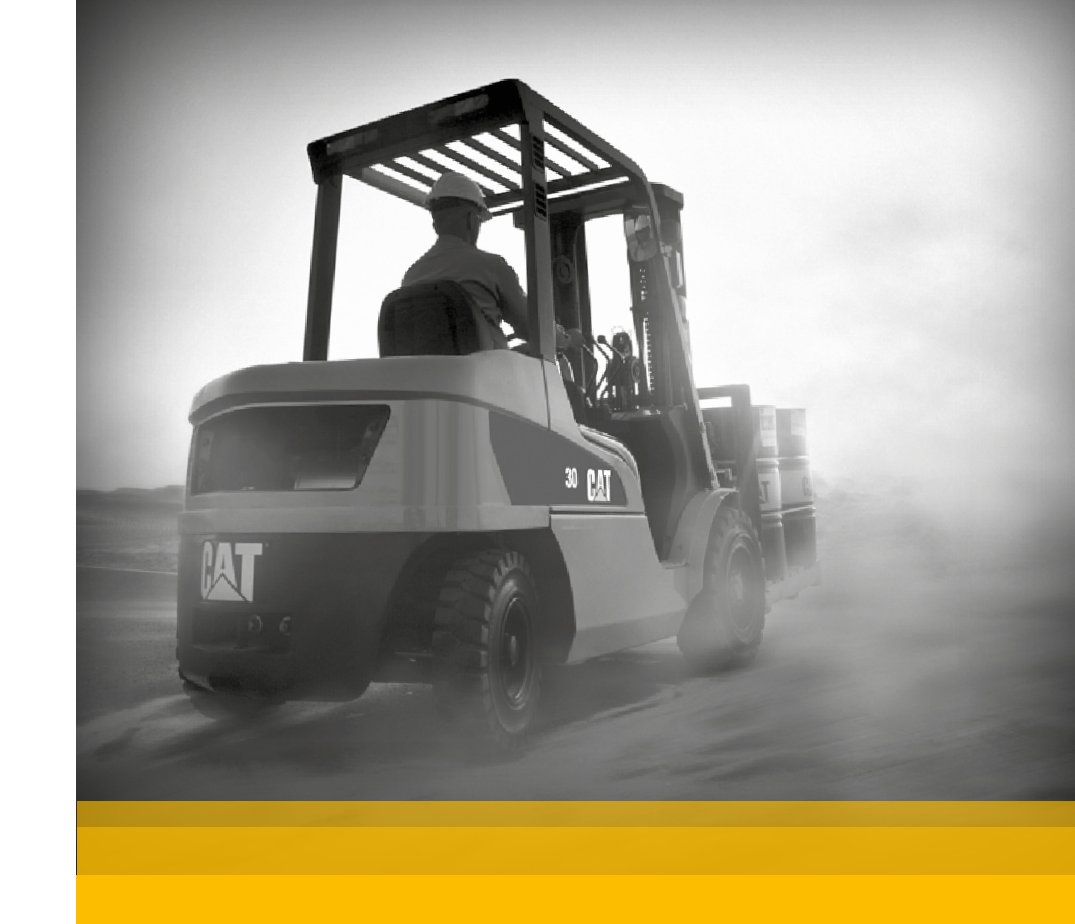

Caterpillar GP20NT Specs

Quick-reference specifications for the Caterpillar GP20NT forklift, taken from the manufacturer’s spec sheet.

Performance 10 specs

Load capacity	2000 kg
Load centre distance	500 mm
Minimum distance between centers of rotation	715 mm
Travel speed, with/without load	19 / 19.5 km/h
Lifting speed, with/without load	0.63 / 0.66 m/s
Lowering speed, with/without load	0.50 / 0.50 m/s
Rated drawbar pull, with/without load	18100/17600 N
Gradeability, with/without load	36/60 %
Rated speed to DIN 70 020	2250 rpm
Noise level, value at operator’s ear (EN 12053)	78 dB (A)

Wheelbase	1600 mm
Tyre dimensions, front	7.00-12-12PR
Tyre dimensions, rear	6.00-9-8PR
Track width (centre of tyres), front	960 mm
Track width (centre of tyres), rear	980 mm
Height with mast lowered	1995 mm
Free lift	140 mm
Lift height	3000 mm
Overall height with mast raised	4055 mm
Height to top of overhead guard	2074 mm
Seat height	938 mm
Tow coupling height	310 mm
Overall length	3405 mm
Length to fork face (includes fork thickness)	2485 mm
Overall width	1150 / 1640 mm
Fork dimensions (thickness, width, length)	45x100x920 mm
Fork carriage to DIN 15 173 A/B/no	2A
Fork carriage width	1000 mm
Working aisle width with 1000 x1200 mm pallets, crosswise	3855 mm
Working aisle width with 800 x1200 mm pallets, crosswise	3655 mm
Turning circle radius	2200 mm

Fuel consumption according to VDI 60 cycle	2.55 / – l/h / kg/h

Service brakes (mechanical/hydraulic/electric/pneumatic)	Hydraulic
Operating pressure for attachments	180 bar
Oil flow for attachments	75 l/min
