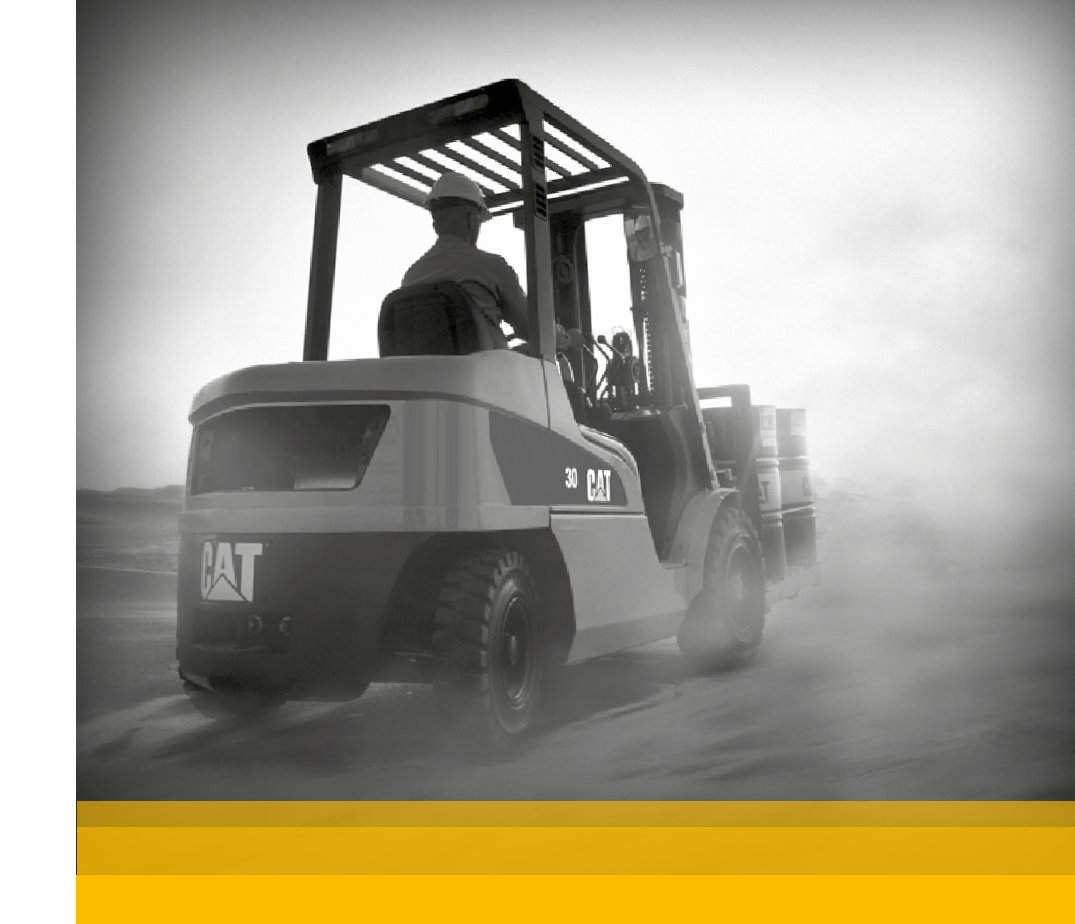

Caterpillar GP35NT Specs
Quick-reference specifications for the Caterpillar GP35NT forklift, taken from the manufacturer’s spec sheet.
Performance 10 specs
| Load capacity – Q | 3500 kg |
|---|---|
| Load centre distance – c | 500 mm |
| Mast tilt, forwards/backwards – ∂/ß | 6 / 12 (6 / 12 °) |
| Travel speed, with/without load | 19 / 19.5 km/h |
| Lifting speed, with/without load | 0.39 / 0.45 m/s |
| Lowering speed, with/without load | 0.42 / 0.40 m/s |
| Rated drawbar pull, with/without load – N | 15300/15400 N |
| Service brakes | Hydraulic |
| Rated speed to DIN 70 020 – rpm | 2200 (2200 rpm) |
| Noise level, value at operator’s ear (EN 12053) – dB(A) | 79 dB (A) |
Dimensions 10 specs
| Wheelbase – y | 1700 mm |
|---|---|
| Tyre dimensions, front | 250-15 -12PR |
| Tyre dimensions, rear | 6.50-10-12PR |
| Track width (centre of tyres), front – b | 1060 mm |
| Height with mast lowered – h | 2130 mm |
| Overall length – l | 3865 mm |
| Overall width – b1/b | 1290 / 1690 mm |
| Fork dimensions (thickness, width, length) – s,e,l | 45x122x1070 mm |
| Fork carriage to DIN 15 173 A/B/no | 3A |
| Turning circle radius – Wa | 2440 mm |
Power / Engine 1 spec
| Power source | Petrol/LPG |
|---|
Hydraulics / Fluids 2 specs
| Operating pressure for attachments – bar | 180 bar |
|---|---|
| Oil flow for attachments – l/min | 73 l/min |
