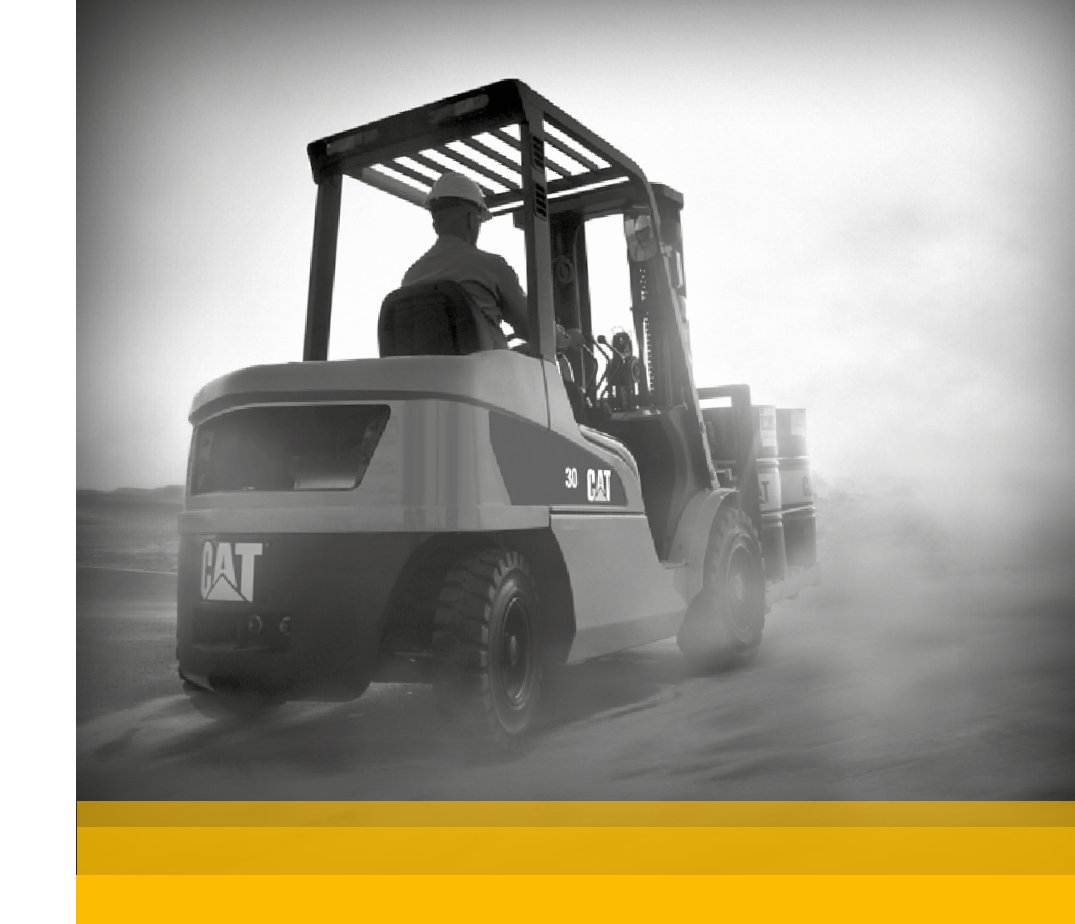

Caterpillar GP30NT Specs

Quick-reference specifications for the Caterpillar GP30NT forklift, taken from the manufacturer’s spec sheet.

Performance 11 specs

Load capacity	3000 kg
Load centre distance	500 mm
Mast tilt, forwards/backwards	6 / 12 °
Minimum distance between centers of rotation	780 mm
Travel speed, with/without load	19 / 19.5 km/h
Lifting speed, with/without load	0.50 / 0.53 m/s
Lowering speed, with/without load	0.53 / 0.50 m/s
Rated drawbar pull, with/without load	17500/17500 N
Gradeability, with/without load	25/44 %
Rated speed to DIN 70 020	2250 rpm
Noise level, value at operator’s ear (EN 12053)	78 dB (A)

Wheelbase	1700 mm
Tyre dimensions, front	28×9-15-12PR
Tyre dimensions, rear	6.50-10-10PR
Track width (centre of tyres), front	1060 mm
Track width (centre of tyres), rear	980 mm
Height with mast lowered	2015 mm
Free lift	145 mm
Lift height	3000 mm
Overall height with mast raised	4055 mm
Height to top of overhead guard	2093 mm
Seat height	988 mm
Tow coupling height	330 mm
Overall length	3805 mm
Length to fork face (includes fork thickness)	2735 mm
Overall width	1275/1710 mm
Fork dimensions (thickness, width, length)	45x122x1070 mm
Fork carriage to DIN 15 173 A/B/no	3A
Fork carriage width	1000 mm
Working aisle width with 1000 x1200 mm pallets, crosswise	4070 mm
Working aisle width with 800 x1200 mm pallets, crosswise	3870 mm
Turning circle radius	2380 mm

Fuel consumption according to VDI 60 cycle	3.40 / – l/h / kg/h

Service brakes (mechanical/hydraulic/electric/pneumatic)	Hydraulic
Operating pressure for attachments	180 bar
Oil flow for attachments	73 l/min
