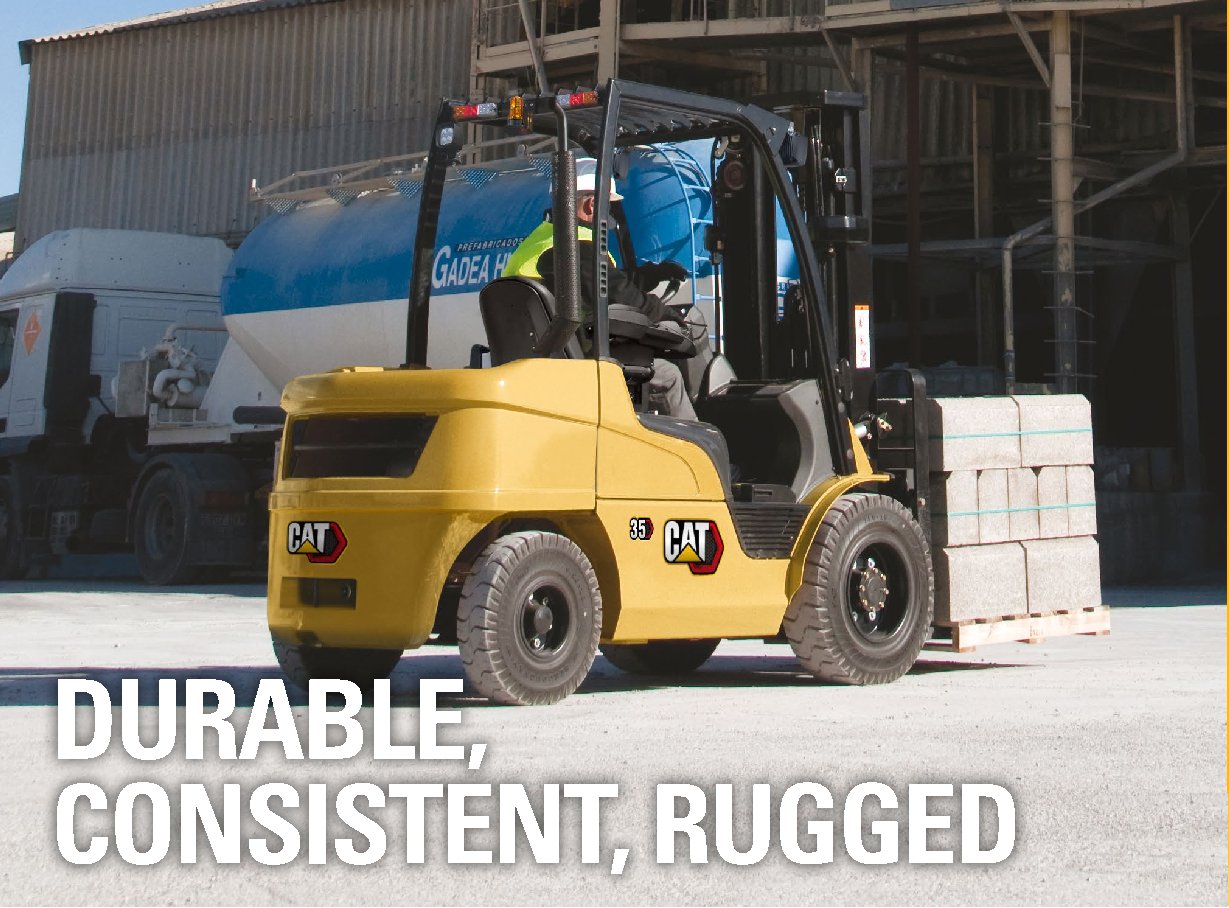

Caterpillar GP35N Specs
Quick-reference specifications for the Caterpillar GP35N forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 131.5 in3.34 m
- Operating Weight
- 10,340 lb4.69 t
- Gradeability (Full Load, 3-minute rating)
- 32%
Performance 10 specs
| Rated speed to DIN | 70 020 |
|---|---|
| Load Capacity | 7,000 lb (3.18 t) |
| Travel Speed (Loaded) | 10.9 mph (17.5 km/h) |
| Travel Speed (Empty) | 11.5 mph (18.5 km/h) |
| Lift Speed (Loaded) | 82.7 fpm (0.43 m/s) |
| Lift Speed (Empty) | 86.6 fpm (0.44 m/s) |
| Lowering Speed (Loaded) | 98.4 fpm (0.42 m/s) |
| Gradeability (Full Load, 3-minute rating) | 32% |
| Maximum Climbing Ability | 46% |
| Maximum Drawbar Pull | 5,310 lb |
Dimensions 12 specs
| Fork carriage to DIN | 15 173 A/B/no |
|---|---|
| Maximum Lift Height | 131.5 in (3.34 m) |
| Mast Lowered Height | 90.5 in (2.30 m) |
| Length to Fork Face | 110 in (2.79 m) |
| Overall Width (single drive tires) | 50.8 in (1.29 m) |
| Overall Width (dual drive tires) | 67.5 in (1.71 m) |
| Overhead Guard Height | 84.3 in (2.14 m) |
| Turning Radius (outside) | 96.1 in (2.44 m) |
| Wheelbase | 66.9 in (1.70 m) |
| Fork Spread (Outside) | 9.8 in (0.25 m) min – 39.4 in (1.00 m) max |
| Fork Size (Thickness x Width x Length) | 2 x 4.9 x 42 in (51 x 124 x 1,067 mm) |
| Tilt Range (forward/backward) | 6/10 degrees |
Weight 1 spec
| Operating Weight | 10,340 lb (4.69 t) |
|---|
Power / Engine 7 specs
| Engine Make/Model | GK25E |
|---|---|
| Number of Cylinders | 4 |
| Piston Displacement | 152 cu in (2.5 L) |
| Rated Horsepower @ rpm | 61 hp @ 2,700 rpm |
| Rated Torque @ rpm | 129 lb-ft @ 1,600 rpm |
| Fuel Tank Capacity | 2.5 L |
| Battery Voltage | 12 V |
Hydraulics / Fluids 1 spec
| Auxiliary Hydraulic Max Operating Pressure | 2,610 psi (180 bar) |
|---|
