Forklift · Crown

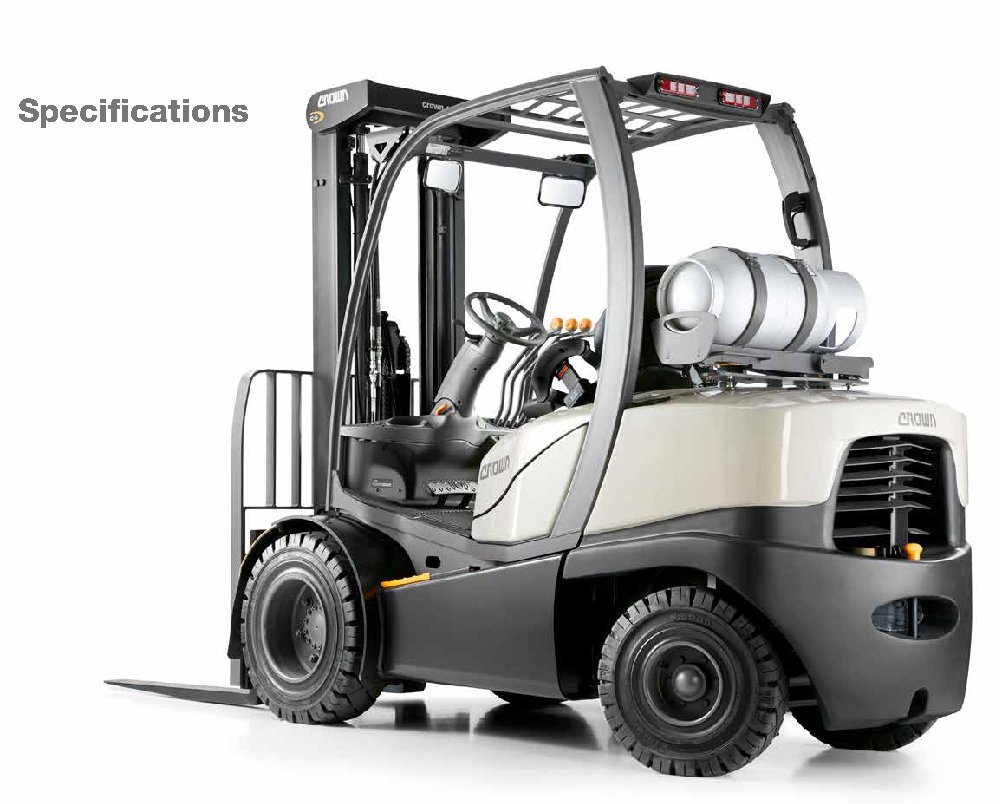

Crown C5 1055-50 Specs
Quick-reference specifications for the Crown C5 1055-50 forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 68 in (Min) to 112 in (Max)
- Gradeability – Maximum Empty/Loaded
- 33.7% / 25.2%
Performance 9 specs
| Mast Charts | C5 1050-40/50 and C5 1055-50 |
|---|---|
| TL TRUCKERS MAST (2-STAGE) | 68 |
| Load Capacity | 5,000 lb (2,270 kg) |
| Load Center | 24 in (610 mm) |
| Travel Speed (No Load) | 12.2 mph (19.6 km/h) |
| Lifting Speed (No Load) | 116 fpm (0.59 m/s) |
| Lowering Speed (No Load) | 91 fpm (0.47 m/s) |
| Gradeability – Maximum Empty/Loaded | 33.7% / 25.2% |
| Drawbar Pull – Maximum | 4,377 lb (1,985 kg) |
Dimensions 9 specs
| Max. Height | > 2° Tilt |
|---|---|
| Maximum Lift Height | 68 in (Min) to 112 in (Max) |
| Overall Length | 102.2 in (2,596 mm) |
| Overall Width | 47 in (1,195 mm) |
| Wheelbase | 64 in (1,626 mm) |
| Turning Radius (Outside) | 94.3 in (2.4 m) |
| ForkSize(TxWxL) | 1.8 x 4 x 42 in |
| Tilt Range (Forward/Backward) | 5 / 5 degrees |
| Construction Height | 2,210 mm |
Weight 2 specs
| Total Weight (Without Battery) | 9,715 lb (4,405 kg) |
|---|---|
| Weight Distribution Full Load (Front/Rear) | 13,150 lb / 1,570 lb (5,963 kg / 712 kg) |
Power / Engine 4 specs
| Engine Displacement | 2.5 L |
|---|---|
| Number of Cylinders | 4 |
| Rated Horsepower @ RPM (SAE) | 62 hp @ 2,600 rpm |
| Rated Torque @ RPM (SAE) | 207 lb-ft @ 1,500 rpm (280 Nm @ 1,500 rpm) |
Hydraulics / Fluids 4 specs
| Battery Voltage | 12 V |
|---|---|
| Max. Hydraulic Operating Pressure (Attachments) | 2,600 psi |
| Tire Size (Front) | 7.00-12 in |
| Tire Size (Rear) | 6.00-9 in |
