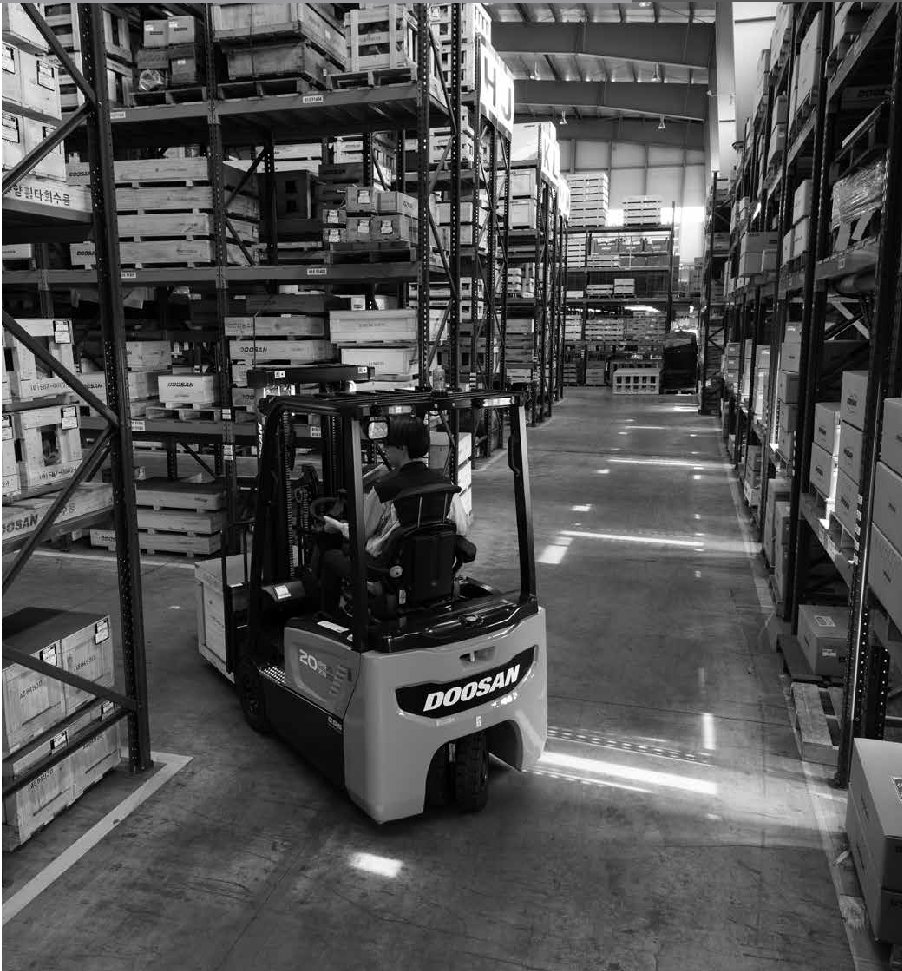

Doosan B20T-7 PLUS Specs

Quick-reference specifications for the Doosan B20T-7 PLUS forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Max. Gradeability, loaded: 24 %

Performance 11 specs

Load Capacity/rated load	2,000 kg
Tyres: pneumatic (P), solid (E), cushion (C)	E/C
Tilt of Mast/Fork carriage Forward/Backward	5/7 °
External Turning Radius	1,648 mm
Travel Speed, loaded/unloaded	17/17 km/h
Lift Speed, loaded/unloaded	400/600 mm/s
Lowering Speed, loaded/unloaded	500/450 mm/s
Max. Drawbar pull, loaded	12,749 N
Max. Gradeability, loaded	24 %
Service brake	foot-electric
Parking brake	auto-electric

Dimensions 17 specs

Load Center	500 mm
Load Distance, center of drive axle to fork	381 mm
Wheelbase	1,446 mm
Tyre size, Front	200X50-10
Tyre size, Rear	16X6-8
Height, Mast lowered	2,000 mm
Free Lift	135 mm
Lift Height	3,300 mm
Height, Mast Extended	4,350 mm
Height of Overhead Guard	2,010 mm
Height of Seat	919 mm
Overall Length	2,929 mm
Length to Forkface	2,029 mm
Fork Dimensions	40 X 100 X 900 mm
Fork carriage width	973 mm
Aisle width for pallets 1,000 X 1,200 crossways	3,354 mm
Aisle width for pallets 800 X 1,200 lengthways	3,479 mm

Weight 2 specs

Axle loading, loaded, front/rear	4,841/631 kg
Axle loading, unloaded, front/rear	1,623/1,849 kg

Power / Engine 7 specs

Service Weight (with min. weight of battery)	3,472 kg
Drive motor S2 60 min	6.0 X 2 kW
Lift motor rating at S3 15%	14 kW
Battery Compartment	638 X 992 X 698 mm
Battery voltage, nominal capacity K5	48/585 V/Ah
Battery weight	1,000 kg
Type of drive control	MOSFET Inverter

Hydraulics / Fluids 2 specs

Operating pressure for attachments – System	216 bar
Operating pressure for attachments – Attachment	140 bar
