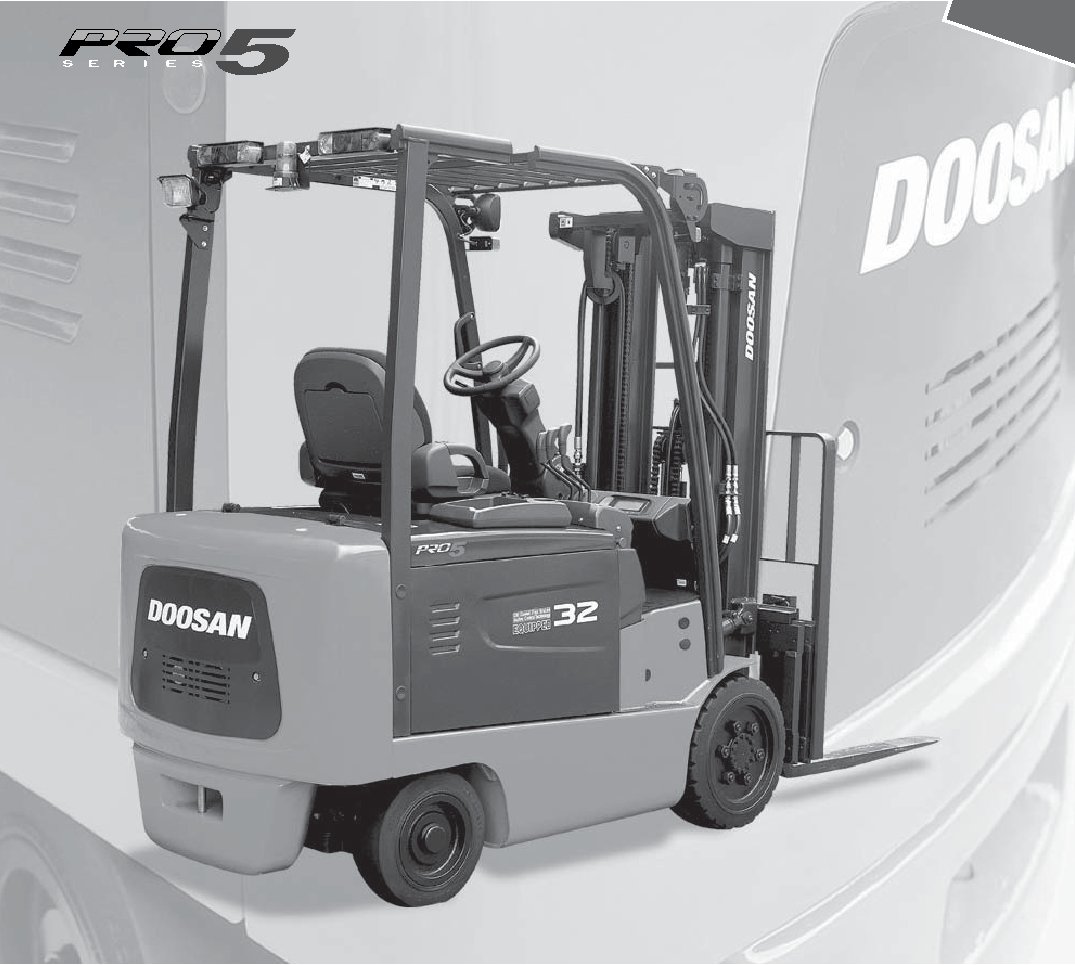

Doosan B25S-5 Specs
Quick-reference specifications for the Doosan B25S-5 forklift, taken from the manufacturer’s spec sheet.
Performance 8 specs
| Load Capacity at rated load center | 5000 lb (2500 kg) |
|---|---|
| Tilt of Mast – Forward/Backward | 6 / 10 deg |
| Turning Radius – Minimum outside | 81.1 in (2060 mm) |
| Max. drawbar pull – Loaded/Unloaded(5 min. rating) | 3505 / 2624 lb (1590 / 1190 kg) |
| Tires – Size, Front | 23 x 10 -12 |
| Tires – Size, Rear | 18 x 7 – 8 |
| Brakes – Service | foot / hydraulic |
| Brakes – Parking | hand / mech |
Dimensions 17 specs
| Load Center | 24 in (500 mm) |
|---|---|
| Tire Type | P, E |
| Max. Fork Height with STD 2-stage mast | 127 in (3230 mm) |
| Free Lift | 5.8 in (147 mm) |
| Forks – Length x Width x Thickness | 41.3 x 3.9 x 1.6 in (1050 x 100 x 40 mm) |
| Forks – Fork Spacing(Min x Max) | 10.8 x 40.7 in (275 x 1035 mm) |
| Length to Fork Face | 87.6 in (2226 mm) |
| Overall Width | 47.2 in (1200 mm) |
| Mast Lowered Height | 84.3 in (2140 mm) |
| Mast Extended Height | 176.4 in (4480 mm) |
| Overhead Guard Height | 87.4 in (2220 mm) |
| Seat Height | 43.2 in (1098 mm) |
| Load Moment Center | 15.9 in (405 mm) |
| Tread Width – Front | 37.4 in (950 mm) |
| Tread Width – Rear | 39.3 in (998 mm) |
| Ground Clearance – at the lowest point | 4.3 in (110 mm) |
| Ground Clearance – at center of wheelbase | 4.9 in (125 mm) |
Weight 1 spec
| Axle Load, Loaded – Front / Rear | 13181 / 2030 lb (5979 / 921 kg) |
|---|
Power / Engine 6 specs
| Power Type | AC electric |
|---|---|
| Total Service Weight with minimum weight of battery | 9700 lb (4400 kg) |
| Battery – Type | lead-acid |
| Battery compartment sizes(W x L x H) | 40.7 x 35.2 x 20.8 in (1036 x 896 x 530 mm) |
| Battery – Weight (Minimum) | 2690 lb (1220 kg) |
| Electric Motors – Drive motor(1 HR Rating) | 21.5 hp (16.0 kW) |
Hydraulics / Fluids 4 specs
| Electric Motors – Hydraulic motor(15% Duty) | 28.2 hp (21.0 kW) |
|---|---|
| Control Type – Drive and hydraulic | MOSFET Inverter |
| Relief Pressure – System | 2799 psi (193 bar) |
| Relief Pressure – Attachment | 2248 psi (155 bar) |
