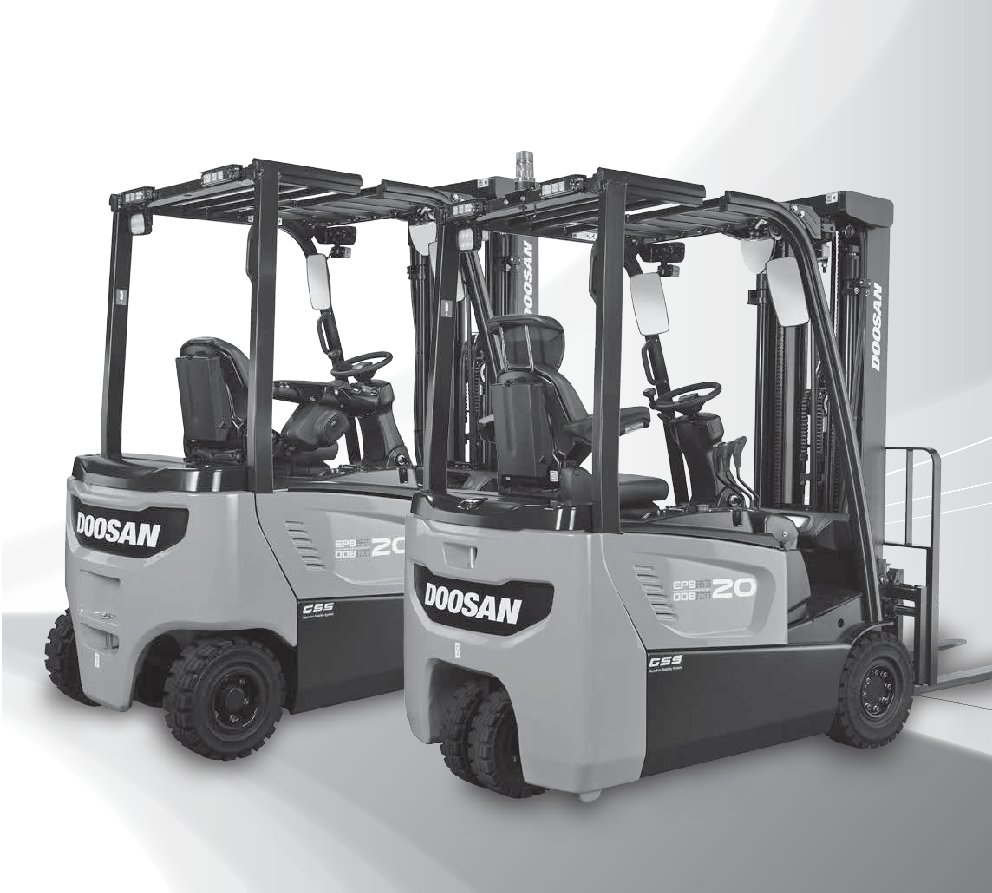

Doosan B20T-7 Specs
Quick-reference specifications for the Doosan B20T-7 forklift, taken from the manufacturer’s spec sheet.
- Max. Gradeability Loaded at 1.6 km/h
- 24 %
Performance 11 specs
| Load Capacity at rated load center | 2,000 kg |
|---|---|
| Load Center | 500 mm |
| Tilt of Mast Forward / Backward | 5/7 deg |
| Outer Turning Radius | 1,648 mm |
| Speed – Travel Loaded / Unloaded | 17/17 km/h |
| Lifting Loaded / Unloaded | 400/600 mm/s |
| Lowering Loaded / Unloaded | 500/450 mm/s |
| Max. Drawbar pull Loaded at 1.6 km/h | 1,300 kg |
| Max. Gradeability Loaded at 1.6 km/h | 24 % |
| Brakes – Service | hydraulic |
| Brakes – Parking | auto-electric |
Dimensions 14 specs
| Tire type | E/C |
|---|---|
| Max. Fork Height with STD 2-stage mast | 3,300 mm |
| Free Lift | 135 mm |
| Forks Thickness x Width x Length | 40 x 100 x 900 mm |
| Fork Spacing (min. x max.) | 240 x 905 mm |
| Overall Dimensions – Length to Fork Face | 2,029 mm |
| Overall Width | 1,119 mm |
| Mast Lowered Height | 2,150 mm |
| Mast Extended Height | 4,350 mm |
| Overhead Guard Height | 2,010 mm |
| Seat Height | 919 mm |
| Tires – Size – Front | 200×50-10 |
| Tires – Size – Rear | 16×6-8 |
| Ground clearance Loaded at lowest – at lowest | 86 mm |
Weight 2 specs
| Axle Load – Loaded, Front / Rear | 4,841/631 kg |
|---|---|
| Axle Load – Unloaded, Front / Rear | 1,623/1,849 kg |
Power / Engine 9 specs
| Power type | AC Electric |
|---|---|
| Total weight with min. weight of battery | 3,472 kg |
| Battery – Type | lead-acid |
| Battery – Voltage | 48 V |
| Battery – Capacity (5 Hours Rating) – Normal – BS type | 630 AH |
| Battery – Capacity (5 Hours Rating) – Normal – DIN type | 575 AH |
| Battery – Min. Weight | 1,000 kg |
| Electric Motors – Drive motor rating at S2 60 minute | 6.0 x 2 kW |
| Electric Motors – Lifting motor rating at S3 15% | 14 kW |
Hydraulics / Fluids 3 specs
| Control Type – Drive and Hydraulic type | MOSFET inverter |
|---|---|
| Relief Pressure – System | 21,600 kpa |
| Relief Pressure – Attachment | 14,000 kpa |
