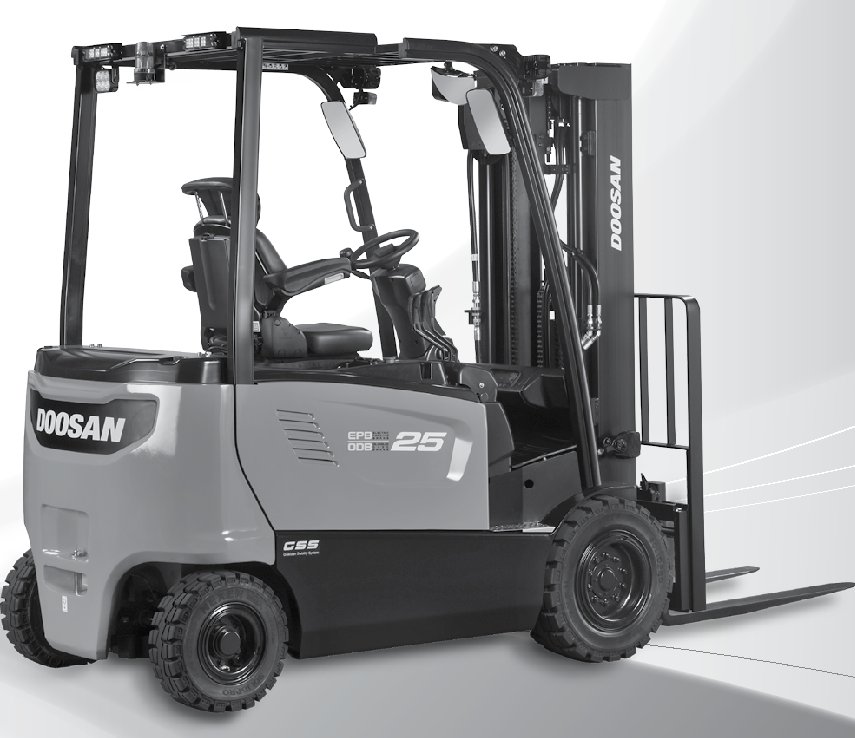

Doosan B25X-7 Specs
Quick-reference specifications for the Doosan B25X-7 forklift, taken from the manufacturer’s spec sheet.
- Capacity at rated load center
- 2,500 kg
- Gradeability at 1.6 km/h, loaded/unloaded
- 25/38 %
Performance 12 specs
| Capacity at rated load center | 2,500 kg |
|---|---|
| Tilt of mast forward / backward | 6/9 deg |
| Outer turning radius | 1,950 mm |
| Inner turning radius | 348 mm |
| Speed – travel loaded/unloaded | 16/18 km/h |
| Speed – lift loaded/unloaded | 480/600 mm/s |
| Speed – lowering loaded/unloaded | 490/460 mm/s |
| Max. drawbar pull at 1.6 km/h, loaded/unloaded | 1,768/1,675 kg.f |
| Gradeability at 1.6 km/h, loaded/unloaded | 25/38 % |
| Brakes – service brake | hydraulic |
| Brakes – parking brake | auto-electric |
| Drive axle brake type | ODB |
Dimensions 18 specs
| Load center distance | 500 mm |
|---|---|
| Tire type | P, E |
| Maximum fork height with STD 2-stage mast | 3,230 mm |
| Free lift | 147 mm |
| Forks thickness x width x length | 40x100x1,050 mm |
| Fork spacing (min x max) | 272 x 1,035 mm |
| Overall dimensions – length to forkface | 2,329 mm |
| Overall dimensions – overall width | 1,245 mm |
| Overall dimensions – mast lowered height | 2,160 mm |
| Overall dimensions – mast extended height | 3,990 mm |
| Overall dimensions – overhead guard height (Cabin) | 2,185 mm |
| Overall dimensions – seat height | 1,070 mm |
| Tires – size front | 23×10-12 |
| Tires – size rear | 18×7-8 |
| Tread width front | 998 mm |
| Tread width rear | 998 mm |
| Ground clearance loaded at the lowest point | 130 mm |
| Ground clearance at center of wheelbase | 140 mm |
Weight 2 specs
| Axle load loaded, front/rear | 6,275/848 kg |
|---|---|
| Axle load unloaded, front/rear | 2,284/2,339 kg |
Power / Engine 9 specs
| Power type | AC electric |
|---|---|
| Total weight with min. weight of battery | 4,623 kg |
| Battery type | DIN 43536 A |
| Battery voltage | 80 V |
| Battery capacity (5 hours rating) – normal | 500 AH |
| Battery capacity (5 hours rating) – max. | 620 AH |
| Battery min. weight | 1,560 kg |
| Electric motors – drive motor rating at S2 60 minutes | 10.0 x 2 kW |
| Electric motors – lifting motor rating at S3 15% | 21 kW |
Hydraulics / Fluids 3 specs
| Control type drive and hydraulic type | MOSFET inverter |
|---|---|
| Relief pressure system | 193 bar |
| Relief pressure attachment | 155 bar |
