Forklift · Doosan

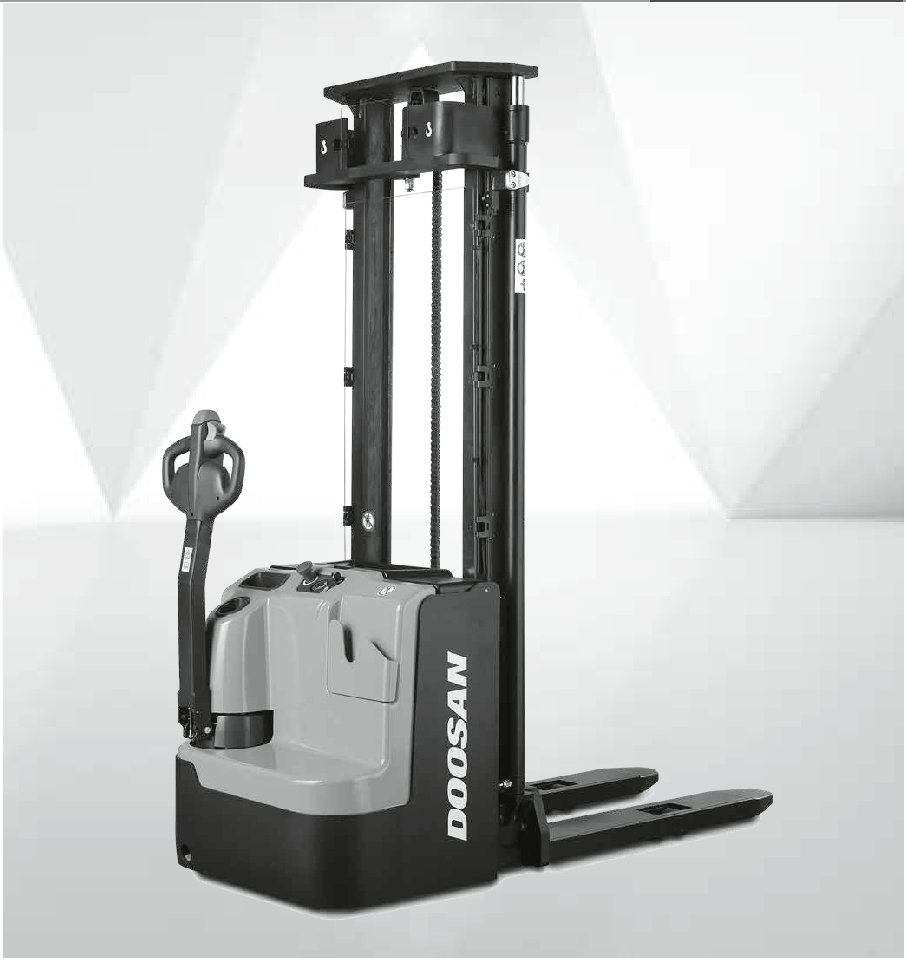

Doosan BSL16N Specs
Quick-reference specifications for the Doosan BSL16N forklift, taken from the manufacturer’s spec sheet.
- Max. Gradeability. loaded/unloaded
- 6/12 %
Performance 9 specs
| Drive | electric |
|---|---|
| Load Capacity/rated load center | 1,600 kg |
| Tyres | Polyurethane (PU) |
| External Turning Radius | 1,510 mm |
| Travel Speed. loaded/unloaded | 5.7/6.0 km/h |
| Lift Speed. loaded/unloaded | 0.13/0.20 m/s |
| Lowering Speed. loaded/unloaded | 0.20/0.14 m/s |
| Max. Gradeability. loaded/unloaded | 6/12 % |
| Service Brake | electromagnetic |
Dimensions 16 specs
| Load Center | 600 mm |
|---|---|
| Wheelbase | 1,293 mm |
| Tire size, front | ø230×70 mm |
| Tire size, rear | ø85×75 mm |
| Additional wheels (dimensions) | ø150×54 mm |
| Lowered Mast Height | 2,108 mm |
| Extended Mast Height | 5,080 mm |
| Height, lowered | 90 mm |
| Overall Length | 1,964 mm |
| Length to Forkface | 814 mm |
| Overall Width | 820 mm |
| Fork Dimensions | 60/180/1,150 mm |
| Distance over forks | 570/685 mm |
| Ground Clearance. center of wheelbase | 28 mm |
| Aisle width for pallets 1,000 x 1,200 lengthways | 2,406 mm |
| Aisle width for pallets 800 x 1,200 lengthways | 2,393 mm |
Weight 2 specs
| Axle loading, loaded, front/rear | 930/2,010 kg |
|---|---|
| Axle loading, unloaded, front/rear | 850/490 kg |
Power / Engine 5 specs
| Service Weight (incl. battery) | 1,340 kg |
|---|---|
| Drive motor rating S2 60 min | 1.3 kW |
| Lift motor rating at S3 4.5% | 3.2 kW |
| Battery voltage, nominal capacity K5 | 24/300 V/Ah |
| Battery weight | 230 kg |
