Forklift · Doosan

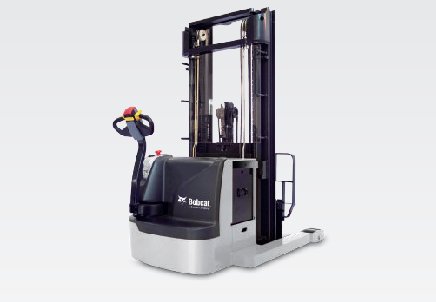

Doosan BWP17S-7 Specs
Quick-reference specifications for the Doosan BWP17S-7 forklift, taken from the manufacturer’s spec sheet.
- Capacity
- 3300 lb1500 kg
Performance 6 specs
| Capacity | 3300 lb (1500 kg) |
|---|---|
| Load Center | 19.7 in (500 mm) |
| Service Brake | Electro-Magnetic |
| Reach Stroke | 19.7 in (500 mm) |
| Outside Turning Radius | 65.0 in (1650 mm) |
| Tilt Angle | 2°/5° |
Dimensions 11 specs
| Tire Type | Polyurethane |
|---|---|
| Tire Size (Front) | 10.0 x 3.0 in (250 x 70 mm) |
| Tire Size (Rear) | 5.0 x 3.2 in., 6.0 x 2.4 in (125 x 82 mm, 150 x 60 mm) |
| Mast Height Lowered | 84.4 in (2145 mm) |
| Mast Lift Height | 156.0 in (3962 mm) |
| Mast Height Extended | 211.6 in (5375 mm) |
| Wheelbase | 56.9 in (1445 mm) |
| Overall Length | 92.1 in (2340 mm) |
| Overall Width | 53.5 in (1360 mm) |
| Ground Clearance | 1.4 in (35 mm) |
| ForkSize(TxWxL) | 1.6 x 4.0 x 42.0 in (40 x 100 x 1070 mm) |
Power / Engine 3 specs
| Power Type | Electric |
|---|---|
| Battery Voltage Nominal Capacity | 24 V (560 Ah) |
| Battery Compartment Size | 30.7 x 13.1 x 24.4 in (780 x 335 x 620 mm) |
