Telehandler · Genie

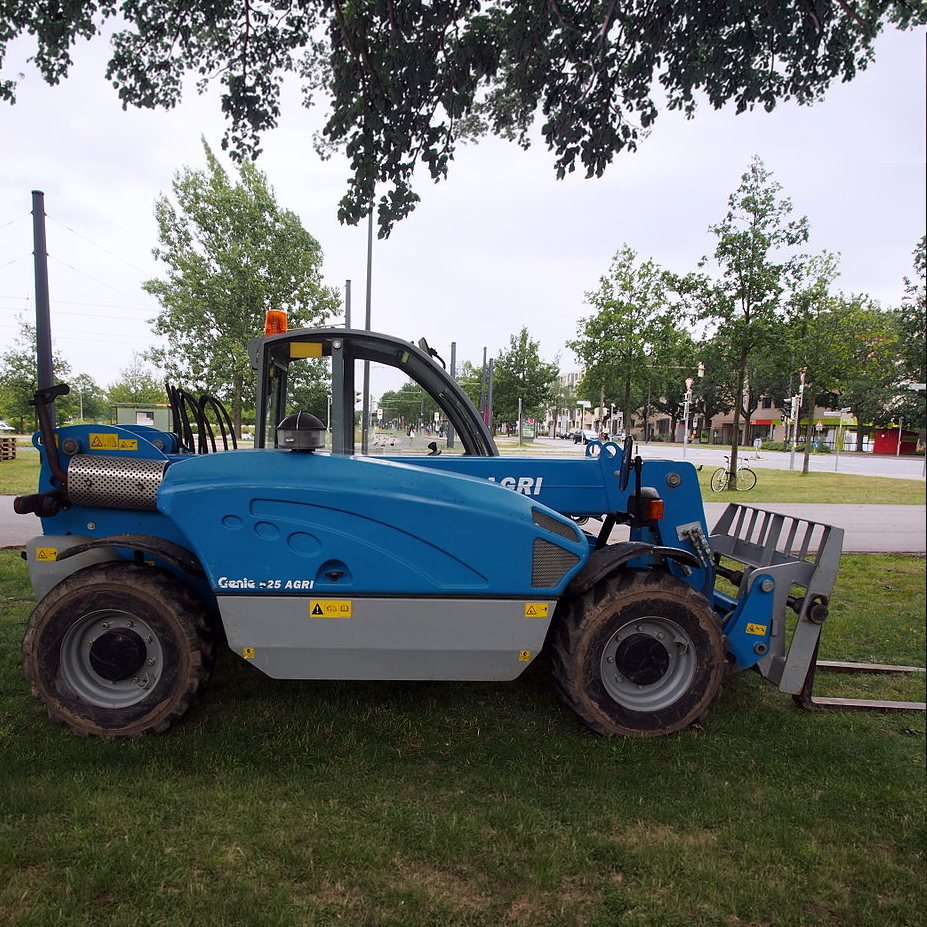

Genie AGRI-625 Specs

Quick-reference specifications for the Genie AGRI-625 telehandler, compiled from published specifications.

Maximum Lift Capacity: 5,511 lb2,500 kg
Maximum Lift Height: 19 ft5.79 m
Maximum Forward Reach: 11 ft3.35 m
Operating Weight with Forks: 9,810 lb4,450 kg

Performance 11 specs

Maximum Lift Capacity	5,511 lb (2,500 kg)
Lift Capacity at Maximum Height	4,409 lb (2,000 kg)
Lift Capacity at Maximum Reach	1,984 lb (900 kg)
Maximum Lift Height	19 ft (5.79 m)
Maximum Forward Reach	11 ft (3.35 m)
Reach at Maximum Height	2 ft (0.6 m)
Maximum Speed Forward	24 km/h
Maximum Speed Reverse	5 km/h
Max Slope Uphill (fwd/reverse)	36°/42°
Towing Capacity at Dynamometer (max load)	4,230 kg
Towing Capacity at Dynamometer (with forks)	3,100 kg

Dimensions 12 specs

Overall Height	6 ft 4 in (1.92 m)
Height at Steering Wheel	4 ft 1 in (1.25 m)
Overall Width	5 ft 11 in (1.81 m)
Inside Cab Width	2 ft 6 in (0.75 m)
Track	4 ft 11 in (1.5 m)
Wheelbase	7 ft 7 in (2.32 m)
Length at Fork-Holder Plate	12 ft 7 in (3.84 m)
Overall Length	5.04 m
Ground Clearance	1 ft 1 in (0.33 m)
Ground Clearance (axle)	0.25 m
Internal Steering Radius	1.7 m
External Steering Radius	3.35 m

Weight 1 spec

Operating Weight with Forks	9,810 lb (4,450 kg)

Power / Engine 3 specs

Engine Power	74 hp (55.4 kW)
Fuel Tank Capacity	13 gal (49 L)
Hydraulic Tank Capacity	14 gal (65 L)

Hydraulics / Fluids 8 specs

Hydrostatic Transmission Pump Displacement	56 cc/rev
Hydrostatic Transmission Motor Displacement	80 cc/rev
Boom Functions Pump Displacement	34 cc/rev
Oil Tank Capacity at Gauge Level	65 liters
Anticavitation Valves Cracking Pressure	5 bar
Double Overcenter Safety Valve Cracking Pressure	350 bar
Max Relief Valve Cracking Pressure	170 bar
Anti-shock Valves Cracking Pressure	225 bar
