Telehandler · Genie

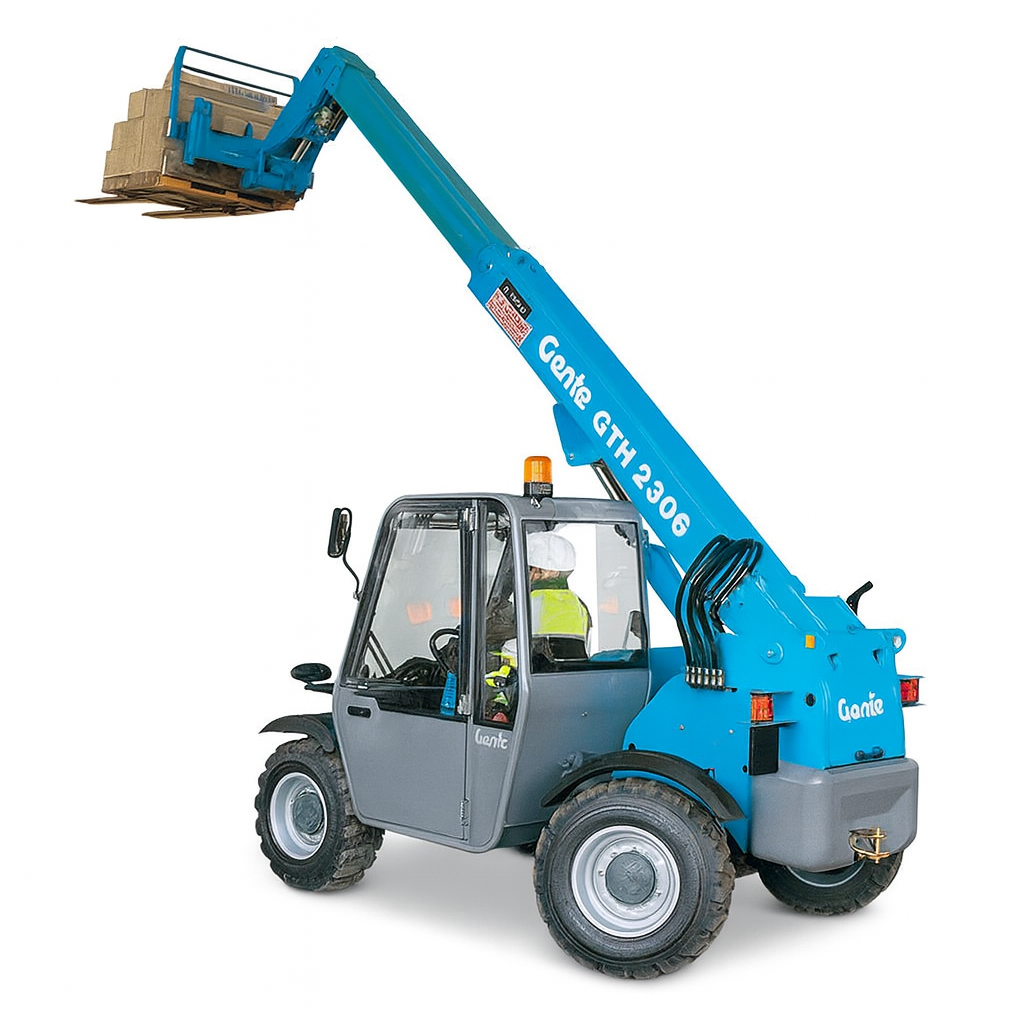

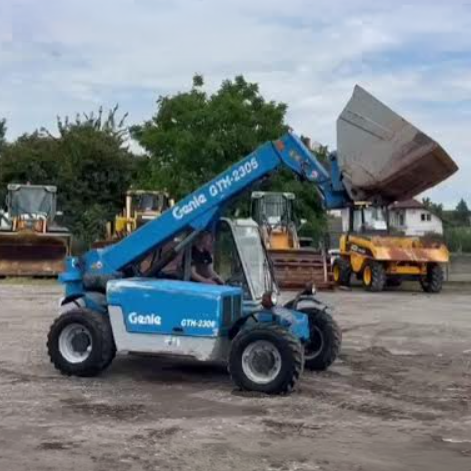

Genie GTH 2306 Specs

Quick-reference specifications for the Genie GTH 2306 telehandler, compiled from published specifications.

Max Lift Capacity: 5,500 lb2,500 kg
Capacity at Max Height: 4,400 lb1,996 kg
Operating Weight: 9,259 lb4.2 t

Performance 5 specs

Max Lift Capacity	5,500 lb (2,500 kg)
Max Lift Height	19 ft (5.79 m)
Max Forward Reach	11 ft (3.35 m)
Capacity at Max Height	4,400 lb (1,996 kg)
Capacity at Max Reach	1,900 lb (862 kg)

Dimensions 2 specs

Width	5.91 ft (1.80 m)
Height (Stowed)	6.30 ft (1.92 m)

Weight 1 spec

Operating Weight	9,259 lb (4.2 t)

Power / Engine 1 spec

Engine Power	63 hp (47 kW)
