Scissor Lift · Genie

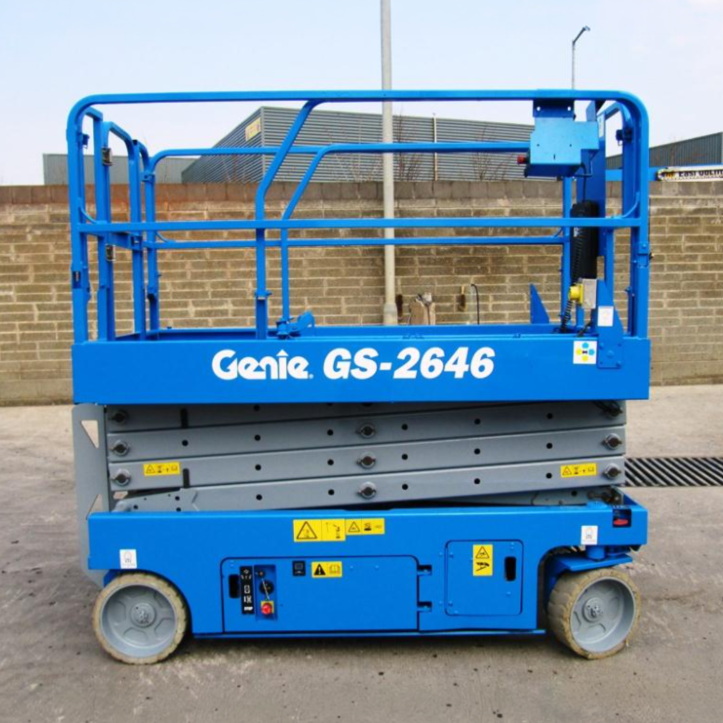

Genie GS-2646 AV35 Specs
Quick-reference specifications for the Genie GS-2646 AV35 scissor lift, compiled from published specifications.
- Lift Capacity
- 900 lb408 kg
- Working Height
- 32 ft 6 in9.91 m
- Gradeability
- 25%
Performance 6 specs
| Working Height | 32 ft 6 in (9.91 m) |
|---|---|
| Lift Capacity | 900 lb (408 kg) |
| Gradeability | 25% |
| Outside Turning Radius | 7 ft 6 in (2.29 m) |
| Inside Turning Radius | 0 ft (0 m) |
| Drive Speed – Raised | 0.5 mph (0.8 km/h) |
Dimensions 5 specs
| Machine Length | 8 ft 9 in (2.67 m) |
|---|---|
| Machine Width (with protective padding) | 4 ft 8 in (1.42 m) |
| Max Platform Height | 26 ft (7.92 m) |
| Platform Length | 7 ft 5 in (2.26 m) |
| Powered Extension Deck | 60 in (1.52 m) |
Weight 1 spec
| Machine Weight | 5,225 lb (2,370 kg) |
|---|
