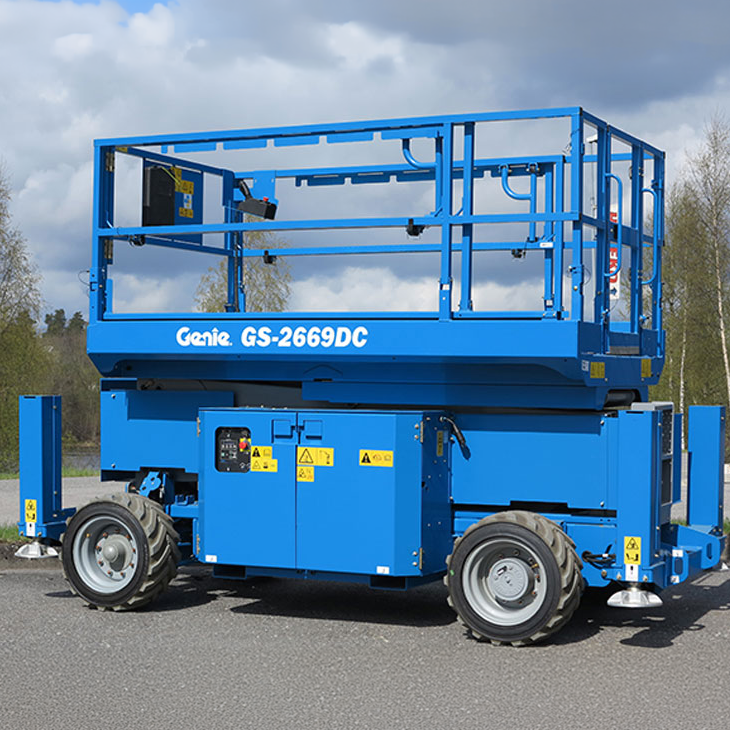

Genie GS-2669DC Specs

Quick-reference specifications for the Genie GS-2669DC scissor lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Lift capacity: 1,500 lb680 kg
Platform height max.: 26 ft 2 in8 m
Working height max.: 32 ft 2 in10 m
Weight: 7,946 lb3,604 kg

Performance 12 specs

Working height max.	32 ft 2 in (10 m)
Lift capacity	1,500 lb (680 kg)
Lift capacity – extension deck extended	300 lb (136 kg)
Drive speed – stowed	4.5 mph (7.2 km/h)
Drive speed – raised	0.3 mph (0.5 km/h)
Gradeability – stowed	35 %
Turning radius – inside/outside	83 in / 181.2 in (2.11 m / 4.6 m)
Lifting speed – raise/lower	34 / 31 sec
Tires – Non-marking, rough terrain	12 × 26 in (30 × 66 cm)
Sound Pressure level (ground workstation)	70 dBA
Sound Pressure level (platform workstation)	79 dBA
Vibrations	< 8 ft 2 in/s² (< 2.5 m/s²)

Dimensions 16 specs

Platform height max.	26 ft 2 in (8 m)
Platform height – stowed	4 ft 10 in (1.47 m)
Platform length – outside	9 ft 2 in (2.79 m)
Platform length – outside, extended	14 ft 2 in (4.32 m)
Slide-out platform extension deck – length	5 ft (1.52 m)
Platform width – outside	5 ft 3 in (1.60 m)
Toeboard height	6 in (15 cm)
Height – stowed (folding rails)	8 ft 6 in (2.59 m)
Height – stowed (rails lowered)	6 ft 3.5 in (1.92 m)
Length machine – stowed	10 ft 3 in (3.12 m)
Length machine – stowed, extended	14 ft 9.5 in (4.5 m)
Length machine – with outriggers	12 ft 4 in (3.76 m)
Width	5 ft 9 in (1.75 m)
Wheelbase	7 ft 6 in (2.29 m)
Ground clearance (center)	9.5 in (24 cm)
Max. platform drive height	26 ft 2 in (8 m)

Weight 5 specs

Weight	7,946 lb (3,604 kg)
Weight with outriggers	8,796 lb (3,990 kg)
Tire load max.	3,334 lb (1,512 kg)
Tire contact pressure	83.3 psi (575 kPa)
Occupied floor pressure	184 psf (8.83 kPa)

Hydraulics / Fluids 1 spec

Hydraulic tank capacity	18 gal (68.1 L)
