Scissor Lift · Genie

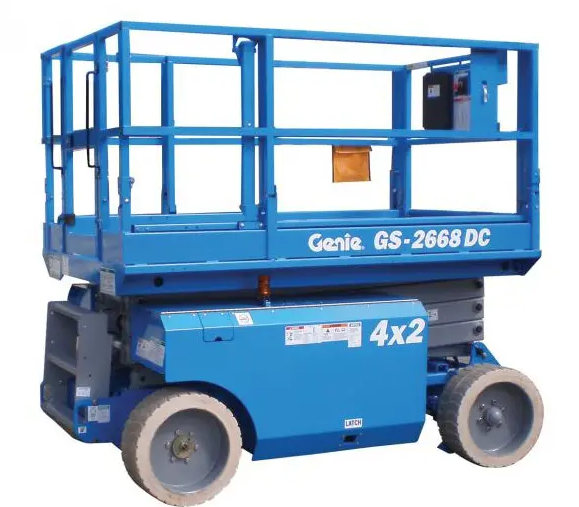

Genie GS-2668DC Specs
Quick-reference specifications for the Genie GS-2668DC scissor lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 1,250 lb567 kg
- Platform height
- 26 ft7.92 m
- Working height maximum
- 32 ft9.92 m
- Gradeability – stowed
- 30%
Performance 9 specs
| Working height maximum | 32 ft (9.92 m) |
|---|---|
| Lift capacity | 1,250 lb (567 kg) |
| Extension deck capacity | 300 lb (136 kg) |
| Drive speed – stowed | 3.0 mph (4.8 km/h) |
| Drive speed – raised | 0.5 mph (0.8 km/h) |
| Gradeability – stowed | 30% |
| Turning radius – inside | 5 ft (1.52 m) |
| Turning radius – outside | 12 ft 1 in (3.68 m) |
| Raise/lower speed | 30/35 sec |
Dimensions 11 specs
| Platform height | 26 ft (7.92 m) |
|---|---|
| Platform height – stowed | 3 ft 10.75 in (1.19 m) |
| Platform length – outside | 8 ft 3 in (2.51 m) |
| Slide-out platform extension deck | 5 ft (1.52 m) |
| Platform width – outside | 5 ft 1 in (1.55 m) |
| Toeboard height | 6 in (.15 m) |
| Height – stowed | 7 ft 5.5 in (2.32 m) |
| Length – stowed | 8 ft 9 in (2.67 m) |
| Width | 5 ft 8 in (1.73 m) |
| Wheelbase | 6 ft 1 in (1.85 m) |
| Ground clearance – center | 8 in (.20 m) |
Hydraulics / Fluids 1 spec
| Hydraulic system capacity | 9.5 gal (36 L) |
|---|
