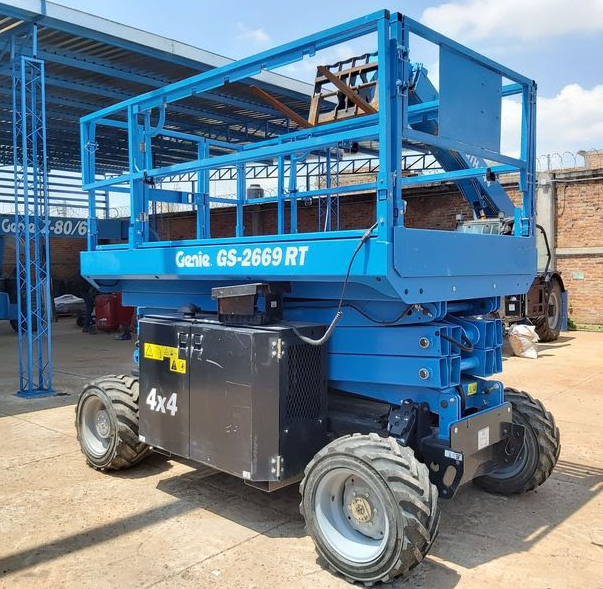

Genie GS-2669RT Specs

Quick-reference specifications for the Genie GS-2669RT scissor lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Lift capacity: 1,500 lb680 kg
Platform height max.: 26 ft 2 in8 m
Working height max.: 32 ft 2 in10 m
Weight: 7,149 lb3,243 kg

Performance 12 specs

Working height max.	32 ft 2 in (10 m)
Lift capacity	1,500 lb (680 kg)
Lift capacity – extension deck extended	300 lb (136 kg)
Drive speed – stowed	3.5 mph (5.6 km/h)
Drive speed – raised	0.3 mph (0.5 km/h)
Gradeability – stowed	40 %
Turning radius – inside/outside	83 in / 181.2 in (2.11 m / 4.6 m)
Lifting speed – raise/lower	34 / 31 sec
Tires – Foam-filled rough terrain	12 × 26 in (30 × 66 cm)
Sound Pressure level (ground workstation)	85 dBA
Sound Pressure level (platform workstation)	79 dBA
Vibrations	< 8 ft 2 in/s² (< 2.5 m/s²)

Dimensions 16 specs

Platform height max.	26 ft 2 in (8 m)
Platform height – stowed	4 ft 10 in (1.47 m)
Platform length – outside	9 ft 2 in (2.79 m)
Platform length – outside, extended	14 ft 2 in (4.32 m)
Slide-out platform extension deck – length	5 ft (1.52 m)
Platform width – outside	5 ft 3 in (1.60 m)
Toeboard height	6 in (15 cm)
Height – stowed (folding rails)	8 ft 6 in (2.59 m)
Height – stowed (rails lowered)	6 ft 3.5 in (1.92 m)
Length machine – stowed	10 ft 3 in (3.12 m)
Length machine – stowed, extended	14 ft 9 in (4.5 m)
Length machine – with outriggers	12 ft 4 in (3.76 m)
Width	5 ft 9 in (1.75 m)
Wheelbase	7 ft 6 in (2.29 m)
Ground clearance (center)	9.5 in (24 cm)
Max. platform drive height	26 ft 2 in (5.85 m)

Weight 5 specs

Weight	7,149 lb (3,243 kg)
Weight with outriggers	7,535 lb (3,629 kg)
Tire load max.	2,840 lb (1,288 kg)
Tire contact pressure – front, platform fully extended	70.7 psi (487 kPa)
Occupied floor pressure	170 psf (8.15 kPa)

Hydraulics / Fluids 2 specs

Fuel Tank	10 gal (37.9 L)
Hydraulic tank capacity	18 gal (68.1 L)
