Scissor Lift · Genie

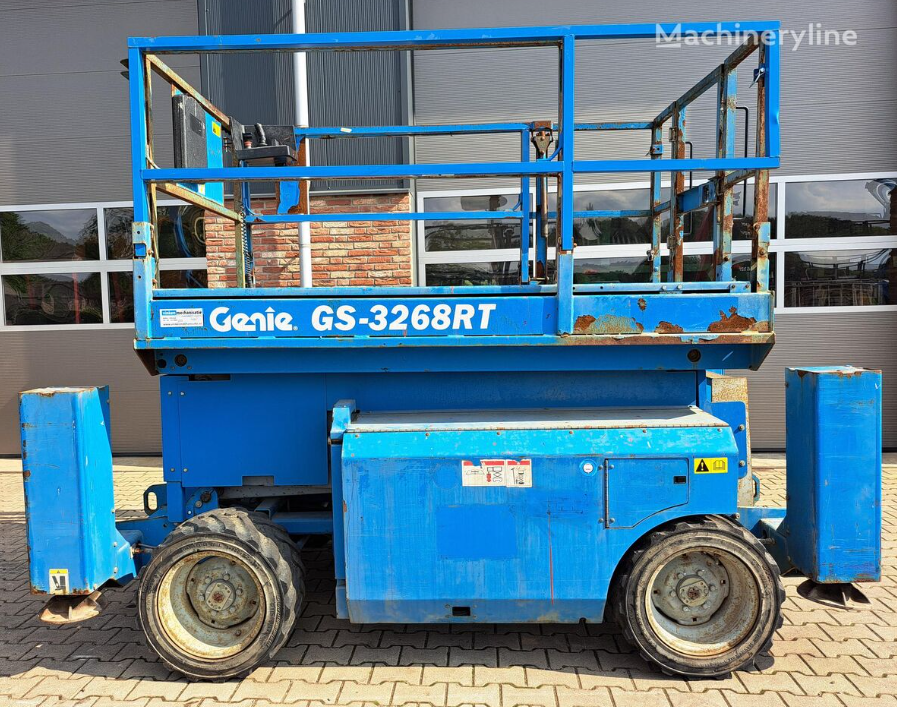

Genie GS-3268RT Specs
Quick-reference specifications for the Genie GS-3268RT scissor lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 1,000 lb454 kg
- Platform height maximum
- 32 ft9.75 m
- Working height maximum
- 38 ft11.75 m
- Gradeability – stowed
- 30%
Performance 10 specs
| Working height maximum | 38 ft (11.75 m) |
|---|---|
| Maximum platform occupancy | 4 |
| Lift capacity | 1,000 lb (454 kg) |
| Extension deck capacity | 300 lb (136 kg) |
| Drive speed – stowed | 3.8 mph (6.1 km/h) |
| Drive speed – raised | 0.5 mph (0.8 km/h) |
| Gradeability – stowed | 30% |
| Turning radius – inside | 5 ft (1.52 m) |
| Turning radius – outside | 12 ft 1 in (3.68 m) |
| Raise/lower speed | 40/37 sec |
Dimensions 11 specs
| Platform height maximum | 32 ft (9.75 m) |
|---|---|
| Platform height – stowed | 4 ft 3.75 in (1.31 m) |
| Platform length – outside | 8 ft 3 in (2.51 m) |
| Slide-out platform extension deck | 5 ft (1.52 m) |
| Platform width – outside | 5 ft 1 in (1.55 m) |
| Toeboard height | 6 in (.15 m) |
| Height – stowed | 8 ft 5 in (2.45 m) |
| Length – stowed | 8 ft 9 in (2.67 m) |
| Width | 5 ft 8 in (1.73 m) |
| Wheelbase | 6 ft 1 in (1.85 m) |
| Ground clearance – center | 7.5 in (.19 m) |
Hydraulics / Fluids 2 specs
| Fuel tank capacity | 15 gal (56.8 L) |
|---|---|
| Hydraulic system capacity | 16.5 gal (62.5 L) |
