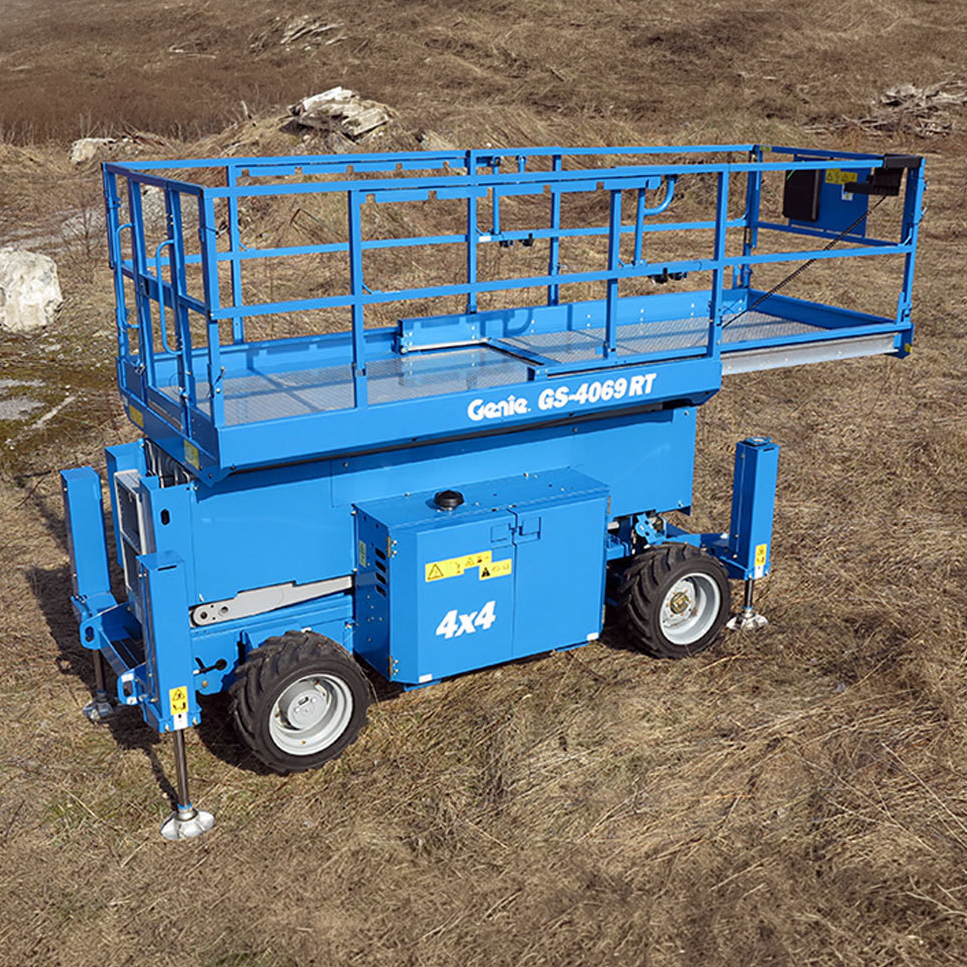

Genie GS-4069RT Specs

Quick-reference specifications for the Genie GS-4069RT scissor lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Lift capacity: 800 lb363 kg
Platform height max.: 40 ft 3 in12.3 m
Working height max.: 46 ft 3 in14.3 m
Weight: 10,392 lb4,714 kg

Performance 12 specs

Working height max.	46 ft 3 in (14.3 m)
Lift capacity	800 lb (363 kg)
Lift capacity – extension deck extended	300 lb (136 kg)
Drive speed – stowed	3.5 mph (5.6 km/h)
Drive speed – raised	0.3 mph (0.5 km/h)
Gradeability – stowed	35 %
Turning radius – inside/outside	83 in / 181.2 in (2.11 m / 4.6 m)
Lifting speed – raise/lower	61 / 28 sec
Tires – Foam-filled rough terrain	12 × 26 in (30 × 66 cm)
Sound Pressure level (ground workstation)	85 dBA
Sound Pressure level (platform workstation)	79 dBA
Vibrations	< 8 ft 2 in/s² (< 2.5 m/s²)

Dimensions 16 specs

Platform height max.	40 ft 3 in (12.3 m)
Platform height – stowed	5 ft 5 in (1.65 m)
Platform length – outside	9 ft 2 in (2.79 m)
Platform length – outside, extended	14 ft 2 in (4.32 m)
Slide-out platform extension deck – length	5 ft (1.52 m)
Platform width – outside	5 ft 3 in (1.60 m)
Toeboard height	6 in (15 cm)
Height – stowed (folding rails)	9 ft (2.74 m)
Height – stowed (rails lowered)	6 ft 10 in (2.08 m)
Length machine – stowed	10 ft 3 in (3.12 m)
Length machine – stowed, extended	14 ft 9 in (4.5 m)
Length machine – with outriggers	12 ft 4 in (3.76 m)
Width	5 ft 9 in (1.75 m)
Wheelbase	7 ft 6 in (2.29 m)
Ground clearance (center)	9.5 in (24 cm)
Max. platform drive height	40 ft 3 in (12.3 m)

Weight 5 specs

Weight	10,392 lb (4,714 kg)
Weight with outriggers	11,242 lb (5,100 kg)
Tire load max.	3,829 lb (1,737 kg)
Tire contact pressure – front, platform fully extended	95.3 psi (657 kPa)
Occupied floor pressure	215 psf (10.29 kPa)

Hydraulics / Fluids 2 specs

Fuel Tank	10 gal (37.9 L)
Hydraulic tank capacity	18 gal (68.1 L)
