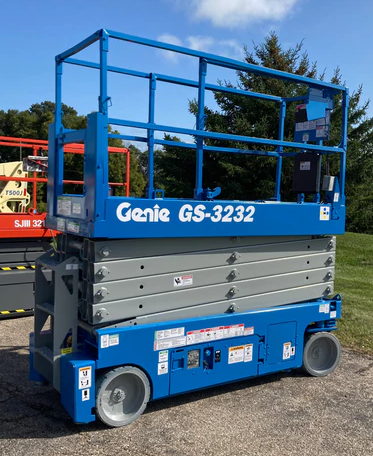

Genie GS-3232 Specs

Quick-reference specifications for the Genie GS-3232 scissor lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Lift capacity: 500 lb227 kg
Platform height max. – indoor: 32 ft 1 in9.78 m
Working height max. – indoor: 38 ft 1 in11.78 m
Weight: 5,367 lb2,434 kg

Performance 13 specs

Working height max. – indoor	38 ft 1 in (11.78 m)
Working height max. – outdoor	24 ft (7.49 m)
Lift capacity	500 lb (227 kg)
Lift capacity – extension deck extended	250 lb (113 kg)
Drive speed – stowed	2.0 mph (3.2 km/h)
Drive speed – raised	0.5 mph (0.8 km/h)
Gradeability – stowed	25 %
Turning radius – inside/outside	0 / 7 ft (0 / 2.13 m)
Lifting speed – raise/lower	58 / 32 sec
Tires – solid non-marking	15 × 5 in (38 × 13 cm)
Sound Pressure level (ground workstation)	< 70 dBA
Sound Pressure level (platform workstation)	< 70 dBA
Vibrations	< 2.5 m/s²

Dimensions 18 specs

Platform height max. – indoor	32 ft 1 in (9.78 m)
Platform height max. – outdoor	18 ft (5.49 m)
Platform height – stowed	4 ft 4 in (1.32 m)
Platform length – outside	7 ft 5 in (2.26 m)
Platform length – outside, extended	10 ft 5 in (3.18 m)
Slide-out platform extension deck – length	3 ft (0.91 m)
Platform width – outside	2 ft 8 in (0.81 m)
Guardrail height	3 ft 7 in (1.10 m)
Toeboard height	6 in (15 cm)
Height – stowed (folding rails)	8 ft (2.44 m)
Height – stowed (rails lowered)	6 ft 10 in (2.08 m)
Length machine – stowed	8 ft (2.44 m)
Length machine – stowed, extended	10 ft 11 in (3.33 m)
Width	2 ft 8 in (0.81 m)
Wheelbase	6 ft 1 in (1.85 m)
Ground clearance (center) – pothole guards	5 in (12 cm)
Ground clearance – pothole guards deployed	0.9 in (2.30 cm)
Max. platform drive height	32 ft 1 in (9.78 m)

Weight 4 specs

Weight	5,367 lb (2,434 kg)
Tire load max.	1,909 lb (866 kg)
Tire contact pressure	125 psi (864 kPa)
Occupied floor pressure	307 psf (14.72 kPa)

Hydraulics / Fluids 1 spec

Hydraulic tank capacity (E-Drive)	4 gal (15 L)
