Scissor Lift · Genie

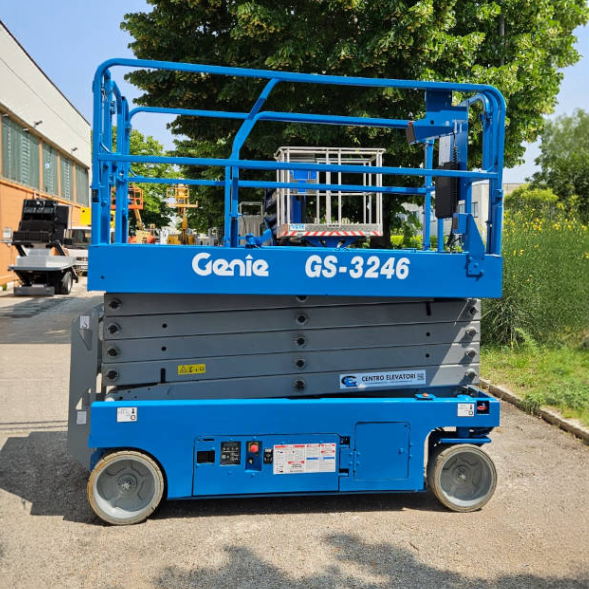

Genie GS-3246 Specs
Quick-reference specifications for the Genie GS-3246 scissor lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 700 lb318 kg
- Platform height max. – indoor
- 32 ft 1 in9.78 m
- Working height max. – indoor
- 38 ft 1 in11.78 m
- Weight
- 5,218 lb2,367 kg
Performance 13 specs
| Working height max. – indoor | 38 ft 1 in (11.78 m) |
|---|---|
| Working height max. – outdoor | 28 ft (8.71 m) |
| Lift capacity | 700 lb (318 kg) |
| Lift capacity – extension deck extended | 250 lb (113 kg) |
| Drive speed – stowed | 2.0 mph (3.2 km/h) |
| Drive speed – raised | 0.5 mph (0.8 km/h) |
| Gradeability – stowed | 25 % |
| Turning radius – inside/outside | 0 / 7 ft 6 in (0 / 2.29 m) |
| Lifting speed – raise/lower | 53 / 34 sec |
| Tires – solid non-marking | 15 × 5 in (38 × 13 cm) |
| Sound Pressure level (ground workstation) | < 70 dBA |
| Sound Pressure level (platform workstation) | < 70 dBA |
| Vibrations | < 2.5 m/s² |
Dimensions 18 specs
| Platform height max. – indoor | 32 ft 1 in (9.78 m) |
|---|---|
| Platform height max. – outdoor | 22 ft (6.71 m) |
| Platform height – stowed | 4 ft 4 in (1.32 m) |
| Platform length – outside | 7 ft 5 in (2.26 m) |
| Platform length – outside, extended | 10 ft 5 in (3.18 m) |
| Slide-out platform extension deck – length | 3 ft (0.91 m) |
| Platform width – outside | 3 ft 9.5 in (1.16 m) |
| Guardrail height | 3 ft 7 in (1.10 m) |
| Toeboard height | 6 in (15 cm) |
| Height – stowed (folding rails) | 8 ft (2.44 m) |
| Height – stowed (rails lowered) | 6 ft (1.83 m) |
| Length machine – stowed | 8 ft (2.44 m) |
| Length machine – stowed, extended | 10 ft 11 in (3.33 m) |
| Width | 3 ft 10 in (1.16 m) |
| Wheelbase | 6 ft 1 in (1.85 m) |
| Ground clearance (center) – pothole guards | 5 in (12 cm) |
| Ground clearance – pothole guards deployed | 0.9 in (2.30 cm) |
| Max. platform drive height | 32 ft 1 in (9.78 m) |
Weight 4 specs
| Weight | 5,218 lb (2,367 kg) |
|---|---|
| Tire load max. | 2,227 lb (1,010 kg) |
| Tire contact pressure | 146 psi (1,021 kPa) |
| Occupied floor pressure | 210 psf (10.23 kPa) |
Hydraulics / Fluids 1 spec
| Hydraulic tank capacity (E-Drive) | 4 gal (15 L) |
|---|
