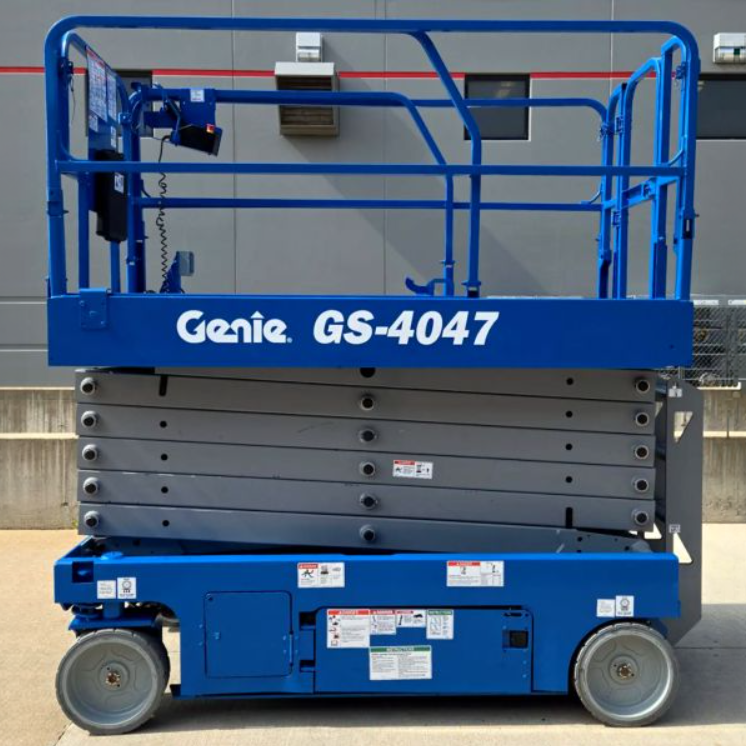

Genie GS-4047 Spec Sheet
Quick-reference specifications for the Genie GS-4047. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform height maximum w/load sense: 11.70 m
Lift capacity: 350 kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform height maximum w/load sense | 11.70 m |
|---|---|
| Platform height – stowed | 1.43 m |
| Lift capacity | 350 kg |
| Lift capacity – extension deck | 113 kg |
| Turning radius – outside | 2.3 m |
Dimensions
| Platform width – outside | 1.16 m |
|---|---|
| Guardrail height | 1.10 m |
| Toeboard height | 0.15 m |
| Height – stowed | folding rails 2.54 m |
| Width | 1.19 m |
| Wheelbase | 1.85 m |
| Ground clearance – centre | 0.10 m |
Weights & Electrical
| Power source 24 V DC, | 300 Ah |
|---|---|
| CE base machine | 3,221 kg |
| Standards Compliance EU Directives | 2006/42/EC – Machinery |
Powertrain & Systems
| Drive speed – stowed | 3.2 km/h |
|---|---|
| Drive speed – raised | 0.8 km/h |
Hydraulics & Capacities
| Hydraulic system capacity | 28.4 L |
|---|
