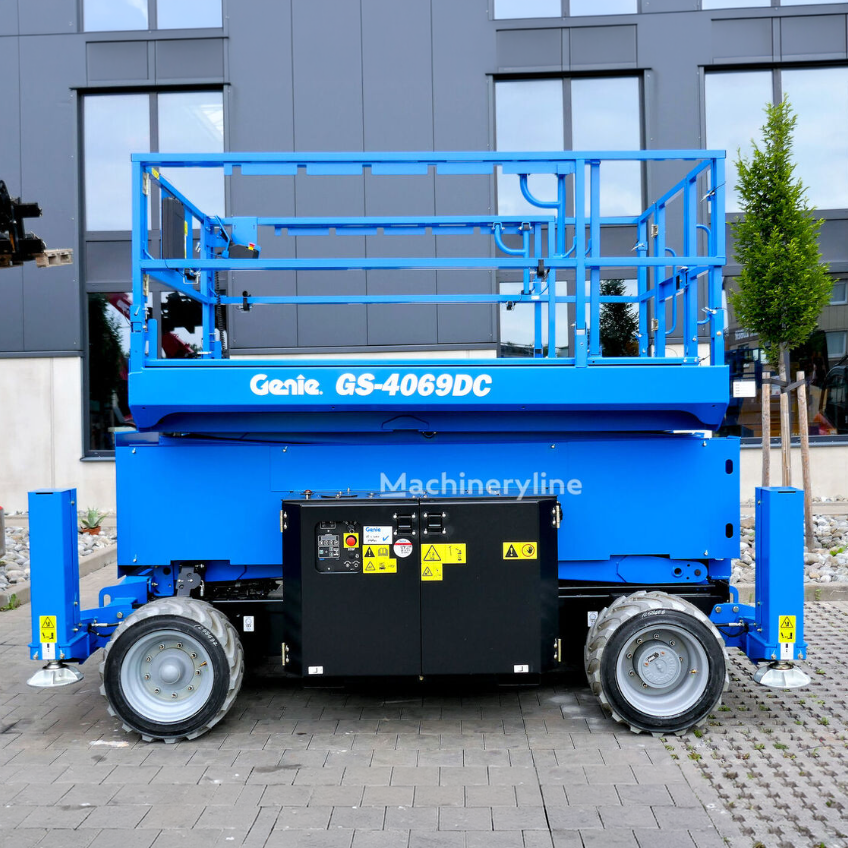

Genie GS-4069DC Specs

Quick-reference specifications for the Genie GS-4069DC scissor lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Lift capacity: 800 lb363 kg
Platform height max.: 40 ft 3 in12.3 m
Working height max.: 46 ft 3 in14.3 m
Weight: 10,948 lb4,966 kg

Performance 12 specs

Working height max.	46 ft 3 in (14.3 m)
Lift capacity	800 lb (363 kg)
Lift capacity – extension deck extended	300 lb (136 kg)
Drive speed – stowed	4.5 mph (7.2 km/h)
Drive speed – raised	0.3 mph (0.5 km/h)
Gradeability – stowed	35 %
Turning radius – inside/outside	83 in / 181.2 in (2.11 m / 4.6 m)
Lifting speed – raise/lower	61 / 28 sec
Tires – Non-marking, rough terrain	12 × 26 in (30 × 66 cm)
Sound Pressure level (ground workstation)	70 dBA
Sound Pressure level (platform workstation)	79 dBA
Vibrations	< 8 ft 2 in/s² (< 2.5 m/s²)

Dimensions 16 specs

Platform height max.	40 ft 3 in (12.3 m)
Platform height – stowed	5 ft 5 in (1.65 m)
Platform length – outside	9 ft 2 in (2.79 m)
Platform length – outside, extended	14 ft 2 in (4.32 m)
Slide-out platform extension deck – length	5 ft (1.52 m)
Platform width – outside	5 ft 3 in (1.60 m)
Toeboard height	6 in (15 cm)
Height – stowed (folding rails)	9 ft (2.74 m)
Height – stowed (rails lowered)	6 ft 10 in (2.08 m)
Length machine – stowed	10 ft 3 in (3.12 m)
Length machine – stowed, extended	14 ft 9.5 in (4.5 m)
Length machine – with outriggers	12 ft 4 in (3.76 m)
Width	5 ft 9 in (1.75 m)
Wheelbase	7 ft 6 in (2.29 m)
Ground clearance (center)	9.5 in (24 cm)
Max. platform drive height	40 ft 3 in (12.3 m)

Weight 5 specs

Weight	10,948 lb (4,966 kg)
Weight with outriggers	11,798 lb (5,352 kg)
Tire load max.	3,752 lb (1,702 kg)
Tire contact pressure	93.3 psi (643 kPa)
Occupied floor pressure	221 psf (10.60 kPa)

Hydraulics / Fluids 1 spec

Hydraulic tank capacity	18 gal (68.1 L)
