Scissor Lift · Genie

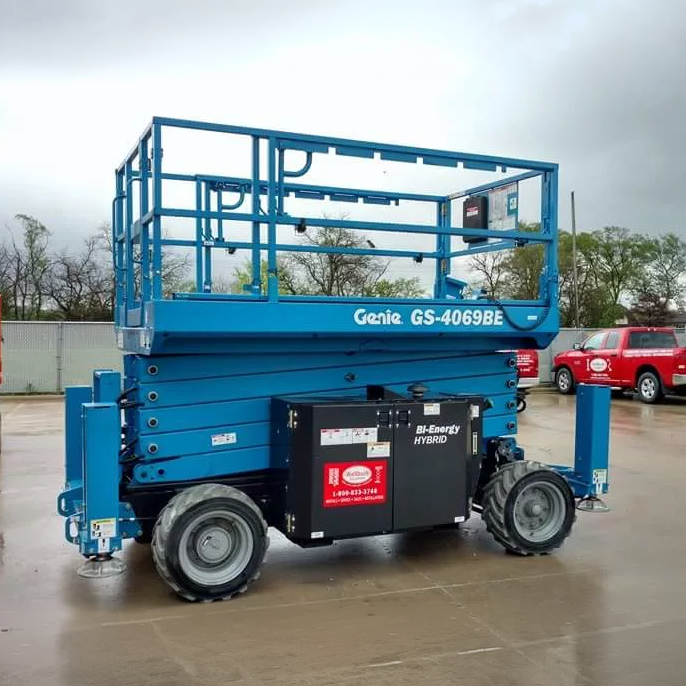

Genie GS-4069BE Specs
Quick-reference specifications for the Genie GS-4069BE scissor lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 800 lb363 kg
- Platform height maximum
- 39 ft 9 in12.12 m
- Working height maximum
- 46 ft 3 in14.12 m
- Gradeability – uphill stowed
- 35%
Performance 11 specs
| Working height maximum | 46 ft 3 in (14.12 m) |
|---|---|
| Lift capacity | 800 lb (363 kg) |
| Lift capacity – extension deck | 300 lb (136 kg) |
| Drive speed – raised | 0.3 mph (0.5 km/h) |
| Gradeability – uphill stowed | 35% |
| Turning radius – inside | 83 in (2.11 m) |
| Turning radius – outside | 181.2 in (4.6 m) |
| Raise/lower speed | 61/28 sec |
| Sound pressure level (ground workstation) | 71 dBA |
| Sound pressure level (platform workstation) | 75 dBA |
| Vibration | <8 ft 2 in/s² (<2.5 m/s²) |
Dimensions 11 specs
| Platform height maximum | 39 ft 9 in (12.12 m) |
|---|---|
| Platform height – stowed | 5 ft 5 in (1.65 m) |
| Platform length – outside | 9 ft 2 in (2.79 m) |
| Slide-out platform extension deck | 5 ft (1.52 m) |
| Platform width – outside | 5 ft 3 in (1.6 m) |
| Toeboard height | 6 in (0.15 m) |
| Height -stowed | 9 ft (2.74 m) |
| Length – stowed | 10 ft 3 in (3.12 m) |
| Width | 5 ft 9 in (1.75 m) |
| Wheelbase | 7 ft 6 in (2.29 m) |
| Ground clearance – center | 9.5 in (0.24 m) |
Power / Engine 1 spec
| Power source | 48 V DC |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic system capacity | 18 gal (68.1 L) |
|---|
