Scissor Lift · Genie

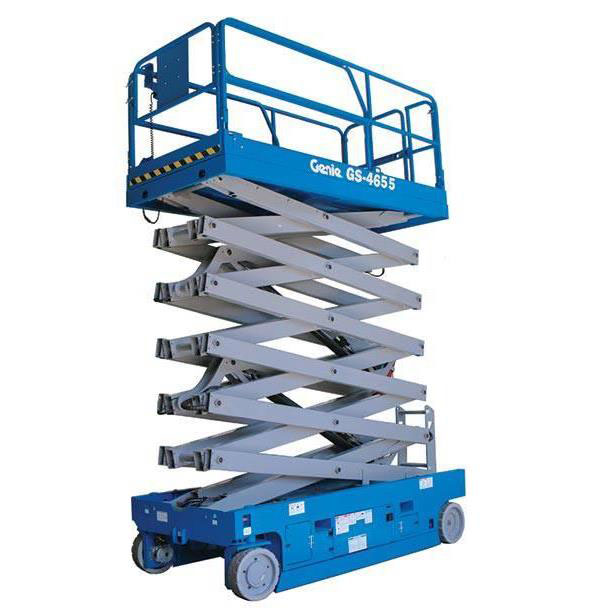

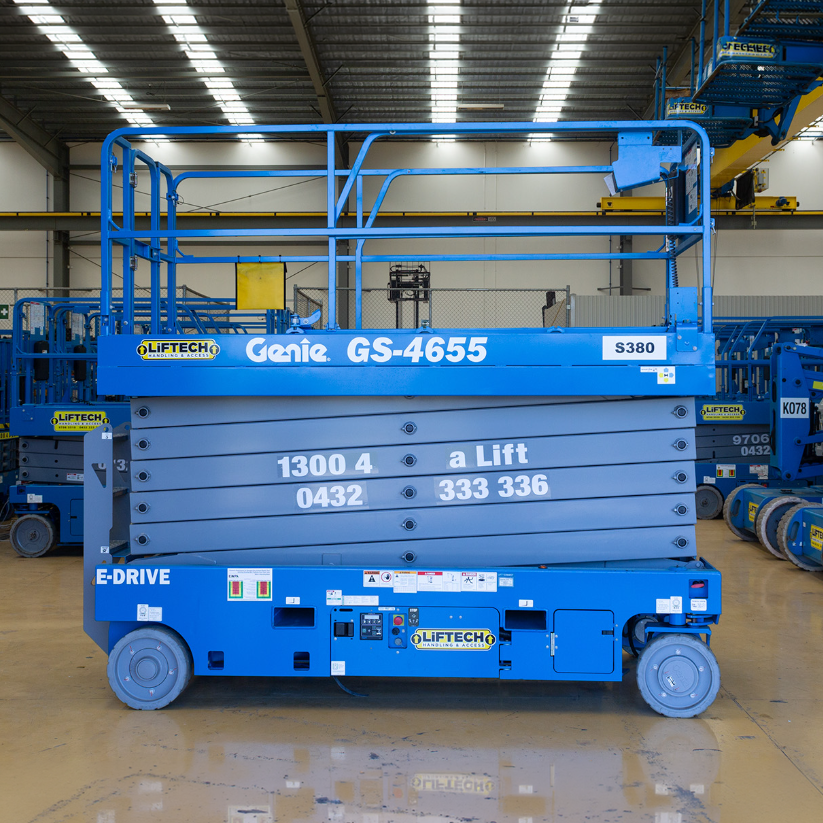

Genie GS-4655 Specs
Quick-reference specifications for the Genie GS-4655 scissor lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 770 lb350 kg
- Platform height max. – indoor
- 45 ft 9 in13.95 m
- Working height max. – indoor
- 51 ft 9 in15.95 m
- Weight
- 8,160 lb3,701 kg
Performance 13 specs
| Working height max. – indoor | 51 ft 9 in (15.95 m) |
|---|---|
| Working height max. – outdoor | 27 ft 6 in (8.55 m) |
| Lift capacity | 770 lb (350 kg) |
| Lift capacity – extension deck extended | 300 lb (136 kg) |
| Drive speed – stowed | 2.5 mph (4.0 km/h) |
| Drive speed – raised | 0.5 mph (0.8 km/h) |
| Gradeability – stowed | 25 % |
| Turning radius – inside/outside | 12 in/ 10 ft (31 cm/ 3.05 m) |
| Lifting speed – raise/lower | 92 / 58 sec |
| Tires – solid non-marking | 15 × 5 in (38 × 13 cm) |
| Sound Pressure level (ground workstation) | < 70 dBA |
| Sound Pressure level (platform workstation) | < 70 dBA |
| Vibrations | < 2.5 m/s² |
Dimensions 18 specs
| Platform height max. – indoor | 45 ft 9 in (13.95 m) |
|---|---|
| Platform height max. – outdoor | 21 ft 6 in (6.55 m) |
| Platform height – stowed | 5 ft 5 in (1.64 m) |
| Platform length – outside | 9 ft 4 in (2.84 m) |
| Platform length – outside, extended | 13 ft 4 in (4.10 m) |
| Slide-out platform extension deck – length | 4 ft (1.22 m) |
| Platform width – outside | 4 ft 5 in (1.35 m) |
| Guardrail height | 3 ft 7.3 in (1.10 m) |
| Toeboard height | 6 in (15 cm) |
| Height – stowed (folding rails) | 9 ft 1 in (2.77 m) |
| Height – stowed (rails lowered) | 6 ft 6 in (1.98 m) |
| Length machine – stowed | 10 ft 2 in (3.11 m) |
| Length machine – stowed, extended | 14 ft 2 in (4.33 m) |
| Width | 55.3 in (1.41 m) |
| Wheelbase | 8 ft 1 in (2.47 m) |
| Ground clearance (center) – pothole guards retracted | 5.9 in (15 cm) |
| Ground clearance – pothole guards deployed | 0.75 in (2 cm) |
| Max. platform drive height | 45 ft 9 in (13.95 m) |
Weight 4 specs
| Weight | 8,160 lb (3,701 kg) |
|---|---|
| Tire load max. | 3,682 lb (1,670 kg) |
| Tire contact pressure | 210 psi (1,451 kPa) |
| Occupied floor pressure | 205 psf (9.81 kPa) |
Hydraulics / Fluids 1 spec
| Hydraulic tank capacity (E-Drive) | 7.5 gal (28.4 L) |
|---|
