Scissor Lift · Genie

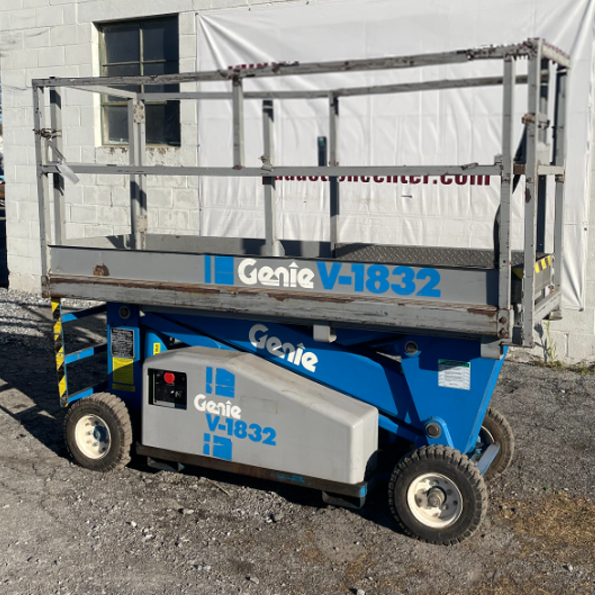

Genie V-1832 Specs
Quick-reference specifications for the Genie V-1832 scissor lift, taken from the manufacturer’s spec sheet.
- Maximum platform capacity (standard platform)
- 750 lb335 kg
- Platform height
- 18 ft5.5 m
- Gradeability
- 25%
Performance 7 specs
| Drive speed (platform lowered) | 0-3 mph (0-4.8 km/h) |
|---|---|
| Drive speed (platform elevated) | 0.8 mph (1.3 km/h) |
| Gradeability | 25% |
| Outside turning radius | 12 ft 4 in (3.8 m) |
| Inside turning radius | 7 ft 9 in (2.4 m) |
| Maximum platform capacity (standard platform) | 750 lb (335 kg) |
| Load capacity on extension deck | 300 lb (135 kg) |
Dimensions 5 specs
| Platform height | 18 ft (5.5 m) |
|---|---|
| Obstacle clearance | 3.25 in (82 mm) |
| Center clearance | 5.5 in (140 mm) |
| Stowed height | 6 ft 7 in (2 m) |
| Chassis width | 33 in (.84 m) |
