Telehandler · Genie

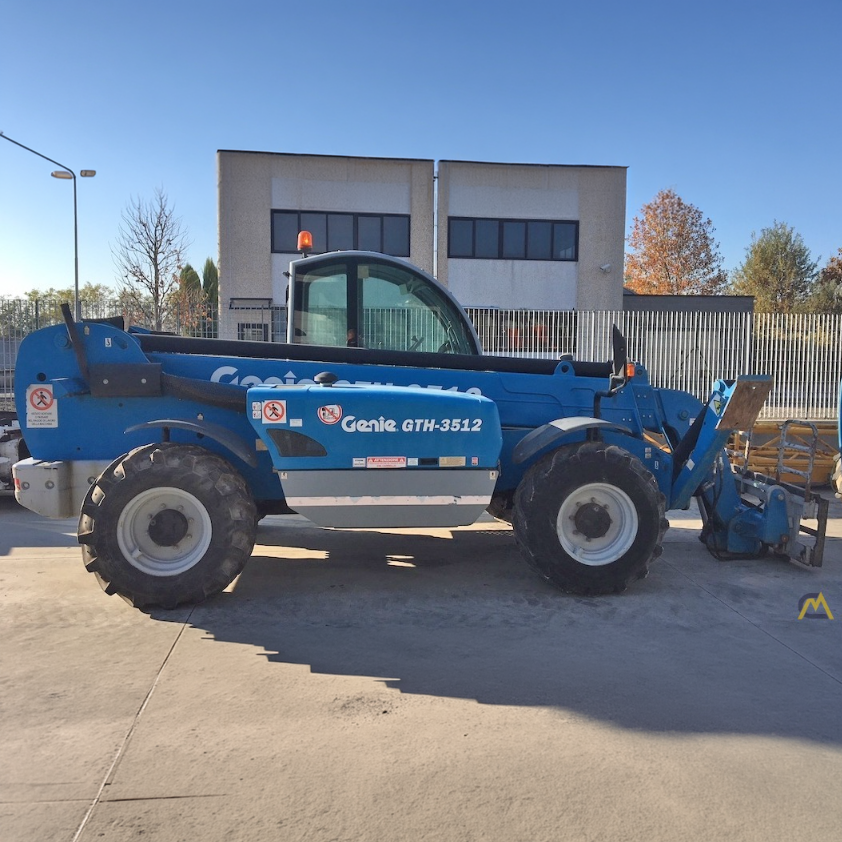

Genie GTH-3512 ACF Specs
Quick-reference specifications for the Genie GTH-3512 ACF telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity at maximum height
- 5,511 lb2,500 kg
- Weight
- 19,840 lb9,000 kg
Performance 10 specs
| Lifting capacity (max) | 7,715 lb (3,500 kg) |
|---|---|
| Lift capacity at maximum height | 5,511 lb (2,500 kg) |
| Lift capacity at maximum reach | 2,204 lb (1,000 kg) |
| Forward reach (max) | 28 ft (8.53 m) |
| Reach at maximum height | 3 ft 10 in (1.17 m) |
| Lifting/lowering speed | 13 sec/ 8 sec |
| Inside/outside turning radius | 7 ft 11 in/ 14 ft 9 in (2.42 m/4.5 m) |
| Towing capacity at dynamometer | 18,076 lb (8,200 kg) |
| Travel speed | 18.6 mph (30 km/h) |
| Fork-holder plate rotation | 145° |
Dimensions 11 specs
| Lifting height (max) | 39 ft 9 in (12.12 m) |
|---|---|
| Height | 8 ft (2.45 m) |
| Height at steering wheel | 6 ft (1.84 m) |
| Width | 7 ft 5 in (2.25 m) |
| Inside cab width | 2 ft 10 in (86 cm) |
| Track | 6 ft 1 in (1.85 m) |
| Wheelbase | 9 ft (2.75 m) |
| Length at front wheels | 14 ft 7 in (4.44 m) |
| Length at fork-holder plate | 18 ft 10 in (5.75 m) |
| Ground clearance | 1 ft 5 in (43 cm) |
| Overall width, stabilisers extended | 9 ft 7 in (2.93 m) |
Weight 1 spec
| Weight | 19,840 lb (9,000 kg) |
|---|
Power / Engine 2 specs
| Tank capacities – Fuel | 20 gal (92 L) |
|---|---|
| Tank capacities – Engine oil | 1.75 gal (8 L) |
Hydraulics / Fluids 1 spec
| Tank capacities – Hydraulic oil | 19.8 gal (90 L) |
|---|
