Telehandler · Genie

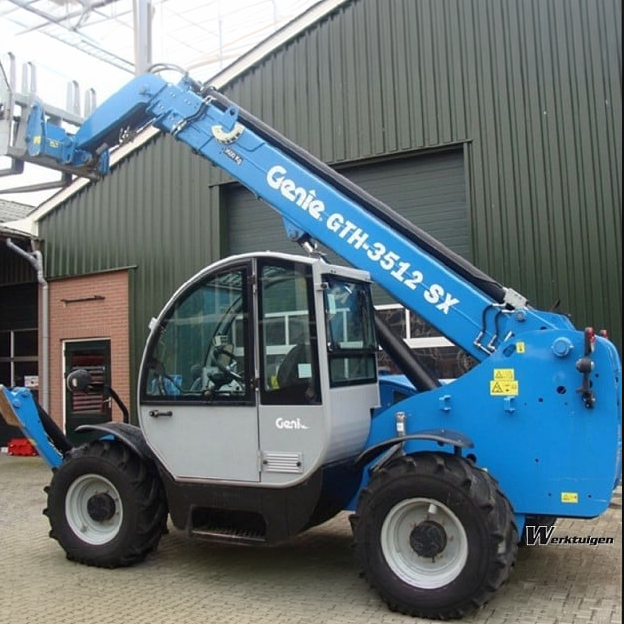

Genie GTH-3512 SX Specs
Quick-reference specifications for the Genie GTH-3512 SX telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity at maximum height
- 5,511 lb2,500 kg
- Weight
- 19,619 lb8,900 kg
Performance 9 specs
| Lifting capacity maximum | 7,715 lb (3,500 kg) |
|---|---|
| Lift capacity at maximum height | 5,511 lb (2,500 kg) |
| Lift capacity at maximum reach | 2,645 lb (1,200 kg) |
| Forward reach maximum | 28 ft 2 in (8.59 m) |
| Reach at maximum height | 4 ft 5 in (1.34 m) |
| Inside/outside turning radius | 5 ft 11 in/ 12 ft 7 in (1.8 m/3.85 m) |
| Towing capacity at dynamometer | 14,108 lb (6,400 kg) |
| Travel speed | 22 mph (35 km/h) |
| Fork-holder plate rotation | 128° |
Dimensions 12 specs
| Length | 3 ft 11 in |
|---|---|
| Lifting height maximum | 39 ft 6 in (12.05 m) |
| Height | 7 ft 11 in (2.41 m) |
| Height at steering wheel | 5 ft 5 in (1.65 m) |
| Width | 7 ft 5 in (2.25 m) |
| Inside cab width | 2 ft 7 in (78 cm) |
| Track | 6 ft 1 in (1.85 m) |
| Wheelbase | 9 ft (2.75 m) |
| Length at front wheels | 14 ft 5 in (4.39 m) |
| Length at fork-holder plate | 18 ft 11 in (5.78 m) |
| Ground clearance | 1 ft 4 in (40 cm) |
| Overall width, stabilisers extended | 9 ft 7 in (2.93 m) |
Weight 1 spec
| Weight | 19,619 lb (8,900 kg) |
|---|
Power / Engine 2 specs
| Tank capacities – Fuel | 20 gal (90 L) |
|---|---|
| Tank capacities – Engine oil | 2 gal (10 L) |
Hydraulics / Fluids 1 spec
| Tank capacities – Hydraulic oil | 17.5 gal (80 L) |
|---|
