Telehandler · Genie

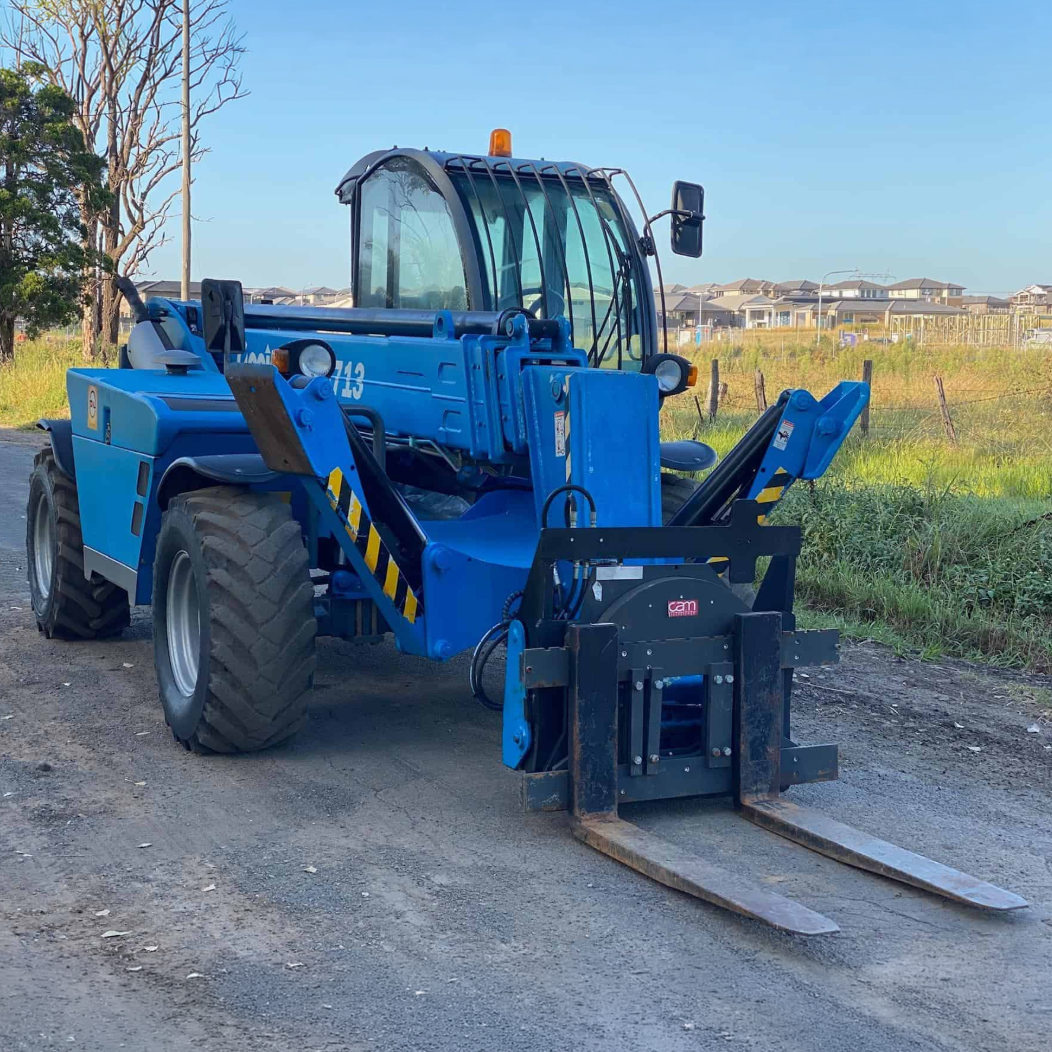

Genie GTH-3713 Specs
Quick-reference specifications for the Genie GTH-3713 telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity at maximum height
- 5,511 lb2,500 kg
- Weight
- 21,825 lb9,900 kg
- Gradeability (Unloaded)
- 40%
Performance 12 specs
| Lifting capacity (max) | 8157 lb (3,700 kg) |
|---|---|
| Lift capacity at maximum height | 5,511 lb (2,500 kg) |
| Lift capacity at maximum reach | 1543 lb (700 kg) |
| Forward reach (max) | 28 ft 6 in (8.74 m) |
| Reach at maximum height | 2 ft 8 in (0.85 m) |
| Lifting/lowering speed | 12 sec/10 sec |
| Extension/retraction speed | 16 sec/15 sec |
| Inside/outside turning radius | 4 ft 3 in/13 ft 1 in (1.30 m/3.99 m) |
| Towing capacity at dynamometer | 8,929 lb (4,050 kg) |
| Travel speed | 19 mph (30 km/h) |
| Gradeability (Unloaded) | 40% |
| Fork-holder plate rotation | 145° |
Dimensions 11 specs
| Lifting height (max) | 41 ft 3 in (12.6 m) |
|---|---|
| Height | 8 ft 2 in (2.49 m) |
| Height at steering wheel | 6 ft 3 in (1.92 m) |
| Width | 7 ft 6 in (2.33 m) |
| Inside cab width | 3 ft (0.91 m) |
| Track | 6 ft 3 in (1.92 m) |
| Wheelbase | 9 ft 3 in (2.85 m) |
| Length at front wheels | 14 ft 6 in (4.44 m) |
| Length at fork-holder plate | 18 ft 1 in (5.53 m) |
| Ground clearance | 1 ft 5 in (0.46 m) |
| Overall width, stabilisers extended | 9 ft 6 in (2.93 m) |
Weight 1 spec
| Weight | 21,825 lb (9,900 kg) |
|---|
Power / Engine 3 specs
| Perkins diesel engine | 58kw 78 hp |
|---|---|
| Tank capacities – Fuel | 29.7 gal (135 L) |
| Tank capacities – Engine oil | 2.5 gal (11.5 L) |
Hydraulics / Fluids 2 specs
| Tank capacities – Coolant | 3.3 gal (15 L) |
|---|---|
| Tank capacities – Hydraulic oil | 33 gal (150 L) |
