Telehandler · Genie

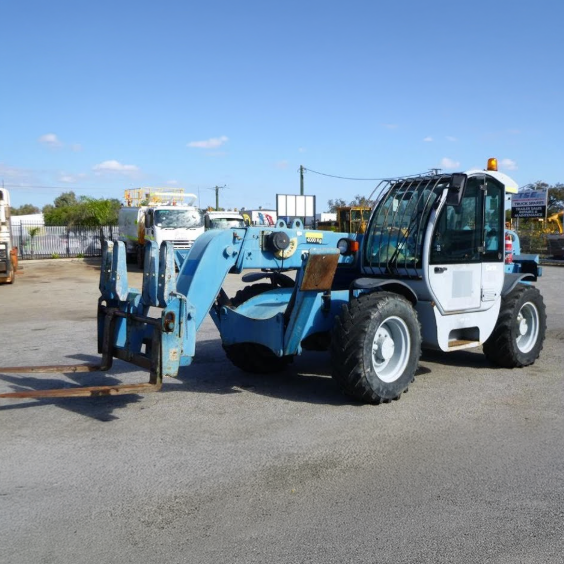

Genie GTH-4010 AU.2 Specs
Quick-reference specifications for the Genie GTH-4010 AU.2 telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity at maximum height
- 6,614 lb3,000 kg
- Weight
- 20,503 lb9,300 kg
Performance 8 specs
| Lifting capacity maximum | 8,818 lb (4,000 kg) |
|---|---|
| Lift capacity at maximum height | 6,614 lb (3,000 kg) |
| Lift capacity at maximum reach | 4,409 lb (2,000 kg) |
| Forward reach maximum | 19 ft 11 in (6.07 m) |
| Reach at maximum height | 2 ft 2 in (0.65 m) |
| Drawbar pull | 9,920 lb (8,200 kg) |
| Drive speed | 18.6 mph (30 km/h) |
| Fork-holder plate rotation | 128° |
Dimensions 13 specs
| Lifting height maximum | 32 ft 3 in (9.82 m) |
|---|---|
| Height | 7 ft 11 in (2.41 m) |
| Height at steering wheel | 5 ft 5 in (1.65 m) |
| Width | 7 ft 5 in (2.25 m) |
| Inside cab width | 2 ft 7 in (0.78 m) |
| Track | 6 ft 1 in (1.85 m) |
| Wheelbase | 9 ft (2.75 m) |
| Length at front wheels | 14 ft 5 in (4.39 m) |
| Length at fork-holder plate | 19 ft 11 in (6.06 m) |
| Ground clearance | 1 ft 4 in (0.40 m) |
| Overall width, outriggers extended | 9 ft 7 in (2.93 m) |
| Obstruction angle | 32° |
| Departure angle | 31° |
Weight 1 spec
| Weight | 20,503 lb (9,300 kg) |
|---|
Power / Engine 2 specs
| Tank capacities – Fuel | 23.8 gal (90 L) |
|---|---|
| Tank capacities – Engine oil | 2.64 gal (10 L) |
Hydraulics / Fluids 1 spec
| Tank capacities – Hydraulic oil | 21.1 gal (80 L) |
|---|
