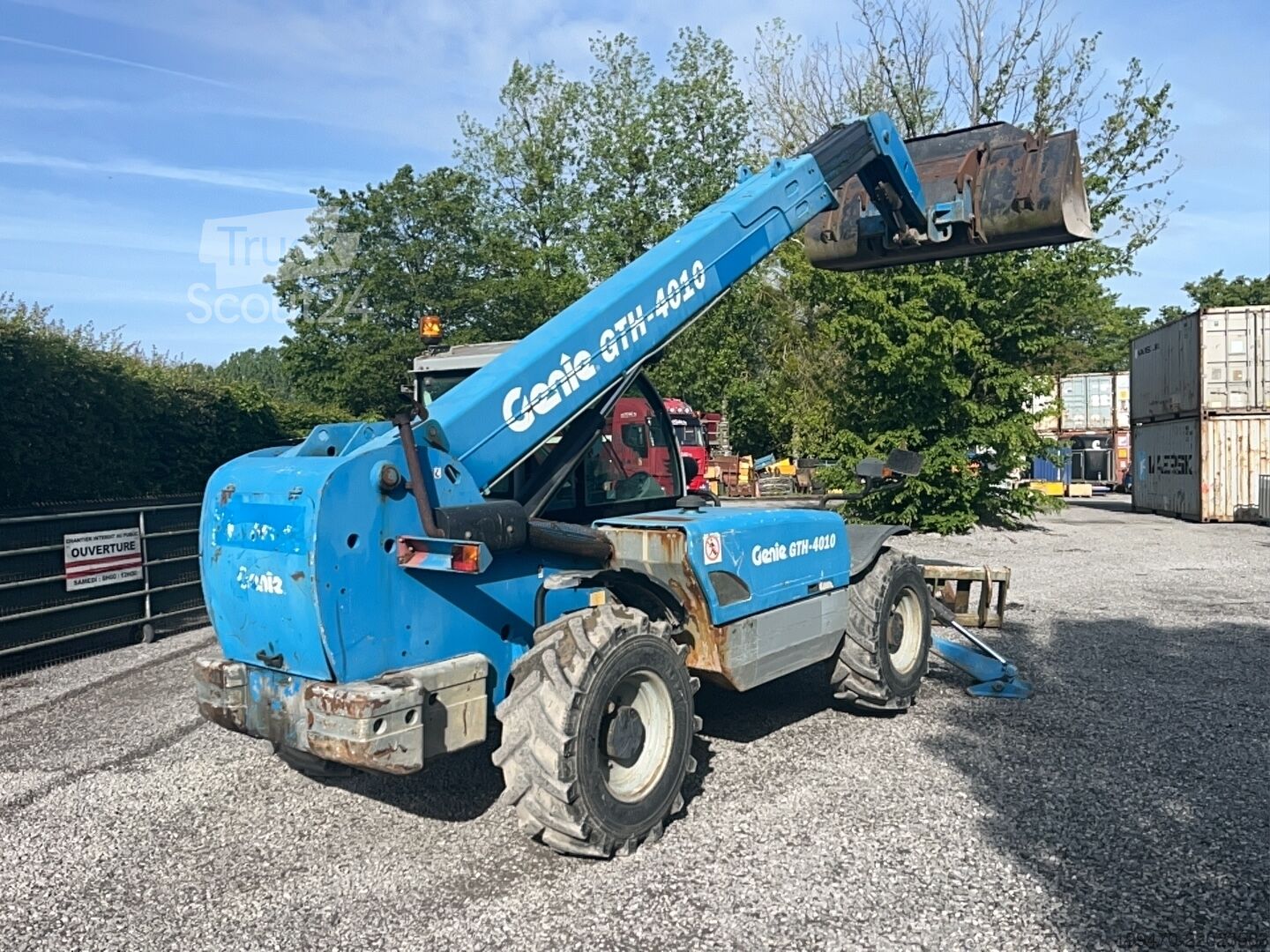

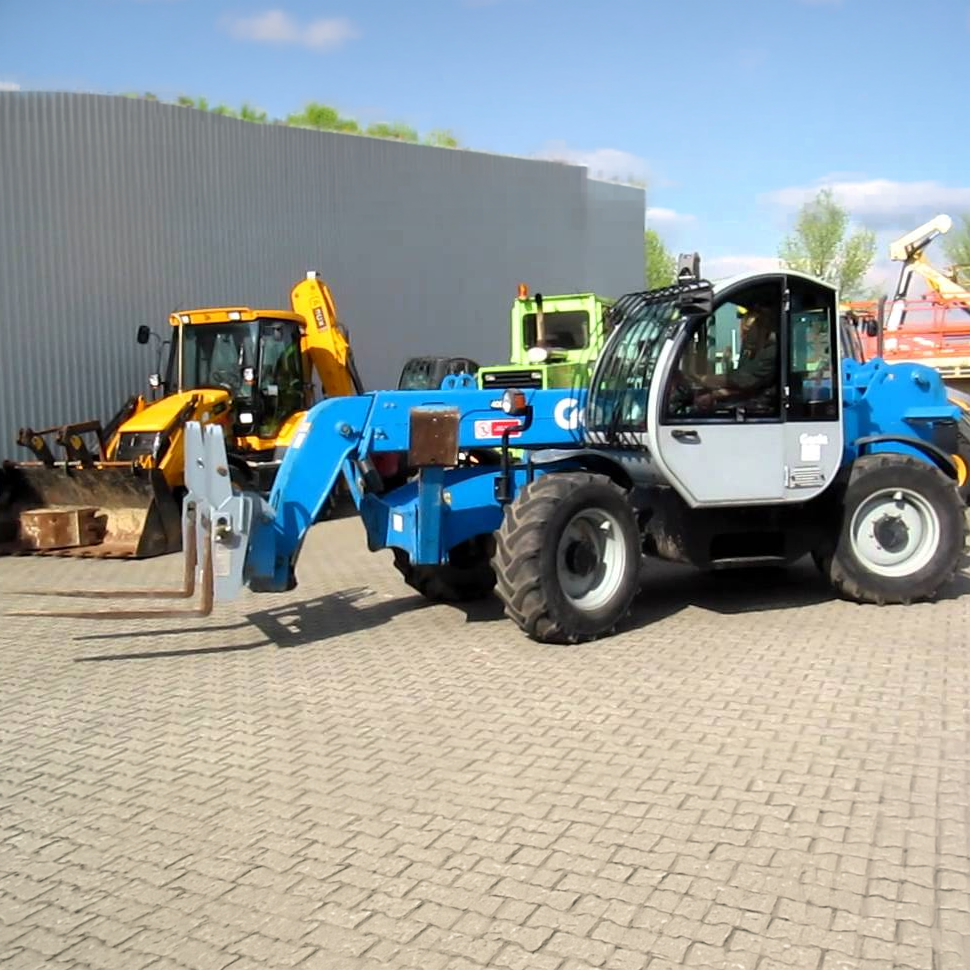

Genie GTH-4010 Spec Sheet
Quick-reference specifications for the Genie GTH-4010. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Forward reach (max): 6.07 m
Overall width, stabilisers extended: 2.93 m
Lifting capacity (max): 4,000 kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Lifting capacity (max) | 4,000 kg |
|---|---|
| Lift capacity at maximum height | 3,500 kg |
| Lift capacity at maximum reach | 2,500 kg |
| Forward reach (max) | 6.07 m |
| Inside/outside turning radius | 2.42 m/4.5 m |
| Towing capacity at dynamometer | 8,200 kg |
| Travel speed | 30 km/h |
| Gradeability (Unloaded) | 40% |
Dimensions
| Lifting height (max) | 9.82 m |
|---|---|
| Reach at maximum height | 0.85 m |
| Height | 2.45 m |
| Height at steering wheel | 1.84 m |
| Width | 2.25 m |
| Inside cab width | 0.86 m |
| Wheelbase | 2.75 m |
| Length at stabilisers | 4.44 m |
| Length at fork-holder plate | 6.13 m |
| Ground clearance | 0.43 m |
| Overall width, stabilisers extended | 2.93 m |
Weights & Electrical
| Track | 1.85 m |
|---|---|
| Extension/retraction speed | 22 sec./20 sec. |
Powertrain & Systems
| Section 5 in x 2 in Tyres (DIN | 70361) |
|---|---|
| Duetz Turbo Diesel, direct injection low emissions 4 cylinder Power | 60kw (81.5 HP) |
| Fuel | 135 L |
| STANDARDS COMPLIANCE Operating cab conforms to EEC directives | 86/295 (ROPS) |
Lubricants & Fluids
| Engine oil | 11.5 L |
|---|---|
| Coolant | 15 L |
| Hydraulic oil | 150 L |
