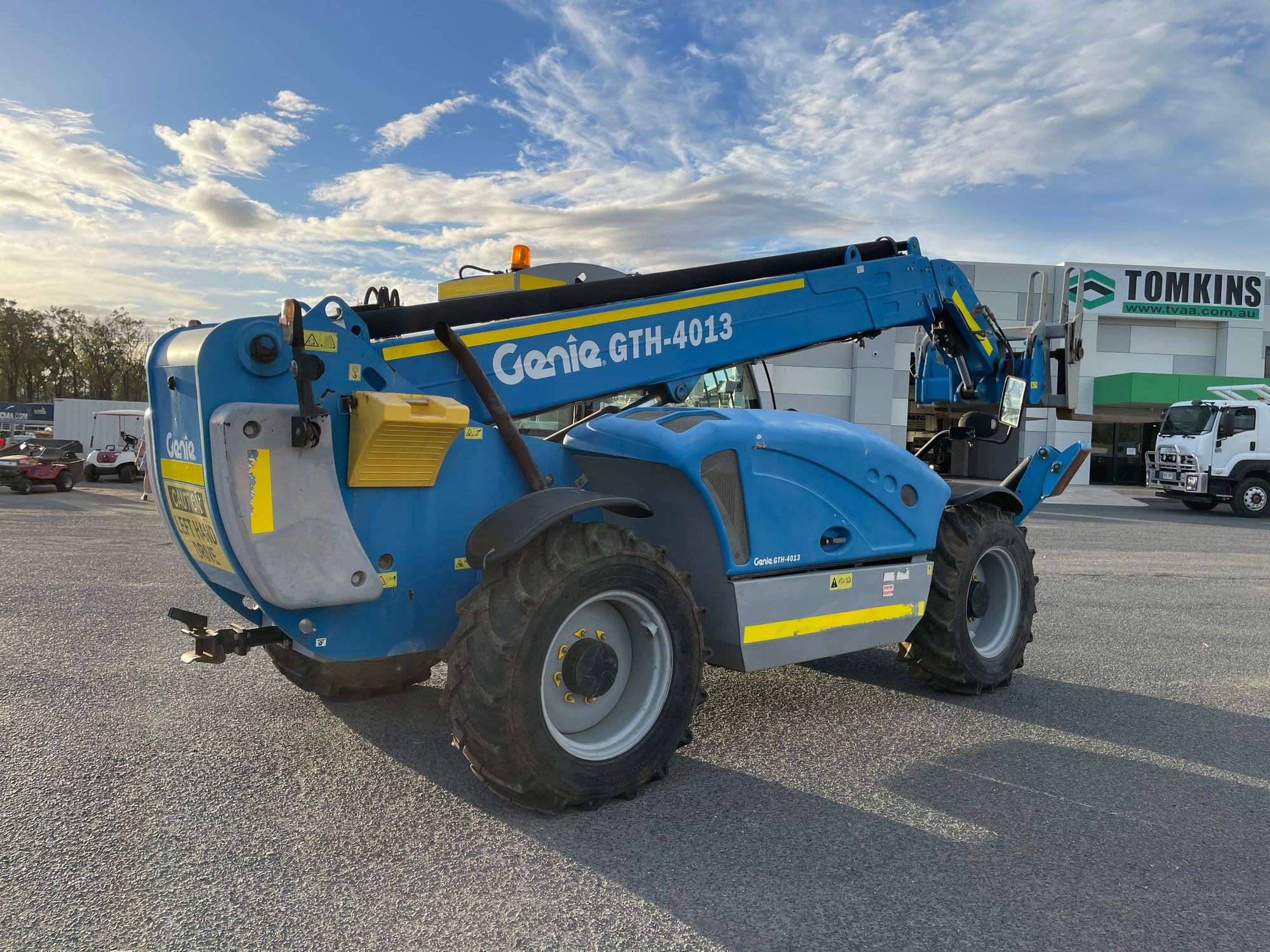

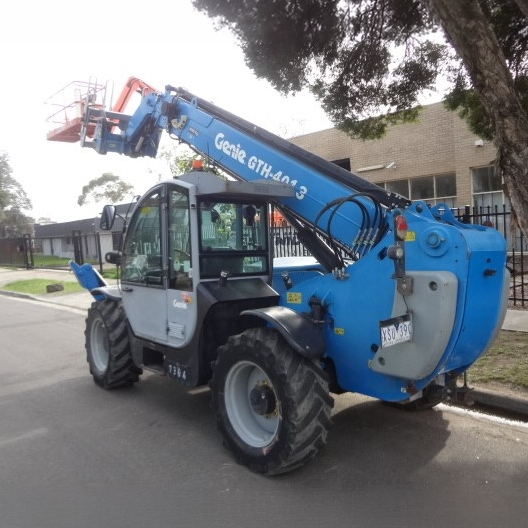

Genie GTH-4013 AU Specs
Quick-reference specifications for the Genie GTH-4013 AU telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity at maximum height
- 6,614 lb3,000 kg
- Weight
- 24,163 lb10,960 kg
Performance 11 specs
| Lifting capacity maximum | 8,818 lb (4,000 kg) |
|---|---|
| Lift capacity at maximum height | 6,614 lb (3,000 kg) |
| Lift capacity at maximum reach | 2,756 lb (1,250 kg) |
| Forward reach maximum | 30 ft (9.14 m) |
| Reach at maximum height | 6 ft 3 in (1.90 m) |
| Inside/outside turning radius | 7 ft 11 in / 15 ft 3 in (2.43 m / 4.65 m) |
| Drawbar pull | 12,864 lb (7,500 kg) |
| Drive speed | 22 mph (35 km/h) |
| Fork-holder plate rotation | 138° |
| Chassis levelling on front axle | +/- 6° |
| Tier | 3 |
Dimensions 12 specs
| Lifting height maximum with outriggers | 42 ft 10 in (13.06 m) |
|---|---|
| Lifting height maximum without outriggers | 42 ft (12.80 m) |
| Height | 8 ft 1 in (2.46 m) |
| Height at steering wheel | 5 ft 5 in (1.66 m) |
| Width | 7 ft 7 in (2.32 m) |
| Inside cab width | 2 ft 7 in (0.78 m) |
| Track | 6 ft 4 in (1.92 m) |
| Wheelbase | 9 ft 8 in (2.95 m) |
| Length at front wheels | 15 ft 9 in (4.79 m) |
| Length at fork-holder plate | 19 ft 11 in (6.06 m) |
| Ground clearance | 1 ft 3 in (0.39 m) |
| Overall width, outriggers extended | 9 ft 6 in (2.89 m) |
Weight 1 spec
| Weight | 24,163 lb (10,960 kg) |
|---|
Power / Engine 1 spec
| Tank capacities – Engine oil | 1.8 gal (7 L) |
|---|
Hydraulics / Fluids 2 specs
| Tank capacities – Petrol | 35.7 gal (135 L) |
|---|---|
| Tank capacities – Hydraulic oil | 39.6 gal (150 L) |
