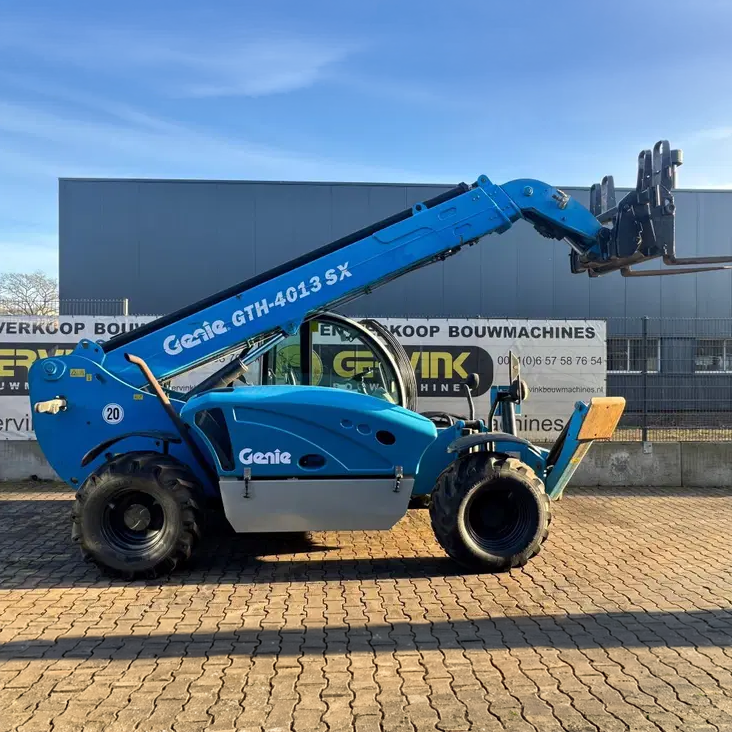

Genie GTH-4013 SX Spec Sheet
Quick-reference specifications for the Genie GTH-4013 SX. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Forward reach maximum: 9.08 m
Overall width, stabilisers extended: 2.89 m
Lift capacity chart (with stabilisers): 12.81 m
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Lift capacity chart (with stabilisers) | 12.81 m |
|---|---|
| Lifting capacity maximum | 4,000 kg |
| Lift capacity at maximum height | 3,000 kg |
| Lift capacity at maximum reach | 1,250 kg |
| Forward reach maximum | 9.08 m |
| Inside/outside turning radius | 1.14 m/3.79 m |
| Towing capacity at dynamometer | 8,940 kg |
| Travel speed (max) | 30 km/h |
Dimensions
| Lifting height maximum | 13 m |
|---|---|
| Reach at maximum height | 65 cm |
| Height | 2.42 m |
| Height at steering wheel | 1.60 m |
| Width | 2.33 m |
| Inside cab width | 91 cm |
| Wheelbase | 2.95 m |
| Length at front wheels | 4.83 m |
| Length at fork-holder plate | 6.10 m |
| Ground clearance | 43 cm |
| Overall width, stabilisers extended | 2.89 m |
Weights & Electrical
| Track | 1.92 m |
|---|---|
| Extension/retraction speed | 16 sec./13 sec. |
Powertrain & Systems
| Chassis levelling on front axle +/- | 6° |
|---|---|
| Section 4.5 in x 2 in Tyres (DIN | 70361) |
| Engine Cummins Turbo diesel | 99 hp (74 kw) |
| Low emission engine conforms to UE 97/68 directives. GOST R | 50950-96 |
Hydraulics & Capacities
| Hydraulic output/pressure | 95 L/min-270 bars |
|---|
Lubricants & Fluids
| Engine oil | 12 L |
|---|---|
| Hydraulic oil | 135 L |
