Telehandler · Genie

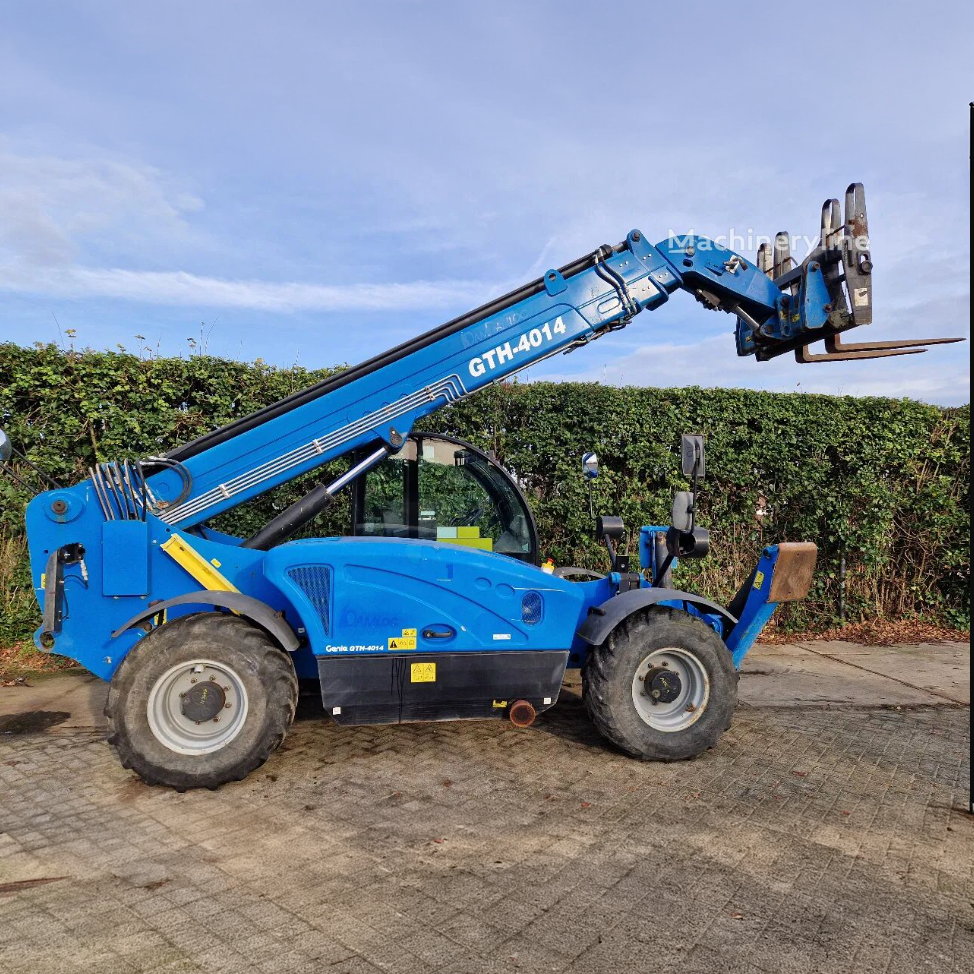

Genie GTH-4014 AU Specs

Quick-reference specifications for the Genie GTH-4014 AU telehandler, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Lift capacity at maximum height: 6,614 lb3,000 kg
Weight: 22,542 lb10,225 kg

Performance 13 specs

Lifting capacity maximum	8,818 lb (4,000 kg)
Lift capacity at maximum height	6,614 lb (3,000 kg)
Lift capacity at maximum reach	2,204 lb (1,000 kg)
Forward reach maximum	29 ft 9 in (9.08 m)
Reach at maximum height on wheels	1 ft 7 in (0.48 m)
Inside/outside turning radius	6 ft 2 in/11 ft 8 in (1.87 m/3.55 m)
Towing capacity at dynamometer	16,036 lb (7,274 kg)
Drive speed max.	16 mph (26 km/h)
Fork-holder plate rotation	138°
Tyres (DIN 70361)	8 holes wheel disc (405/70 20 in PR14)
Petrol tank capacities	45 gal (170 L)
Payload	4,000 kg
Rotating and extendable	+/-90°

Dimensions 16 specs

Lifting height maximum with outriggers	44 ft 6 in (13.57 m)
Lifting height maximum without outriggers	43 ft 11 in (13.38 m)
Height	7 ft 10 in (2.40 m)
Height at steering wheel	5 ft 2 in (1.56 m)
Width	7 ft 7 in (2.32 m)
Cab width	3 ft (0.93 m)
Track	6 ft 4 in (1.92 m)
Wheelbase	9 ft 8 in (2.95 m)
Length at front wheels	15 ft 9 in (4.79 m)
Length at fork-holder plate	19 ft 11 in (6.06 m)
Ground clearance	1 ft (0.30 m)
Overall width, outriggers extended	9 ft 5 in (2.87 m)
Overall length	23 ft 10 in (7.26 m)
Obstruction angle	40°
Departure angle	46°
Length	1,625 mm

Weight 1 spec

Weight	22,542 lb (10,225 kg)

Power / Engine 1 spec

Engine oil capacities	2.1 gal (8 L)

Hydraulics / Fluids 3 specs

Boom & Control system gear pump type	280 Bar, 99 L/min.
Hydraulic oil tank capacities	29.6 gal (112 L)
Service Brake gear pump type	200 Bar, 46 L/min.
