Telehandler · Genie

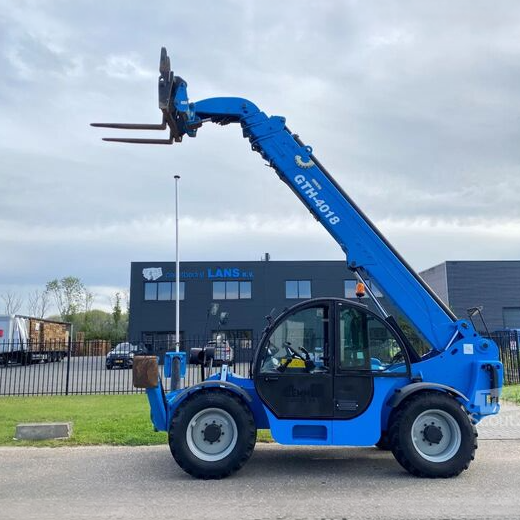

Genie GTH-4018 IIIA & IIIB Specs

Quick-reference specifications for the Genie GTH-4018 IIIA & IIIB telehandler, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Lift capacity at maximum height: 4,409 lb2,000 kg
Weight: 26,411 lb11,980 kg

Performance 13 specs

Lifting capacity maximum	8,818 lb (4,000 kg)
Lift capacity at maximum height	4,409 lb (2,000 kg)
Lift capacity at maximum reach	1,433 lb (650 kg)
Forward reach maximum	43 ft 10 in (13.36 m)
Reach at maximum height	2 ft 11 in (0.89 m)
Inside/outside turning radius	6 ft 2 in/11 ft 8 in (1.87 m/3.55 m)
Towing capacity at dynamometer	14,402 lb (6,533 kg)
Drive speed max.	11 mph (27 km/h)
Fork-holder plate rotation	138°
Tyres (DIN 70361)	8 holes wheel disc (405/70 24 in PR14)
Petrol tank capacities	45 gal (170 L)
Payload	4,000 kg
Rotating and extendable	+/-90°

Dimensions 16 specs

Lifting height maximum with outriggers	57 ft 9 in (17.61 m)
Lifting height maximum without outriggers	57 ft 0 in (17.38 m)
Height	8 ft (2.44 m)
Height at steering wheel	5 ft 3 in (1.60 m)
Width	7 ft 11 in (2.42 m)
Cab width	3 ft (0.93 m)
Track	6 ft 4 in (1.92 m)
Wheelbase	9 ft 8 in (2.95 m)
Length at front wheels	15 ft 10 in (4.83 m)
Length at fork-holder plate	21 ft 6 in (6.57 m)
Ground clearance	1 ft 2 in (0.35 m)
Overall width, outriggers extended	9 ft 5 in (2.87 m)
Overall length	25 ft 6 in (7.77 m)
Obstruction angle	40°
Departure angle	46°
Length	1,625 mm

Weight 1 spec

Weight	26,411 lb (11,980 kg)

Power / Engine 1 spec

Engine oil capacities	2.1 gal (8 L)

Hydraulics / Fluids 3 specs

Hydraulic oil tank capacities	29.6 gal (112 L)
Boom & Control system gear pump type	280 Bar, 99 L/min.
Service Brake gear pump type	200 Bar, 46 L/min.
