Telehandler · Genie

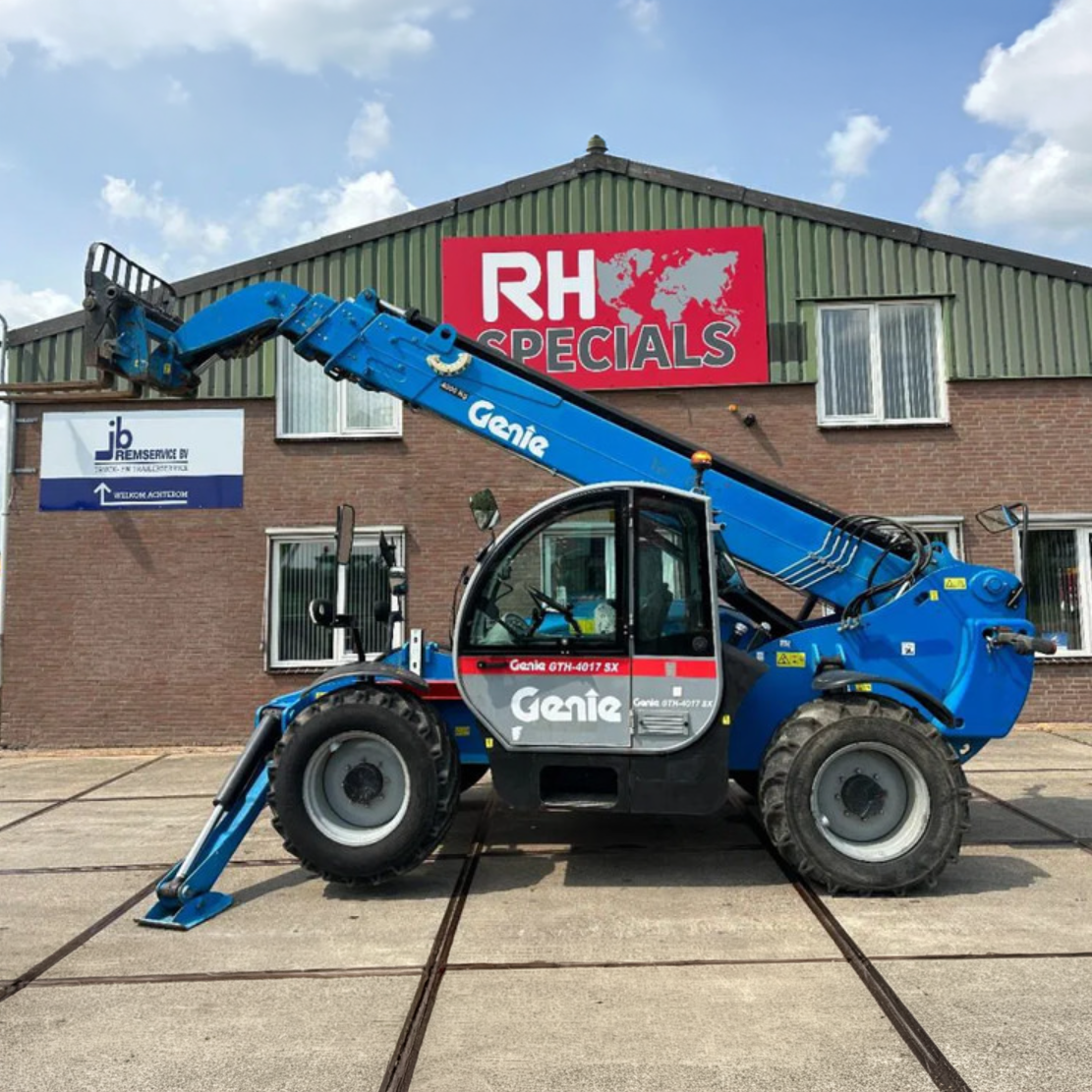

Genie GTH-4017 SX Specs
Quick-reference specifications for the Genie GTH-4017 SX telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity at maximum height
- 4,409 lb2,000 kg
- Weight
- 25,683 lb11,650 kg
Performance 11 specs
| Lifting capacity maximum | 8,818 lb (4,000 kg) |
|---|---|
| Lift capacity at maximum height | 4,409 lb (2,000 kg) |
| Lift capacity at maximum reach | 1,543 lb (700 kg) |
| Forward reach maximum | 43 ft 9 in (13.33 m) |
| Reach at maximum height | 8 ft 2 in (2.50 m) |
| Inside/outside turning radius | 8 ft 1 in/15 ft 3 in (2.42 m/4.65 m) |
| Drive speed max. | 17 mph (28 km/h) |
| Fork-holder plate rotation | 138° |
| Chassis levelling on the front axle | +/- 7° |
| Vibration level hand-arm system | <8 ft 2 in/s² (<2.5 m/s²) |
| Vibration level whole body | 9 in/s² (0.23 m/s²) |
Dimensions 12 specs
| Lifting height maximum with stabilisers | 56 ft 5 in (17.19 m) |
|---|---|
| Lifting height maximum without stabilisers | 54 ft 10 in (16.72 m) |
| Height | 8 ft (2.44 m) |
| Height at steering wheel | 5 ft 3 in (1.60 m) |
| Width | 7 ft 7 in (2.32 m) |
| Cab width | 3 ft (93 cm) |
| Track | 6 ft 4 in (1.92 m) |
| Wheelbase | 9 ft 8 in (2.95 m) |
| Length at front wheels | 15 ft 10 in (4.83 m) |
| Length at fork-holder plate | 21 ft 7 in (6.57 m) |
| Ground clearance | 1 ft 5 in (43 cm) |
| Overall width, stabilisers extended | 9 ft 6 in (2.89 m) |
Weight 1 spec
| Weight | 25,683 lb (11,650 kg) |
|---|
Power / Engine 2 specs
| Tank capacities – Fuel | 30 gal (135 L) |
|---|---|
| Tank capacities – Engine oil | 1.5 gal (7 L) |
Hydraulics / Fluids 1 spec
| Tank capacities – Hydraulic oil | 33 gal (150 L) |
|---|
