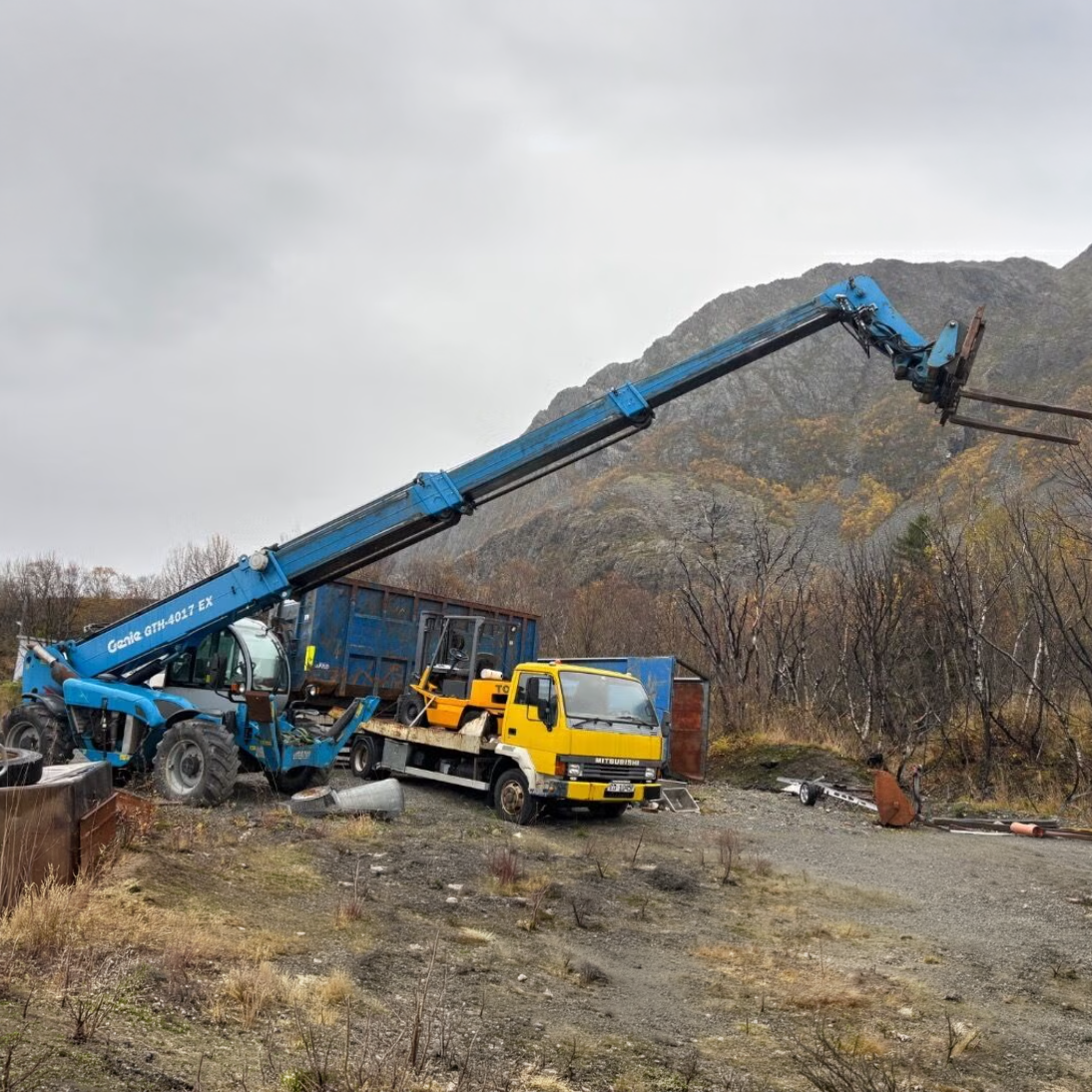

Genie GTH-4017 EX Spec Sheet
Quick-reference specifications for the Genie GTH-4017 EX. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Forward reach maximum: 12.55 m
Overall width, stabilisers extended: 2.95 m
Lifting capacity maximum: 4,000 kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Lifting capacity maximum | 4,000 kg |
|---|---|
| Lift capacity at maximum height | 2,500 kg |
| Lift capacity at maximum reach | 600 kg |
| Forward reach maximum | 12.55 m |
| Inside/outside turning radius | 2.15 m/4.5 m |
| Towing capacity at dynamometer | 8,200 kg |
| Travel speed maximum | 35 km/h |
Dimensions
| Lifting height maximum | 16.72 m |
|---|---|
| Reach at maximum height | 59 cm |
| Height | 2.61 m |
| Height at steering wheel | 1.65 m |
| Width | 2.45 m |
| Inside cab width | 78 cm |
| Wheelbase | 2.85 m |
| Length at front wheels | 4.70 m |
| Length at fork-holder plate | 6.49 m |
| Ground clearance | 42 cm |
| Overall width, stabilisers extended | 2.95 m |
Weights & Electrical
| Track | 1.98 m |
|---|---|
| Extension/retraction speed | 26 sec./16 sec. |
Powertrain & Systems
| Chassis levelling on the front axle +/- | 8° |
|---|---|
| Section 5 in x 2 in Tyres (DIN | 70361) |
| POWER Engine Perkins 1104 D-44T 4-cylinder Turbo Diesel | 74.4 kW (101 HP), Tier3 |
| Fuel | 135 L |
| Low emission engine conforms to UE 97/68 directives. GOST R | 50950-96 |
| Brunel Drive Newark NG24 | 2DE |
Hydraulics & Capacities
| Hydraulic output/pressure 95 L / min – | 270 bar |
|---|
Lubricants & Fluids
| Engine oil | 7 L |
|---|---|
| Hydraulic oil | 150 L |
