Boom Lift · Genie

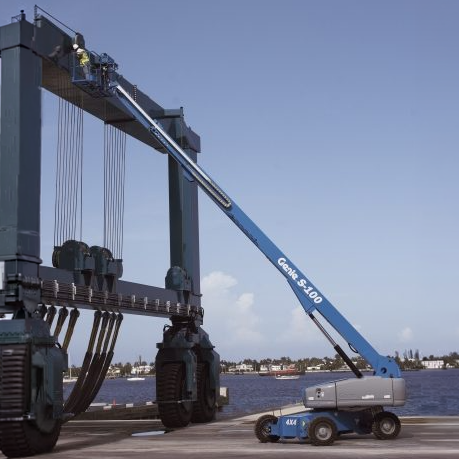

Genie S-100 Specs
Quick-reference specifications for the Genie S-100 boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 750 lb340 kg
- Platform height maximum
- 100 ft30.48 m
- Working height maximum
- 106 ft32.48 m
- Gradeability – stowed
- 40%
Performance 12 specs
| Working height maximum | 106 ft (32.48 m) |
|---|---|
| Horizontal reach maximum | 75 ft (22.86 m) |
| Below ground reach | 6 ft 6 in (1.98 m) |
| Lift capacity | 750 lb (340 kg) |
| Platform rotation | 160° |
| Turntable rotation | 360° continuous |
| Drive speed – stowed | 3.0 mph (4.8 km/h) |
| Drive speed – raised or extended | 0.68 mph (1.1 km/h) |
| Gradeability – stowed | 40% |
| Turning radius – axles retracted: inside | 13 ft 7 in (4.14 m) |
| Turning radius – axles extended: inside | 9 ft (2.74 m) |
| Tires – RT lug | 385/65D 22.5 |
Dimensions 13 specs
| Platform height maximum | 100 ft (30.48 m) |
|---|---|
| Platform length – 8 ft model | 3 ft (.91 m) |
| Platform length – 6 ft model | 2 ft 6 in (.76 m) |
| Platform width – 8 ft model | 8 ft (2.44 m) |
| Platform width – 6 ft model | 6 ft (1.83 m) |
| Height – stowed | 10 ft 1 in (3.07 m) |
| Length – stowed | 42 ft 8 in (13.00 m) |
| Width – axle retracted | 8 ft 2 in (2.49 m) |
| Width – axle extended | 11 ft (3.35 m) |
| Wheelbase | 12 ft (3.65 m) |
| Ground clearance – center | 1 ft 5.5 in (.44 m) |
| Turntable tailswing – axle retracted | 5 ft 6 in (1.68 m) |
| Turntable tailswing – axle extended | 4 ft (1.22 m) |
Power / Engine 1 spec
| Auxiliary Power Unit | 12 V DC |
|---|
Hydraulics / Fluids 2 specs
| Hydraulic Tank Capacity | 55 gal (208 L) |
|---|---|
| Fuel Tank Capacity | 40 gal (151 L) |
