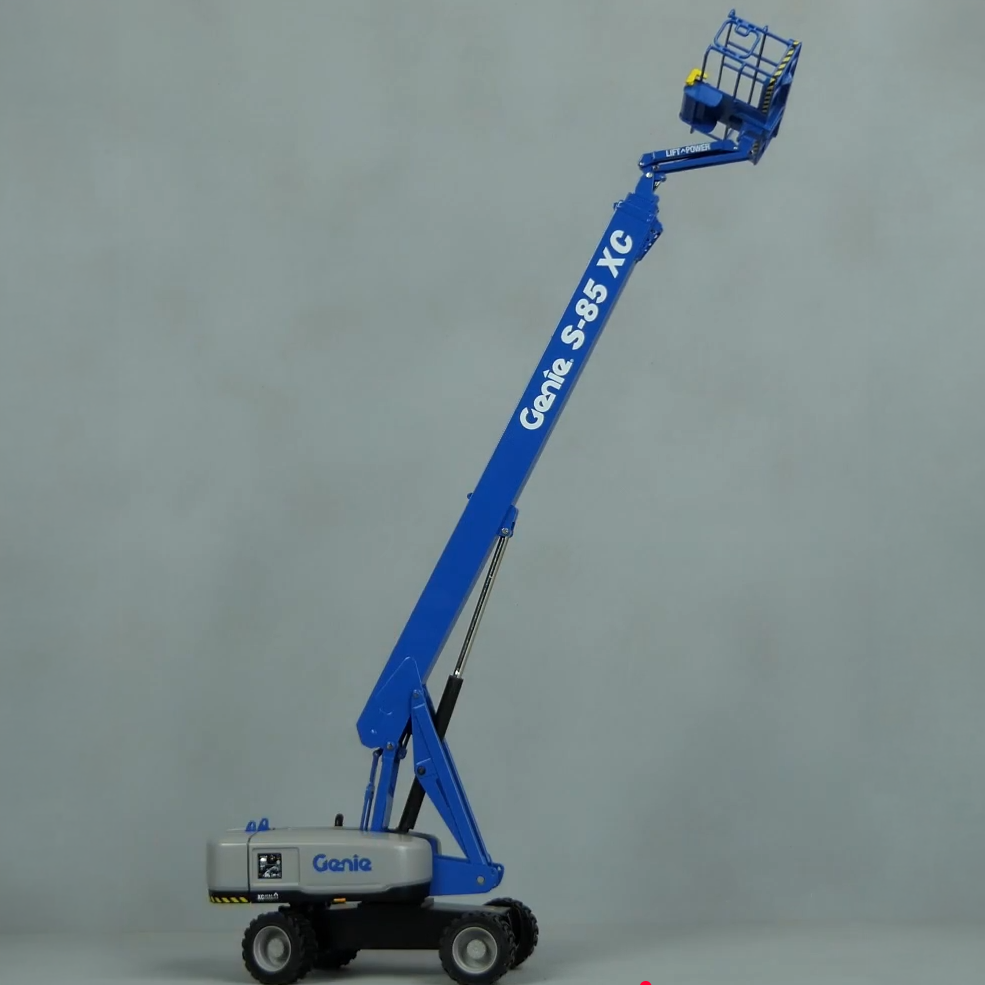

Genie S-85XC Specs
Quick-reference specifications for the Genie S-85XC boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 660 lb300 kg
- Platform height max.
- 85 ft25.91 m
- Working height max.
- 91 ft27.91 m
- Weight
- 39,500 lb17,917 kg
Performance 16 specs
| Working height max. | 91 ft (27.91 m) |
|---|---|
| Horizontal reach max. | 74 ft 6 in (22.71 m) |
| Below ground reach | 8 ft 8 in (2.64 m) |
| Lift capacity max. – unrestricted | 660 lb (300 kg) |
| Lift capacity max. – restricted | 1,000 lb (454 kg) |
| Platform rotation | 160° |
| Vertical jib rotation (up/down) | 133° |
| Turntable rotation | 360° |
| Drive speed – stowed | 3.0 mph (4.8 km/h) |
| Drive speed – raised | 0.5 mph (0.2 m/s) |
| Gradeability – stowed | 45 % |
| Turning radius – inside/outside | 12 ft/21 ft 6 in (3.66 m / 6.55 m) |
| Tires | 18-625 |
| Sound Pressure level (ground workstation) | 85 dBA |
| Sound Pressure level (platform workstation) | 78 dBA |
| Vibrations | < 2.5 m/s² |
Dimensions 10 specs
| Platform height max. | 85 ft (25.91 m) |
|---|---|
| Height – stowed | 9 ft 2 in (2.80 m) |
| Length – stowed | 40 ft 7 in (12.37 m) |
| Length – storage/transport (jib tucked under) | 33 ft 8 in (10.25 m) |
| Width | 8 ft 2 in (2.49 m) |
| Wheelbase | 9 ft 4 in (2.85 m) |
| Ground clearance – center | 15.8 in (0.40 m) |
| Height under counterweight | 3 ft 9 in (1.14 m) |
| Jib length | 5 ft (1.52 m) |
| Turntable tailswing | 5 ft 3 in (1.60 m) |
Weight 3 specs
| Weight | 39,500 lb (17,917 kg) |
|---|---|
| Tire contact pressure | 130 psi (896 kPa) |
| Occupied floor pressure | 395 psf (18.9 kPa) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 40 gal (150 L) |
|---|---|
| Fuel tank capacity | 35 gal (132 L) |
