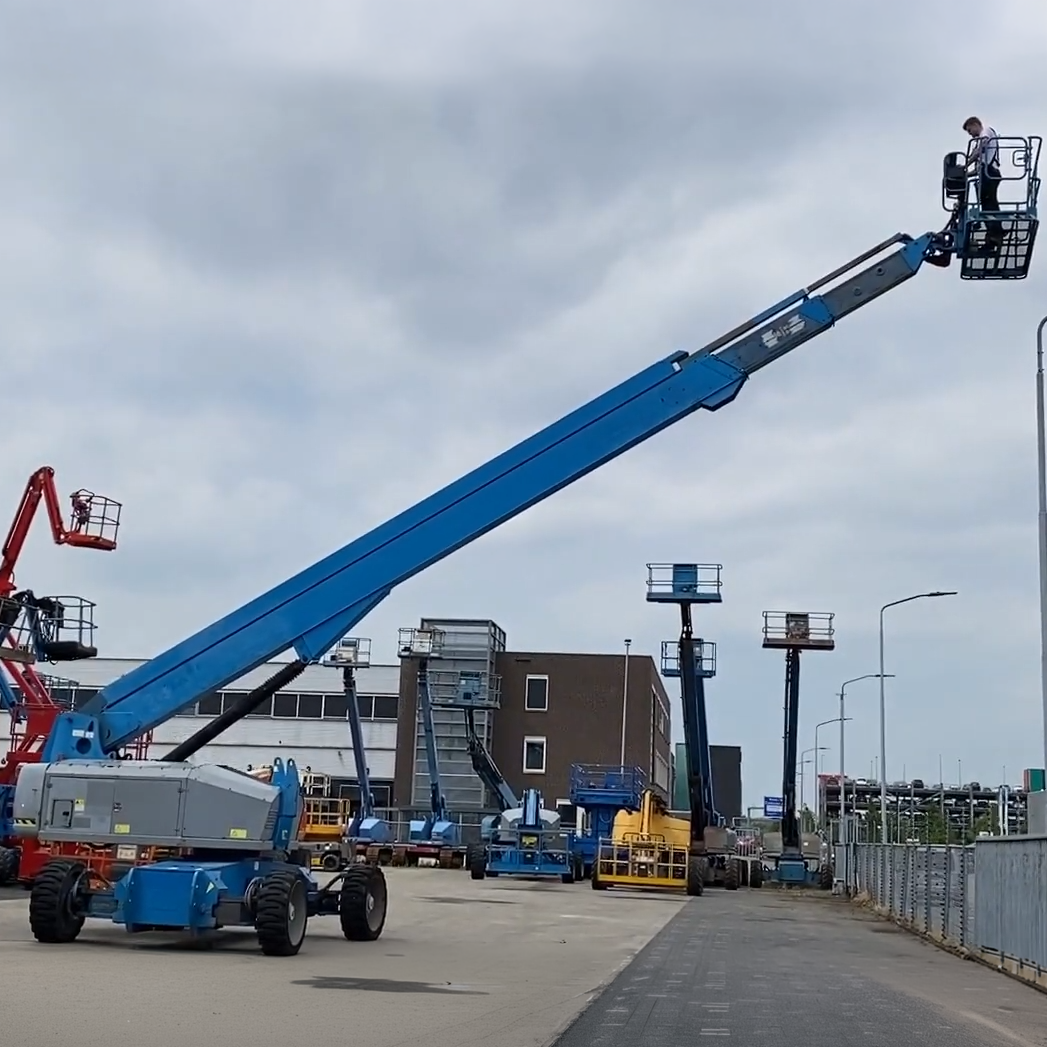

Genie S-100HD Specs
Quick-reference specifications for the Genie S-100HD boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 750 lb340 kg
- Platform height maximum
- 100 ft30.48 m
- Working height maximum
- 106 ft32.48 m
- Gradeability – stowed
- 25%
Performance 16 specs
| Working height maximum | 106 ft (32.48 m) |
|---|---|
| Horizontal reach maximum | 73 ft (22.26 m) |
| Below ground reach | 6 ft 6 in (1.98 m) |
| Lift capacity | 750 lb (340 kg) |
| Platform rotation | 160° |
| Turntable rotation | continuous (360°) |
| Drive speed – stowed | 3 mph (4.8 km/h) |
| Gradeability – stowed | 25% |
| Turning radius 2WD – axle retracted: inside | 36 ft 6 in (11.13 m) |
| Turning radius 2WD – axle extended: inside | 16 ft 10 in (5.13 m) |
| Turning radius 4WD – axle retracted: inside | 13 ft 7 in (4.14 m) |
| Turning radius 4WD – axle extended: inside | 9 ft (2.74 m) |
| Tires – RT solid | 385/65D 22.5 |
| Sound pressure level (ground workstation) | 99 dBA |
| Sound pressure level (platform workstation) | 87 dBA |
| Vibration | <8 ft 2 in/s² (<2.5 m/s²) |
Dimensions 11 specs
| Platform height maximum | 100 ft (30.48 m) |
|---|---|
| Platform length | 2 ft 6 in (0.76 m) |
| Platform width | 5 ft (1.52 m) |
| Height – stowed | 10 ft 3 in (3.13 m) |
| Length – stowed | 43 ft (13.10 m) |
| Width – axles retracted | 8 ft 2 in (2.49 m) |
| Width – axles extended | 11 ft (3.35 m) |
| Wheelbase | 12 ft (3.66 m) |
| Ground clearance – center | 1 ft 5.5 in (0.44 m) |
| Turntable tailswing – axle retracted | 5 ft 6 in (1.68 m) |
| Turntable tailswing – axle extended | 4 ft (1.22 m) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 55 gal (208 L) |
|---|---|
| Fuel tank capacity | 63 gal (240 L) |
