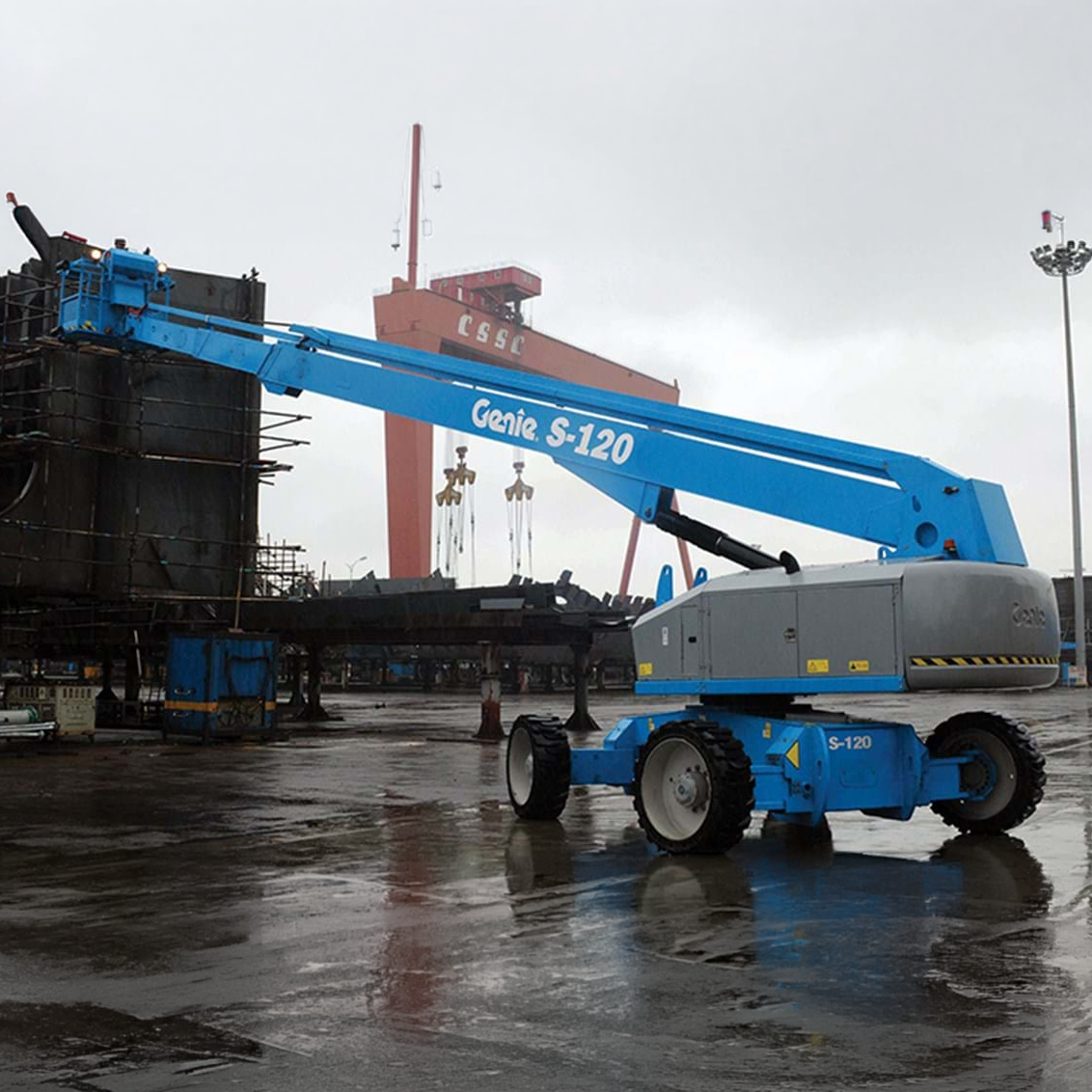

Genie S-120 Specs

Quick-reference specifications for the Genie S-120 boom lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Lift capacity: 750 lb
Platform height maximum: 120 ft
Working height maximum: 126 ft
Gradeability – stowed: 40%

Performance 11 specs

Working height maximum	126 ft
Horizontal reach maximum	75 ft
Below ground reach	6 ft 6 in
Lift capacity	750 lb
Platform rotation	160°
Turntable rotation	360° continuous
Drive speed – stowed	3.0 mph
Gradeability – stowed	40%
Turning radius – axle retracted: inside	13 ft 2 in
Turning radius – axle extended: inside	8 ft 6 in
Tires – RT lug	445/65 D22.5

Dimensions 13 specs

Platform height maximum	120 ft
Platform length – 8 ft model	3 ft
Platform length – 6 ft model	2 ft 6 in
Platform width – 8 ft model	8 ft
Platform width – 6 ft model	6 ft
Height – stowed	10 ft 1 in
Length – stowed	42 ft 8 in
Width – axles retracted	8 ft 1 in
Width – axles extended	11 ft 1 in
Wheelbase	12 ft
Ground clearance – center	1 ft 5 in
Turntable tailswing – axle retracted	5 ft 6 in
Turntable tailswing – axle extended	4 ft 1 in

Hydraulics / Fluids 2 specs

Hydraulic tank capacity	55 gal
Fuel tank capacity	40 gal
