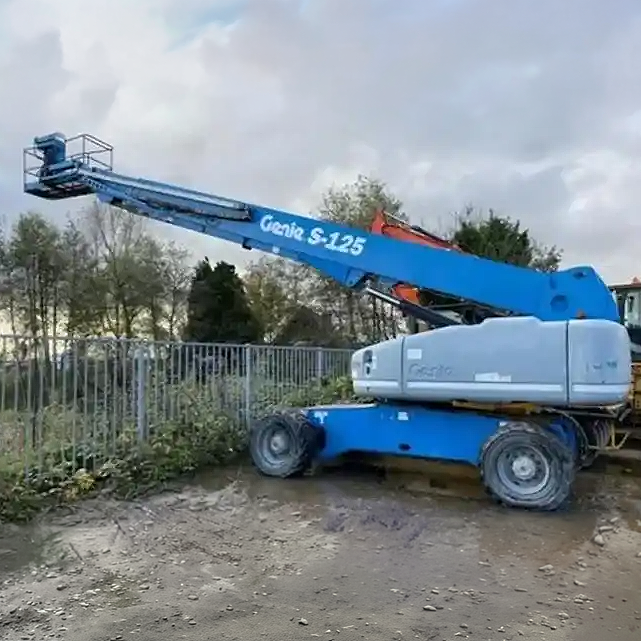

Genie S-125 Specs
Quick-reference specifications for the Genie S-125 boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 500 lb227 kg
- Platform height maximum
- 125 ft 2 in38.15 m
- Working height maximum
- 131 ft 2 in40.15 m
- Gradeability – stowed
- 40%
Performance 14 specs
| Working height maximum | 131 ft 2 in (40.15 m) |
|---|---|
| Horizontal reach maximum | 80 ft (24.38 m) |
| Below ground reach | 10 ft 9 in (3.27 m) |
| Lift capacity | 500 lb (227 kg) |
| Platform rotation | 160° |
| Vertical jib rotation | 135° |
| Turntable rotation | 360° continuous |
| Gradeability – stowed | 40% |
| Turning radius – axle retracted: inside | 13 ft 2 in (4.01 m) |
| Turning radius – axle retracted: outside | 22 ft 2 in (6.75 m) |
| Turning radius – axle extended: inside | 8 ft 6 in (2.59 m) |
| Turning radius – axle extended: outside | 18 ft 10 in (5.74 m) |
| Tires – RT lug | 445/65 D22.5 |
| Tires – RT solid | 445/65 D24 |
Dimensions 10 specs
| Platform height maximum | 125 ft 2 in (38.15 m) |
|---|---|
| Platform length – 8 ft model | 3 ft (0.91 m) |
| Platform length – 6 ft model | 2 ft 6 in (0.76 m) |
| Length – transport (jib tucked under) | 39 ft 11 in (12.17 m) |
| Width – axles retracted | 8 ft 2 in (2.49 m) |
| Width – axles extended | 11 ft (3.35 m) |
| Wheelbase | 12 ft (3.66 m) |
| Ground clearance – center | 1 ft 5.5 in (0.44 m) |
| Turntable tailswing – axle retracted | 5 ft 6 in (1.68 m) |
| Turntable tailswing – axle extended | 4 ft 1 in (1.24 m) |
Power / Engine 1 spec
| Auxiliary power unit | 12 V DC |
|---|
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 55 gal (208 L) |
|---|---|
| Fuel tank capacity | 40 gal (151 L) |
