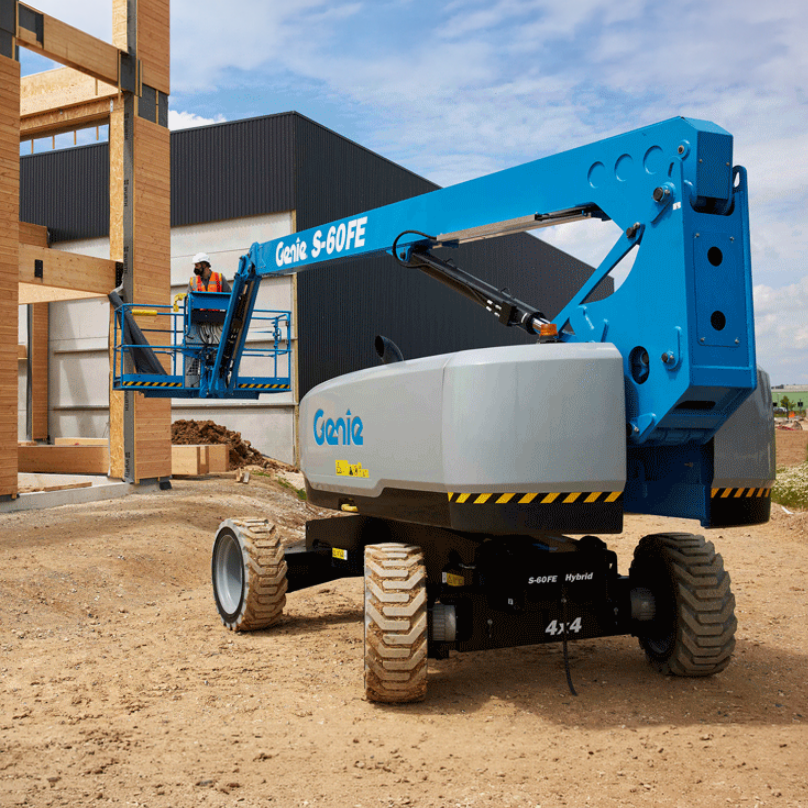

Genie S-60FE/DC Hybrid Specs

Quick-reference specifications for the Genie S-60FE/DC Hybrid boom lift, compiled from published specifications.

Platform Capacity (Unrestricted): 660 lb300 kg
Platform Height (Maximum): 61 ft 2 in18.60 m
Maximum Working Height: 67 ft 2 in20.60 m
Gradeability – Stowed: 45%

Performance 12 specs

Maximum Working Height	67 ft 2 in (20.60 m)
Platform Height (Maximum)	61 ft 2 in (18.60 m)
Maximum Horizontal Reach	40 ft 6 in (12.30 m)
Platform Capacity (Unrestricted)	660 lb (300 kg)
Drive Speed – Stowed	4.0 mph (6.44 km/h)
Drive Speed – Raised	0.68 mph (1.1 km/h)
Gradeability – Stowed	45%
Turntable Rotation	353°
Platform Rotation	160°
Jib Length	6 ft (1.83 m)
Vertical Jib Rotation	130°
Platform Occupants	2

Dimensions 9 specs

Machine Width	8 ft 2 in (2.49 m)
Machine Length – Stowed	31 ft 8 in (9.65 m)
Machine Length – Storage/Transport (Jib Tucked)	23 ft 6 in (7.16 m)
Height – Stowed	8 ft 12 in (2.73 m)
Height – Storage/Transport (Jib Tucked)	9 ft 7 in (2.92 m)
Wheelbase	8 ft 2 in (2.49 m)
Ground Clearance – Center	18.3 in (0.46 m)
Turning Radius – Inside/Outside	10 ft / 17 ft 3 in (3.06 m / 5.25 m)
Tire Size	355 / 55D625

Weight 4 specs

Weight – S-60 DC	17,600 lb (7,983 kg)
Weight – S-60 FE	17,750 lb (8,051 kg)
Tire Contact Pressure	73 psi (500 kPa)
Occupied Floor Pressure	203 psf (9.74 kPa)

Power / Engine 5 specs

Drive System	48 V 3-Phase AC
Battery Pack – DC	48 V DC (8 × 6 V), 390 Ah, FLA
Battery Pack – FE	48 V DC (8 × 6 V), 370 Ah, AGM
Auxiliary Power Unit – FE	12 V DC
Engine Power – FE	25.2 hp (18.8 kW)

Hydraulics / Fluids 7 specs

Hydraulic Tank Capacity	18 gal (68 L)
Fuel Tank Capacity	17 gal (64 L)
Sound Pressure Level – Ground (DC)	70 dBA
Sound Pressure Level – Ground (FE)	83 dBA
Sound Pressure Level – Platform (DC)	70 dBA
Sound Pressure Level – Platform (FE)	76 dBA
Vibration	1.11 ft/s² (0.34 m/s²)
