Boom Lift · Genie

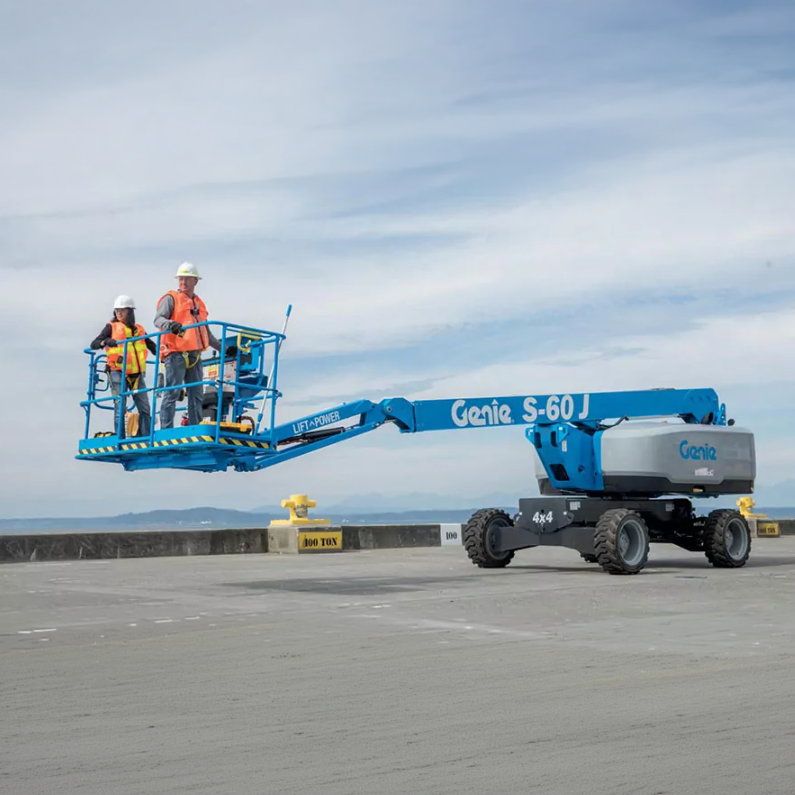

Genie S-60J Specs
Quick-reference specifications for the Genie S-60J boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 660 lb300 kg
- Platform height max.
- 60 ft 10 in18.50 m
- Working height max.
- 66 ft 10 in20.50 m
- Gradeability – stowed
- 45 %
Performance 14 specs
| Working height max. | 66 ft 10 in (20.50 m) |
|---|---|
| Horizontal reach max. | 40 ft 6 in (12.30 m) |
| Lift capacity max. – unrestricted | 660 lb (300 kg) |
| Number of Platform Occupants | 2 |
| Platform rotation | 160° |
| Vertical jib rotation (up/down) | 130° |
| Turntable rotation | 353° |
| Drive speed – stowed (tires) | 3 mph (4.82 km/h) |
| Drive speed – raised (tires) | 0.68 mph (1.1 km/h) |
| Gradeability – stowed | 45 % |
| Turning radius – inside/outside (tires) | 8 ft 1 in / 18 ft 5 in (2.46 m / 5.61 m) |
| Sound Pressure level (ground workstation) | 83 dBA |
| Sound Pressure level (platform workstation) | 77 dBA |
| Vibrations | < 2.5 (m/s²) |
Dimensions 9 specs
| Platform height max. | 60 ft 10 in (18.50 m) |
|---|---|
| Height – stowed (tires) | 8 ft 10 in (2.69 m) |
| Length – stowed (tires) | 31 ft 10 in (9.70 m) |
| Length – storage/transport (jib tucked under) | 23 ft 6 in (7.16 m) |
| Width (tires) | 8 ft 2 in (2.49 m) |
| Wheelbase | 8 ft (2.44 m) |
| Ground clearance – center (tires) | 1 ft 10 in (0.56 m) |
| Height under counterweight | 3 ft 4 in (1.02 m) |
| Turntable tailswing | 5 ft 2 in (1.57 m) |
Weight 3 specs
| Weight (tires) | 16,650 lb (7,550 kg) |
|---|---|
| Tire contact pressure | 85 psi (585 kPa) |
| Occupied floor pressure (tires) | 215 psf (10.28 kPa) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 21 gal (79 L) |
|---|---|
| Fuel tank capacity | 30 gal (114 L) |
