Boom Lift · Genie

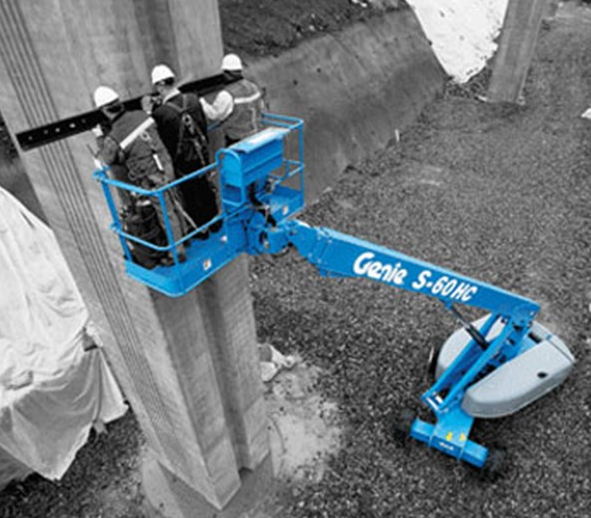

Genie S-60HC Specs
Quick-reference specifications for the Genie S-60HC boom lift, taken from the manufacturer’s spec sheet.
- Platform height maximum
- 60 ft18.30 m
- Working height maximum
- 66 ft20.30 m
- Gradeability – 2WD stowed
- 30%
Performance 12 specs
| Working height maximum | 66 ft (20.30 m) |
|---|---|
| Below ground reach | 5 ft 7 in (1.70 m) |
| Platform rotation | 160° |
| Turntable rotation | 360° continuous |
| Drive speed – 2WD stowed | 4.0 mph (6.4 km/h) |
| Drive speed – 4WD stowed | 3.0 mph (4.8 km/h) |
| Drive speed – raised or extended | 0.68 mph (1.1 km/h) |
| Gradeability – 2WD stowed | 30% |
| Gradeability – 4WD stowed | 45% |
| Turning radius – inside | 7 ft 9 in (2.36 m) |
| Turning radius – outside | 18 ft 2 in (5.54 m) |
| Tires – RT Lug | 355/55D 625 |
Dimensions 11 specs
| Platform height maximum | 60 ft (18.30 m) |
|---|---|
| Platform length – 8 ft model | 3 ft (.91 m) |
| Platform length – 6 ft model | 2 ft 6 in (.76 m) |
| Platform width – 8 ft model | 8 ft (2.44 m) |
| Platform width – 6 ft model | 6 ft (1.83 m) |
| Height – stowed | 8 ft 11 in (2.72 m) |
| Length – stowed | 27 ft 11 in (8.51 m) |
| Width | 8 ft 2 in (2.49 m) |
| Wheelbase | 8 ft 2.5 in (2.50 m) |
| Ground clearance – center | 1 ft 2.5 in (.37 m) |
| Turntable tailswing | 4 ft (1.22 m) |
Power / Engine 2 specs
| Ford DSG-423 4 cylinder gas/LPG | 75 hp (56 kW) |
|---|---|
| Deutz D2011L03i 3 cylinder diesel | 48 hp (35.8 kW) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 45 gal (170 L) |
|---|---|
| Fuel tank capacity | 35 gal (132 L) |
