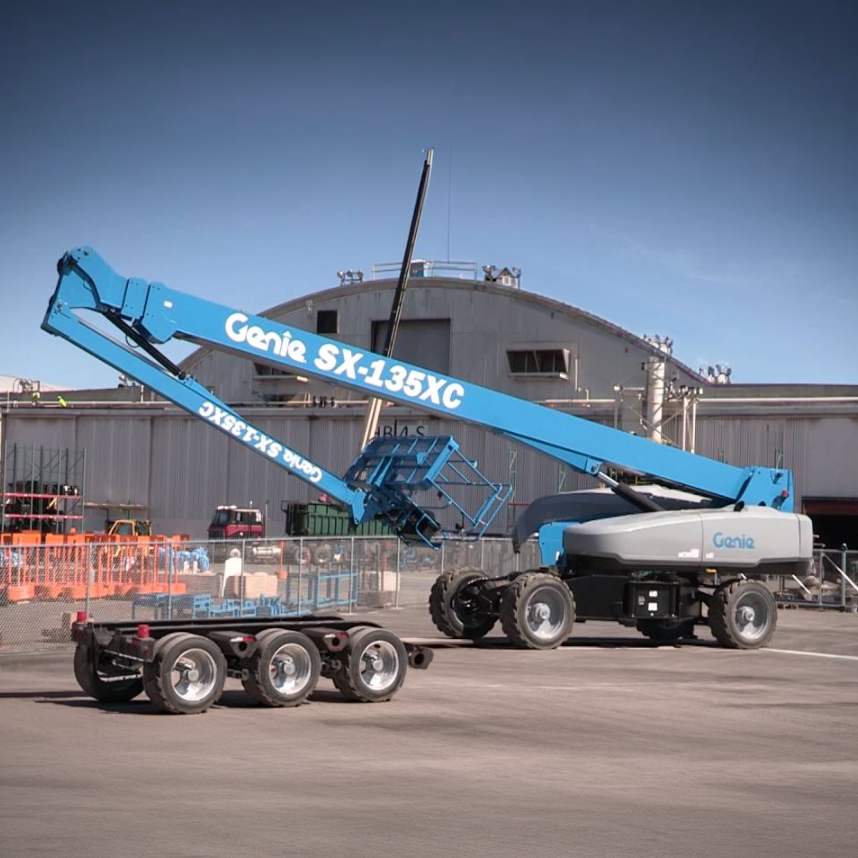

Genie SX-135XC Specs
Quick-reference specifications for the Genie SX-135XC boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 660 lb300 kg
- Platform height max.
- 135 ft41.15 m
- Working height max.
- 141 ft43.15 m
- Weight
- 47,500 lb21,546 kg
Performance 16 specs
| Working height max. | 141 ft (43.15 m) |
|---|---|
| Horizontal reach max. | 90 ft (27.43 m) |
| Below ground reach | 19 ft 8 in (6.00 m) |
| Lift capacity max. – unrestricted | 660 lb (300 kg) |
| Lift capacity max. – restricted | 1,000 lb (454 kg) |
| Platform rotation | 160° |
| Vertical jib rotation (up/down) | 130° |
| Turntable rotation | 360° |
| Drive speed – stowed | 2.7 mph (4.3 km/h) |
| Drive speed – raised | 0.4 mph (0.65 km/h) |
| Gradeability – stowed | 35 % |
| Turning radius – inside/outside (axle retracted) | 26 ft 4 in / 32 ft 8 in (8.03 m / 9.96 m) |
| Turning radius – inside/outside (axle extended) | 9 ft 6 in / 20 ft 3 in (2.90 m / 6.17 m) |
| Sound Pressure level (ground workstation) | 91 dBA |
| Sound Pressure level (platform workstation) | 75 dBA |
| Vibrations | < 2.5 (m/s²) |
Dimensions 15 specs
| Platform height max. | 135 ft (41.15 m) |
|---|---|
| Platform length | 3 ft (0.91 m) |
| Platform width | 8 ft (2.44 m) |
| Height – stowed | 10 ft (3.05 m) |
| Length – stowed | 64 ft 10 in (19.76 m) |
| Length – storage/transport (jib tucked under) | 43 ft 7 in (13.28 m) |
| Width (axles retracted) | 8 ft 2 in (2.49 m) |
| Width (axles extended) | 12 ft 11 in (3.94 m) |
| Wheelbase (axles retracted) | 13 ft 6 in (4.11 m) |
| Wheelbase (axles extended) | 13 ft 6 in (4.11 m) |
| Ground clearance – center | 15 in (0.38 m) |
| Height under counterweight | 4 ft 1 in (1.24 m) |
| Jib length | 18 / 30 ft (5.48 / 9.14 m) |
| Turntable tailswing (axles retracted) | 3 ft 9 in (1.14 m) |
| Turntable tailswing (axles extended) | 5 ft 7 in (1.70 m) |
Weight 3 specs
| Weight | 47,500 lb (21,546 kg) |
|---|---|
| Tire contact pressure | 130 psi (896 kPa) |
| Occupied floor pressure, axles retracted/ extended | 351 psf/ 222 psf (16.79 kPa/ 10.62 kPa) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 60 gal (227 L) |
|---|---|
| Fuel tank capacity | 40 gal (151 L) |
