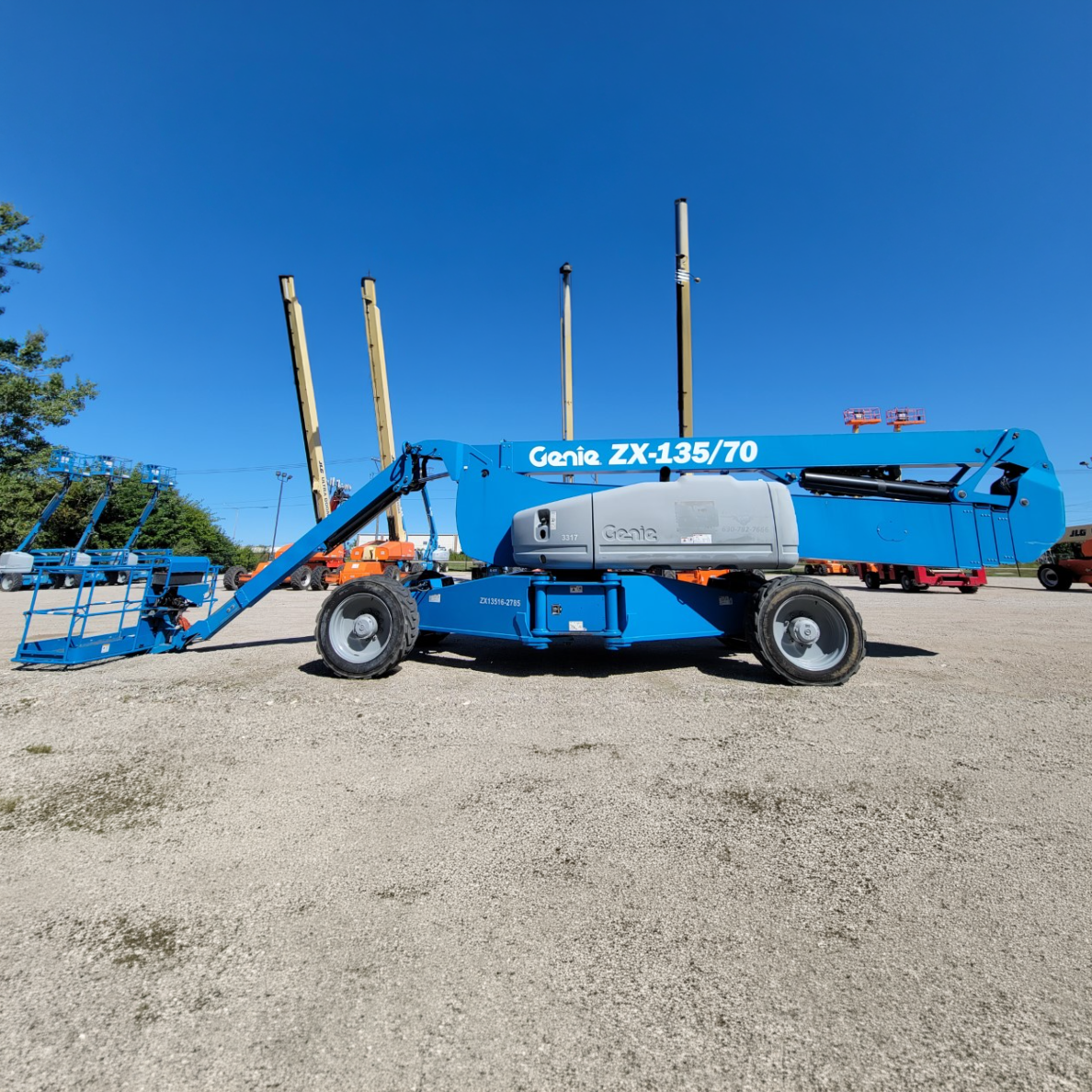

Genie ZX-135/70 Specs
Quick-reference specifications for the Genie ZX-135/70 boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 600 lb272 kg
- Platform height max.
- 135 ft41.15 m
- Working height max.
- 141 ft43.15 m
- Gradeability – stowed
- 45 %
Performance 16 specs
| Working height max. | 141 ft (43.15 m) |
|---|---|
| Horizontal reach max. – riser extended | 59 ft 2 in (18.03 m) |
| Horizontal reach max. – riser retracted | 69 ft 9 in (21.26 m) |
| Below ground reach | 19 ft 3 in (5.87 m) |
| Lift capacity max. – unrestricted | 600 lb (272 kg) |
| Platform rotation | 160° |
| Vertical jib rotation | 110° |
| Turntable rotation | 360° |
| Drive speed – stowed (tires) | 3.0 mph (4.8 km/h) |
| Drive speed – raised (tires) | 0.68 mph (1.1 km/h) |
| Gradeability – stowed | 45 % |
| Turning radius – inside/outside (axle retracted) | 26 ft 4 in / 32 ft 8 in (8.03 m / 9.96 m) |
| Turning radius – inside/outside (axle extended) | 9 ft 6 in / 20 ft 3 in (2.90 m / 6.17 m) |
| Sound Pressure level (ground workstation) | 85 dBA |
| Sound Pressure level (platform workstation) | 74 dBA |
| Vibrations | 8 ft 2 in/s² (2.5 m/s²) |
Dimensions 13 specs
| Platform height max. | 135 ft (41.15 m) |
|---|---|
| Up and over clearance max. – riser extended | 75 ft 6 in (23.01 m) |
| Up and over clearance max. – riser retracted | 32 ft 6 in (9.91 m) |
| Platform length | 3 ft/2 ft 6 in (0.91 m / 0.76 m) |
| Platform width | 8 ft/6 ft (2.44 m / 1.83 m) |
| Height – stowed (tires) | 10 ft 1.5 in (3.09 m) |
| Length – stowed (tires) | 42 ft 5 in (12.93 m) |
| Width (axles retracted) | 8 ft 2 in (2.49 m) |
| Width (axles extended) | 12 ft 11 in (3.94 m) |
| Wheelbase (axles retracted) | 13 ft 6 in (4.11 m) |
| Wheelbase (axles extended) | 13 ft 6 in (4.11 m) |
| Ground clearance – center (tires) | 1 ft 3 in (0.38 m) |
| Jib boom length | 12 / 20 ft (3.66 / 6.10 m) |
Weight 3 specs
| Weight (tires) | 46,500 lb (21,092 kg) |
|---|---|
| Tire contact pressure | 130 psi (896 kPa) |
| Occupied floor pressure (tires) | 209 psf (9.99 kPa) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 65 gal (246.1 L) |
|---|---|
| Fuel tank capacity | 40 gal (151 L) |
