Boom Lift · Genie

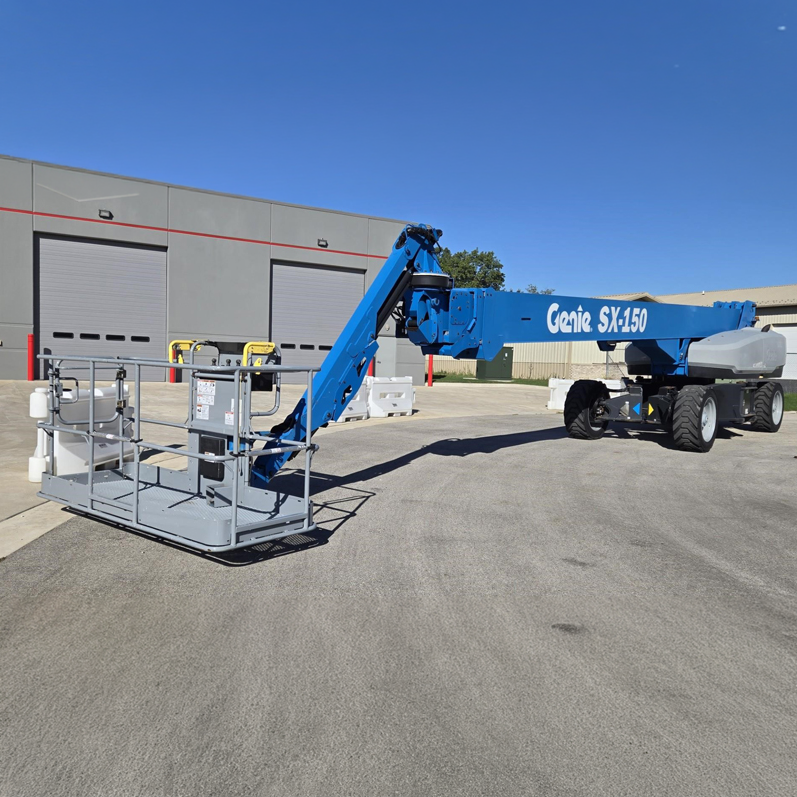

Genie SX-150 Specs
Quick-reference specifications for the Genie SX-150 boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 750 lb340 kg
- Platform height max.
- 152 ft46.33 m
- Working height max.
- 158 ft48.33 m
- Gradeability – stowed
- 35 %
Performance 16 specs
| Working height max. | 158 ft (48.33 m) |
|---|---|
| Horizontal reach max. | 80 ft (24.38 m) |
| Below ground reach | 2 ft (0.61 m) |
| Lift capacity max. – unrestricted | 750 lb (340 kg) |
| Platform rotation | 160° |
| Vertical jib rotation (up/down) | 135° |
| Horizontal jib rotation | 60° |
| Turntable rotation | 360° |
| Drive speed – stowed (tires) | 2.3 mph (3.7 km/h) |
| Drive speed – raised (tires) | 0.4 mph (0.65 km/h) |
| Gradeability – stowed | 35 % |
| Turning radius – inside/outside (axle retracted) | 20 ft 7 in / 28 ft 1 in (6.28 m / 8.56 m) |
| Turning radius – inside/outside (axle extended) | 9 ft 11 in / 24 ft 1 in (3.02 m / 7.34 m) |
| Sound Pressure level (ground workstation) | 91 dBA |
| Sound Pressure level (platform workstation) | 75 dBA |
| Vibrations | < 2.5 (m/s²) |
Dimensions 16 specs
| Platform height max. | 152 ft (46.33 m) |
|---|---|
| Platform length | 3 ft (0.91 m) |
| Platform width | 8 ft (2.44 m) |
| Height – stowed (tires) | 10 ft (3.05 m) |
| Length – stowed (tires) | 53 ft 1 in (16.18 m) |
| Length – storage/transport (jib tucked under) | 42 ft 8 in (13 m) |
| Width (axles retracted) | 8 ft 2 in (2.49 m) |
| Width (axles extended) | 16 ft 6 in (5.03 m) |
| Wheelbase (axles retracted) | 16 ft 6 in (5.03 m) |
| Wheelbase (axles extended) | 15 ft 6 in (4.72 m) |
| Ground clearance – center (tires) | 1 ft 3 in (0.38 m) |
| Height under counterweight | 4 ft 1 in (1.24 m) |
| Number of Platform Occupants | 2 |
| Jib length | 10 ft (3.05 m) |
| Turntable tailswing (axles retracted) | 3 ft 9 in (1.14 m) |
| Turntable tailswing (axles extended) | 3 ft 6 in (1.07 m) |
Weight 3 specs
| Weight (tires) | 49,950 lb (22,657 kg) |
|---|---|
| Tire contact pressure | 130 psi (896 kPa) |
| Occupied floor pressure, axles retracted/ extended (tires) | 306 psf/ 159 psf (14,65 kPa/ 7,63 kPa) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 110 gal (416 L) |
|---|---|
| Fuel tank capacity | 50 gal (189 L) |
