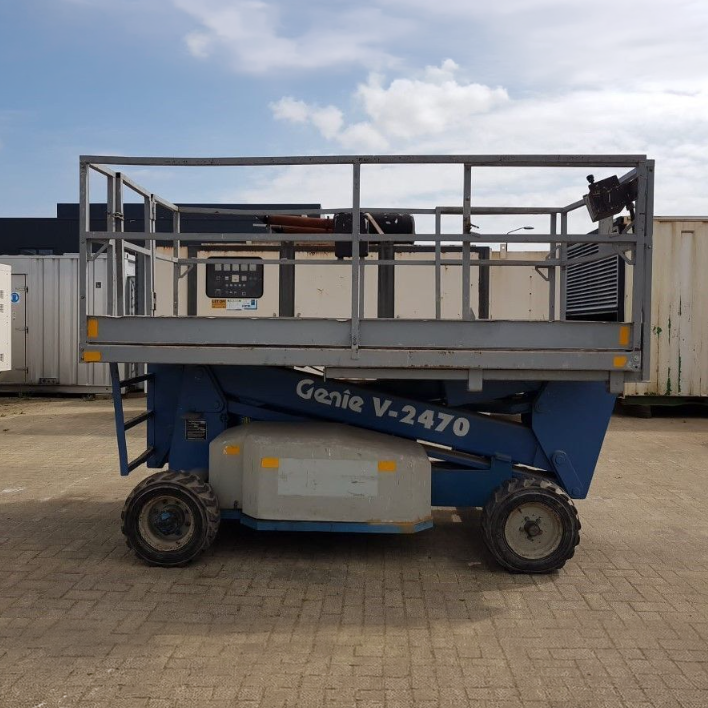

Genie V-2470 Specs

Quick-reference specifications for the Genie V-2470 scissor lift, compiled from published specifications.

Capacity (Net Load): 1,213 lb550 kg
Working Height: 31 ft 2 in9.5 m

Performance 3 specs

Working Height	31 ft 2 in (9.5 m)
Capacity (Net Load)	1,213 lb (550 kg)
Max Occupancy	4 persons

Dimensions 5 specs

Platform Length	11 ft 0 in (3.35 m)
Platform Width	6 ft 2 in (1.88 m)
Length – Stowed	11 ft 0 in
Width – Stowed	5 ft 8 in
Height – Stowed	7 ft 9 in

Weight 1 spec

Stowed Weight	5,400 lb
