Boom Lift · Genie

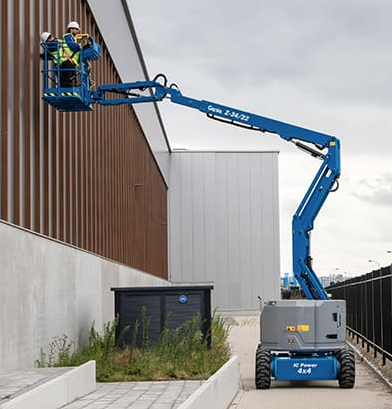

Genie Z-34/22 Bi-Energy Specs
Quick-reference specifications for the Genie Z-34/22 Bi-Energy boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 500 lb227 kg
- Platform height maximum
- 34 ft 6 in10.52 m
- Working height maximum
- 40 ft 6 in12.52 m
- Gradeability – stowed
- 30%
Performance 12 specs
| Working height maximum | 40 ft 6 in (12.52 m) |
|---|---|
| Horizontal reach maximum | 22 ft 3 in (6.78 m) |
| Lift capacity | 500 lb (227 kg) |
| Platform rotation | 180° |
| Vertical jib rotation | 139° |
| Turntable rotation | 355° non-continuous |
| Drive speed – raised | 68 mph (1.1 km/h) |
| Gradeability – stowed | 30% |
| Turning radius – inside | 5 ft 9 in (1.75 m) |
| Turning radius – outside | 13 ft 1 in (4 m) |
| Tires – air filled | 9 x 14.5 in |
| Reduces platform weight capacity | 440 lb |
Dimensions 11 specs
| Platform height maximum | 34 ft 6 in (10.52 m) |
|---|---|
| Up and over clearance maximum | 15 ft (4.57 m) |
| Platform length | 2 ft 6 in (0.76 m) |
| Platform width | 4 ft 8 in (1.42 m) |
| Height – stowed | 6 ft 7 in (2.00 m) |
| Length – stowed | 18 ft 6 in (5.64 m) |
| Storage height | 7 ft 5 in (2.26 m) |
| Storage length | 13 ft 5 in (4.08 m) |
| Width | 5 ft 8 in (1.73 m) |
| Wheelbase | 6 ft 2 in (1.88 m) |
| Ground clearance – center | 6 in (0.15 m) |
Hydraulics / Fluids 2 specs
| Hydraulic Tank Capacity | 4 gal (15.1 L) |
|---|---|
| Fuel Tank Capacity | 9.3 gal (35.2 L) |
